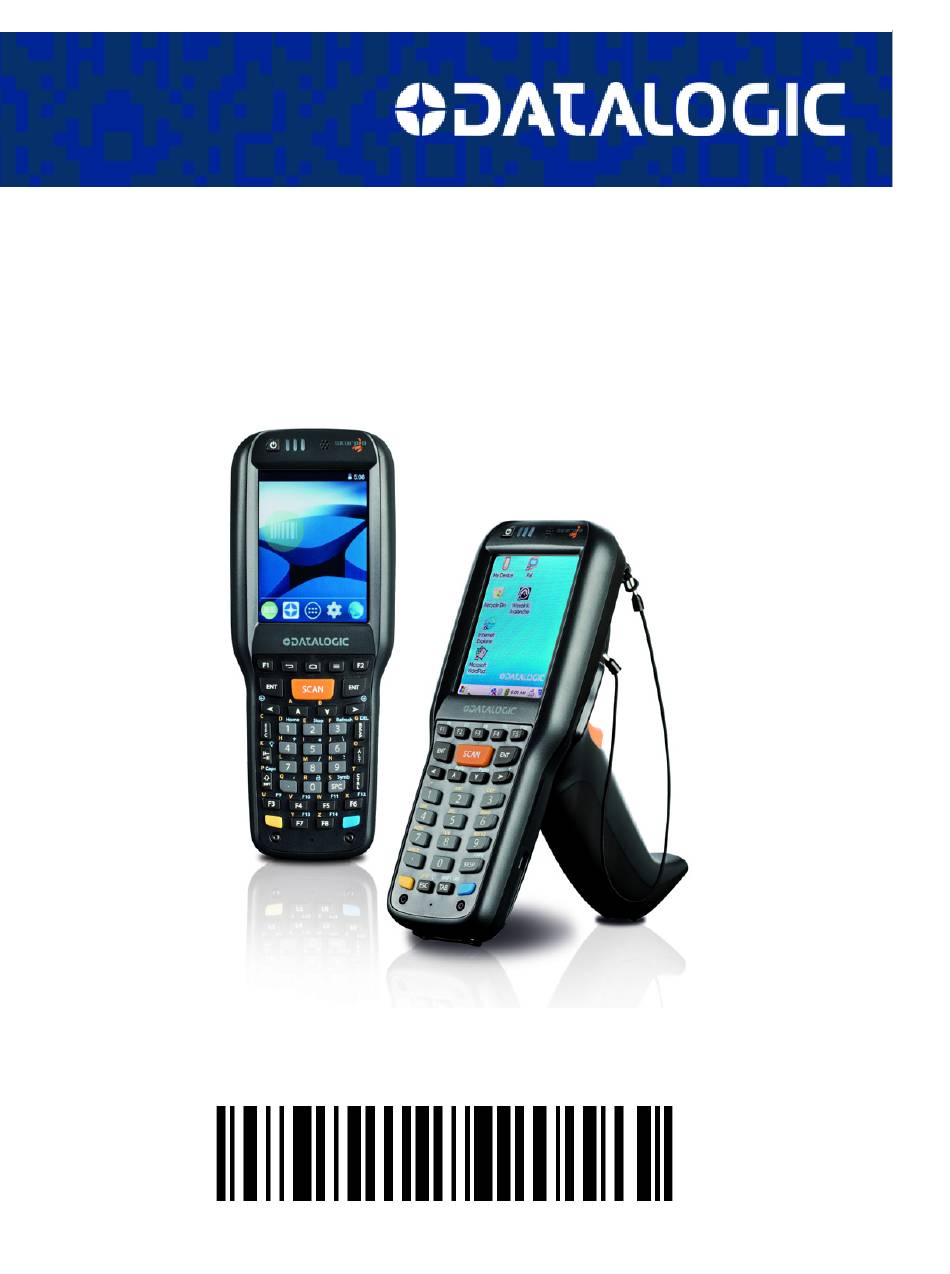

- Page 1 Skorpio™ X4 Rugged Mobile Computer with 1D/2D Imager Quick Start Guide 822002272 (Rev. A) May 2018...
-
Page 2: General View
Out of the Box The Skorpio X4 package contains: • Skorpio X4 mobile computer • Rechargeable battery pack • Terminal emulation overlay • Belt clip (handheld models only) • Belt clip pivot (handheld models only) • Hand-strap • Lanyard (for pistol grip models only) •... - Page 3 Keypads Full-alphanumeric Keypad (50 Keys) Windows Embedded Compact 7 Android™ Alphanumeric Keypad (38 Keys) Windows Embedded Compact 7 Android™ Numeric Keypad (28 Keys) Windows Embedded Compact 7 Android™ Functional Keypad (28 Keys) *. Only available on Windows Embedded Compact 7 special configurations.
-
Page 4: Battery Installation
USB cable or with the single dock. Charge with USB You can use a standard micro USB to USB cable in conjunction with a power supply adapter to charge the Skorpio X4 from a power outlet. Use only a Datalogic approved power supply. NOTE Don’t insert the wall charger into the micro USB port when the... -
Page 5: Sd Card Installation
SD Card Installation 1. Turn off the Skorpio X4 (press the power key and waiting for device poweroff). 2. Pull the battery latch down and remove the battery pack: 3. Shift the cardholder upwards and then pull it up: 4. Insert the microSD card with the written part upward: 5. -
Page 6: Imager Data Capture
Scanning and Imaging 1D Imager Data Capture 2D Imager Data Capture Aiming System Pattern Linear Bar Code The following information applies to Laser Aiming System, used on Skorpio X4 variants with 2D Imager:... - Page 7 RS232 either directly or through the Single Dock • Bluetooth® To establish a partnership between the Skorpio X4 and a host PC, start Windows Mobile® Device Center and follow the steps below: 1. Connect the Skorpio X4 to the host PC. Windows Mobile® Device Cen- ter configures itself and then opens.
-
Page 8: Reference Documentation
Reference Documentation For further information regarding Skorpio X4 refer to the SDK Help on-line and to the Skorpio X4 User’s Manual, downloadable from our website www.datalogic.com. Support Through the Website Datalogic provides several services as well as technical support through its website. - Page 9 See the Safety & Regulatory Addendum included with your product for additional regulatory, safety and legal information. ©2017-2018 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.
