MICRO-EPSILON IF2030/ENETIP Assembly Instructions Manual

Hide thumbs Also See for IF2030/ENETIP:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Intended Use

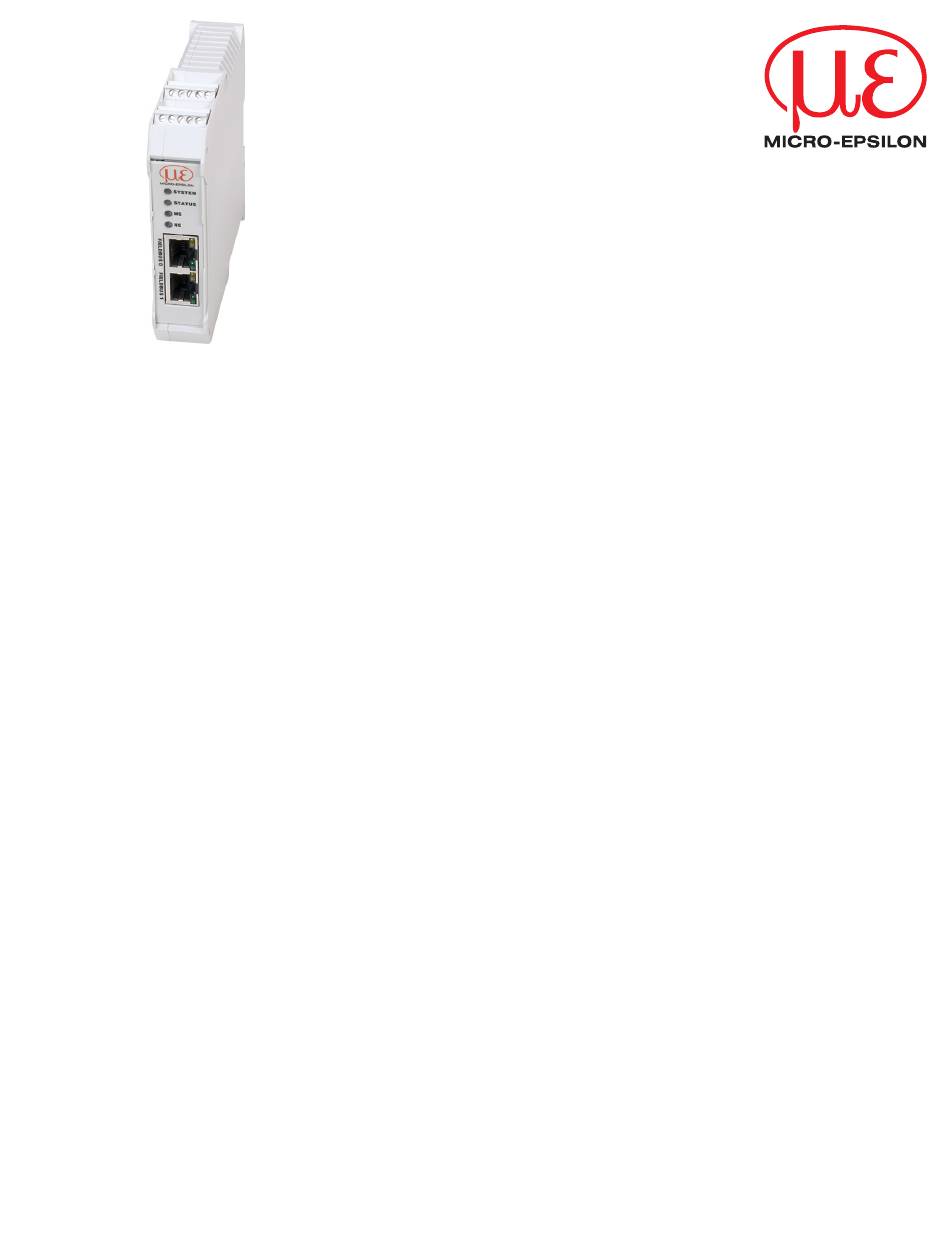

The IF2030/ENETIP interface module is designed for use in industrial and laboratory applications. It
is used to convert the internal MICRO-EPSILON sensor protocol (RS485, RS422) to EtherNet/IP .
The interface module must only be operated within the limits specified in the technical data. The in-
terface module must be used in such a way that no persons are endangered or machines and other
material goods are damaged in the event of malfunction or total failure of the sensor/controller. Take
additional precautions for safety and damage prevention in case of safety-related applications.
Warnings
Connect the power supply and the display/output device according to the safety regulations for
electrical equipment.
> Risk of injury
> Damage to or destruction of the interface module
The supply voltage must not exceed the specified limits.
> Damage to or destruction of the interface module
Avoid shocks and impacts to the interface module.
> Damage to or destruction of the interface module
Proper Environment
Protection class:
Operating temperature: 0 ... +50 °C (+32 ... +122 °F)
Storage temperature:
Humidity:
Ambient pressure:
IP 20
-20 ... +70 °C (-4 ... 158 °F)
5 - 95% (non-condensing)
Atmospheric pressure
Assembly Instructions
IF2030/ENETIP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IF2030/ENETIP and is the answer not in the manual?

Questions and answers

Related Manuals for MICRO-EPSILON IF2030/ENETIP

Summary of Contents for MICRO-EPSILON IF2030/ENETIP

  • Page 1 IF2030/ENETIP Intended Use The IF2030/ENETIP interface module is designed for use in industrial and laboratory applications. It is used to convert the internal MICRO-EPSILON sensor protocol (RS485, RS422) to EtherNet/IP . The interface module must only be operated within the limits specified in the technical data. The in- terface module must be used in such a way that no persons are endangered or machines and other material goods are damaged in the event of malfunction or total failure of the sensor/controller.
  • Page 2 Installation and Assembly Ensure careful handling during installation and operation. +0,35 22.6 +0,6 -0,3 -0,4 (.89) (4.21) 113.7 (4.48) Pin Assignment...

  • Page 3: Supply Voltage

    230 VAC Cable Termination at Interface Ensure correct cable termination for an RS485 bus or RS422 bus! The IF2030/ENETIP works as a master for both interfaces; internally, a 120 Ohm terminating resistor has already been permanently incorporated. The IF2030/ENETIP should be at the bus start.

  • Page 4: Connection Options

    ILD2300 MSC7602 PC/SC2520-x ODC2520 MSC7602 Connector kit The length of the cable between IF2030/ENETIP RS422 and sensor/controller is 10 m at most. Because IF2030/ENETIP Sensor/Controller of the PCx/8-M12 cable, the sensor supply for ACC5703 and INC5701 sensors is possible only via the IF2030/ENETIP .
  • Page 5 230 VAC Cable Termination at Interface Ensure correct cable termination for an RS485 bus or RS422 bus! The IF2030/ENETIP works as a master for both interfaces; internally, a 120 Ohm terminating resistor has already been permanently incorporated. The IF2030/ENETIP should be at the bus start.

  • Page 6: Data Format

    Micro-Epsilon recommends selecting the corresponding sensor interface via the web interface of the sensor (controller). Baud Rate There is no automatic baud rate matching between IF2030/ENETIP and the connected sensor (con- troller). MICRO-EPSILON recommends selecting the corresponding baud rate via the web interface of the sensor (controller).
  • Page 7 Baud Rate and Sensor Interface Option 1: MSG Command An MSG command is configured as follows: Click the button Click the Configuration tab and set type CIP Generic as Message Type. The following Service Types are possible: - Get Attribute Single or - Set Attribute Single.

  • Page 8: Option 2: External Software

    Option 2: External Software IF2030/ENETIP can also be configured beyond the PLC (e. g., with a software tool) by using EtherNet/IP Explicit Messaging. The software used for this purpose must support the following services: - 0x0E - Get Attribute Single as well as - 0x10 - Set Attribute Single.
