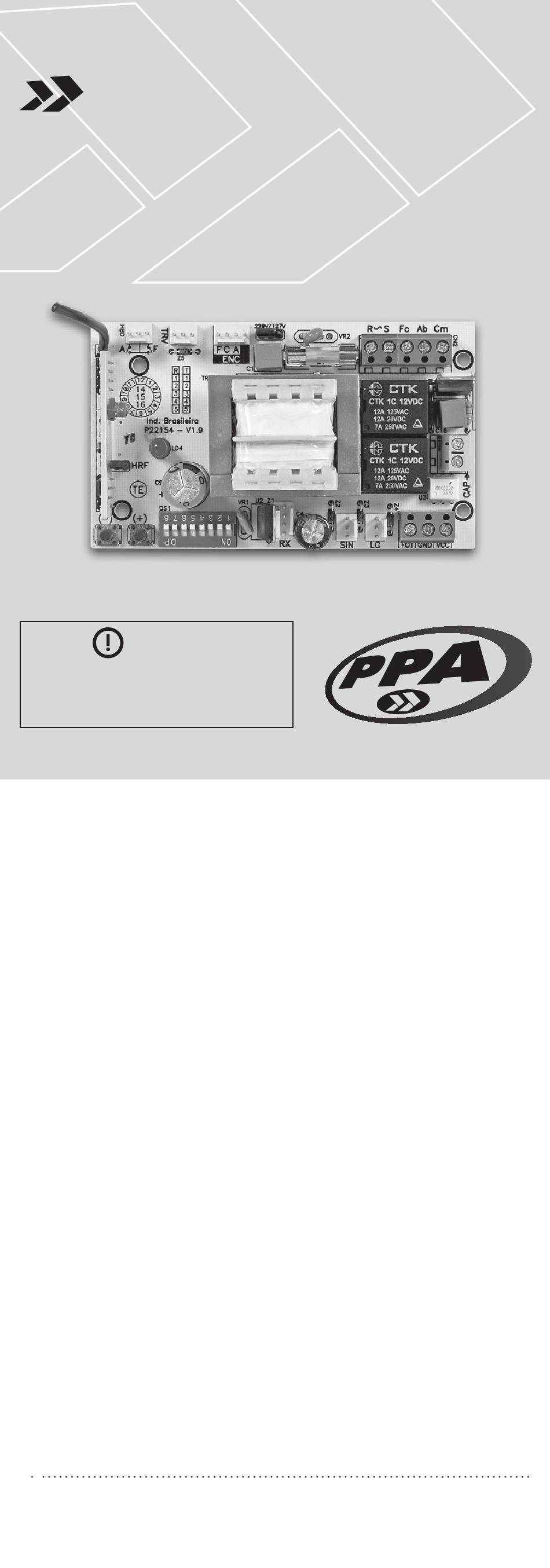

PPA FACILITY TOP Technical Manual

FACILITY TOP
ECU
TECHNICAL MANUAL
WARNING
Do not use the equipment
without referring
manual first.
P05629 - 11/2021
Rev. 6
1. MAIN FEATURES
• It can be used with either digital end-of-stroke (encoder hall) or magnetic-
end-of-stroke (analog).
• RF 433.92 Mhz Receiver Module
• Code learning – up to 160 different and button-independent remote controls.
• Inputs:
- Photocell.
- Loose RF Receiver Module.
- RS-485 Serial Module.
• Outputs:
- Traffic Light Module.
- Electronic lock module.
- Courtesy light module.
• Control of the motor:
- Soft start.
- Electronic clutch.
- Electronic brake.
- Torque control.
• Opening delay timing (used in conjunction with a traffic light).
2. SN LED FUNCTIONS
This procedure will reset the memory (erases old information / prepares the memory
to receive new remote controls).
• Flashes once (60-Hz power source).
• Flashes twice (50-Hz power source).
• Flashes normally* 3 times (Opening cycle).
• Flashes normally* 4 times (Closing cycle).
• Flashes inversely** 3 times (Opening cycle with encoder failure).
• Flashes inversely** 4 times (Closing cycle with encoder failure).
• Flashes normally* 5 times (Gate path reset).
• Flashes in 'clock mode' every one second (counting the time for automatic
closing).
• Continuously lit (photocell input activated).
* Flashes normally: LED normally off, goes on for 100 milliseconds. This cycle repeats itself every 2
seconds.
** Flashes inversely: LED normally on, goes off for 100 milliseconds. This cycle repeats itself every 2
seconds.
