Yamaha RX-A3060 Easy Setup Manual
Hide thumbs
Also See for RX-A3060:
- Quick start manual ,
- Owner's manual (230 pages) ,
- Firmware update manual (7 pages)
Advertisement
Quick Links
AV Receiver/Receptor AV
Easy Setup Guide/Guía de configuración sencilla
RX-A3060/RX-A2060
RBGL
1
2
4
E
0.5 to 1 m
De 0,5 a 1 m
1
1.8 m
1,8 m
9
6
Manual Development Department
0.5 to 1 m
De 0,5 a 1 m
2
3
10° to 30°
10° à 30°
0.3 m or more
0,3 m ou plus
EN
© 2016 Yamaha Corporation
Published 05/2016 KS-A0
Printed in Malaysia
ZU72410
*
R
1.8 m
1,8 m
5
7
ES
Advertisement
Related Manuals for Yamaha RX-A3060
Summary of Contents for Yamaha RX-A3060

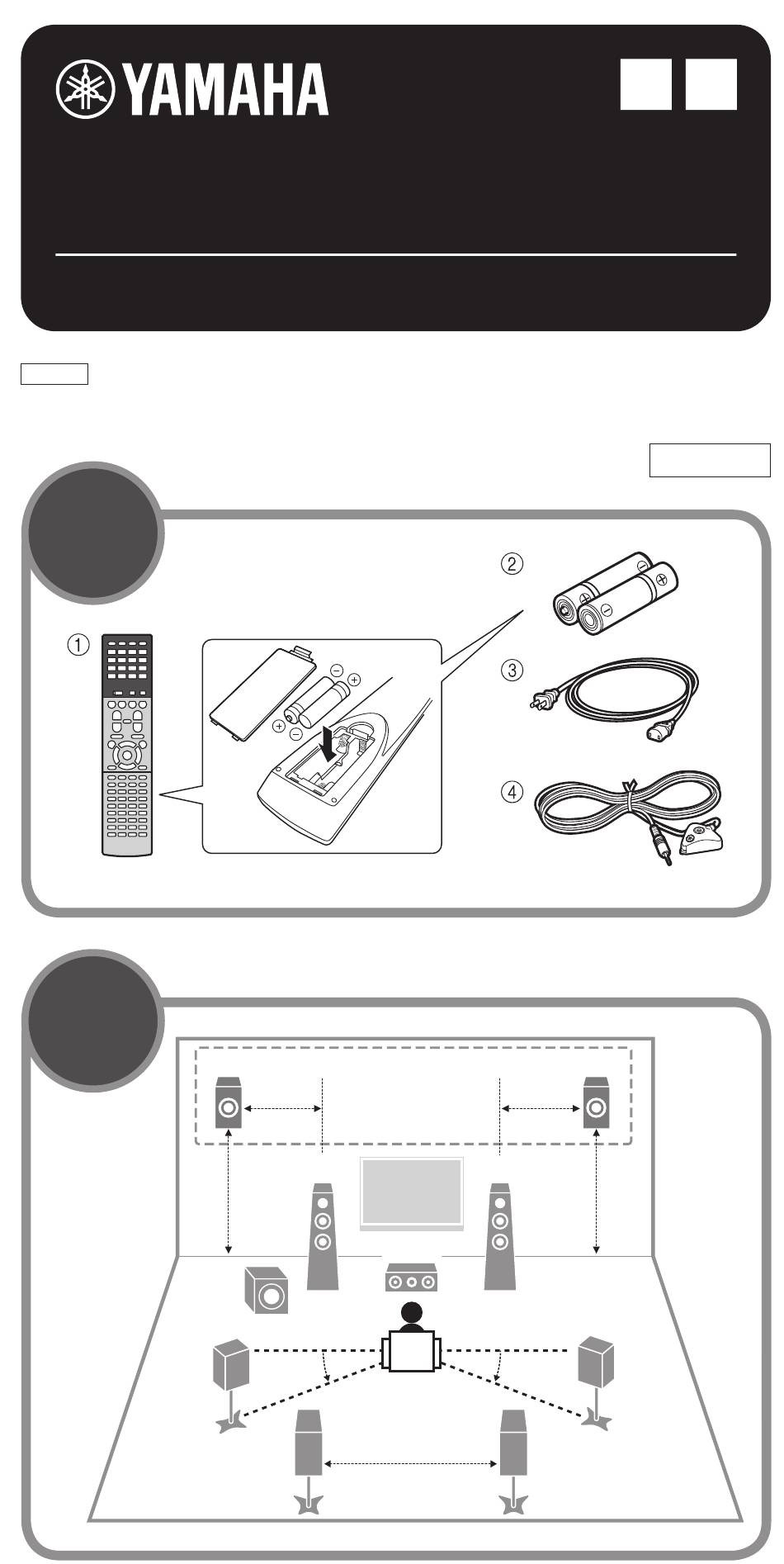

- Page 1 AV Receiver/Receptor AV Easy Setup Guide/Guía de configuración sencilla RX-A3060/RX-A2060 Manual Development Department © 2016 Yamaha Corporation RBGL Published 05/2016 KS-A0 Printed in Malaysia ZU72410 0.5 to 1 m 0.5 to 1 m De 0,5 a 1 m De 0,5 a 1 m 1.8 m...
- Page 2 For 7.1.2-channel system Para el sistema de 7.1.2 canales Front presence speaker (R) Front presence speaker (L) 10 mm (3/8”) Altavoz de presencia delantero (Der.) Altavoz de presencia delantero (Izq.) 10 mm Use a subwoofer equipped with built-in amplifier. Utilice un altavoz de subgraves con un amplificador incorporado. ZONE OUT/PRE OUT PRE OUT (SINGLE)
- Page 3 Internet Internet Network cable Modem Router Cable de red Módem Enrutador NETWORK WIRELESS ( 3 NET ) L E S S W IR E To an AC wall outlet AC IN A una toma de CA VOLTAGE SELECTOR 220V- VOLTAGE SELECTOR 240V (Brazil and General models only) 110V-...
- Page 4 This document explains 7.1-channel system setup, 7.1.2-channel system setup using the front presence speakers, and surround sound playback from a BD/DVD via the unit. In this document, the RX-A3060 is used for illustration purposes. Some parts or components, such as jacks or remote control keys, may vary by specific model. Such differences are indicated as required.
-
Page 5: Placing Speakers
Placing speakers Set up the speakers in the room using the diagram as a reference. 1 Front speaker (L) 2 Front speaker (R) 3 Center speaker 4 Surround speaker (L) 5 Surround speaker (R) 6 Surround back speaker (L) 7 Surround back speaker (R) E Front presence speaker (L)* R Front presence speaker (R)* 9 Subwoofer... -
Page 6: Connecting External Devices
Connecting external devices Establishing a network connection Establish wired network connection a , or a wireless network connection b , in accordance with your network environment. Wired network connection Wireless network connection Raise the wireless antenna so that it is standing up straight. (Procedures for connecting the unit to a wireless router are described in step Notice... - Page 7 V-AUX INPUT AUDIO PHONO TV VOL TV CH MUTE CODE SET The Yamaha Parametric room Acoustic Optimizer (Y TUNER BLUETOOTH VOLUME • Skip this step and proceed to step when the unit is detects speaker connections, measures the distanc MAIN...
- Page 8 ENHANCER PURE DIRECT INFO SLEEP English Connecting the unit to a wireless MEMORY network INPUT TV VOL TV CH MUTE CODE SET • Skip this step and proceed to step when the unit is connected to a router via a network cable ( a in step •...
-
Page 9: Optimizing The Speaker Settings Automatically (Ypao)
Optimizing the speaker settings automatically (YPAO) The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room. -
Page 10: Basic Operations
MEMORY Start playback on the BD/DVD player. INPUT Press STRAIGHT repeatedly to select “STRAIGHT” . TV VOL TV CH MUTE CODE SET Note When “STRAIGHT” (straight decode) is enabled, each speaker produces each channel audio signal directly (without sound field processing). Press VOLUME to adjust the volume.
