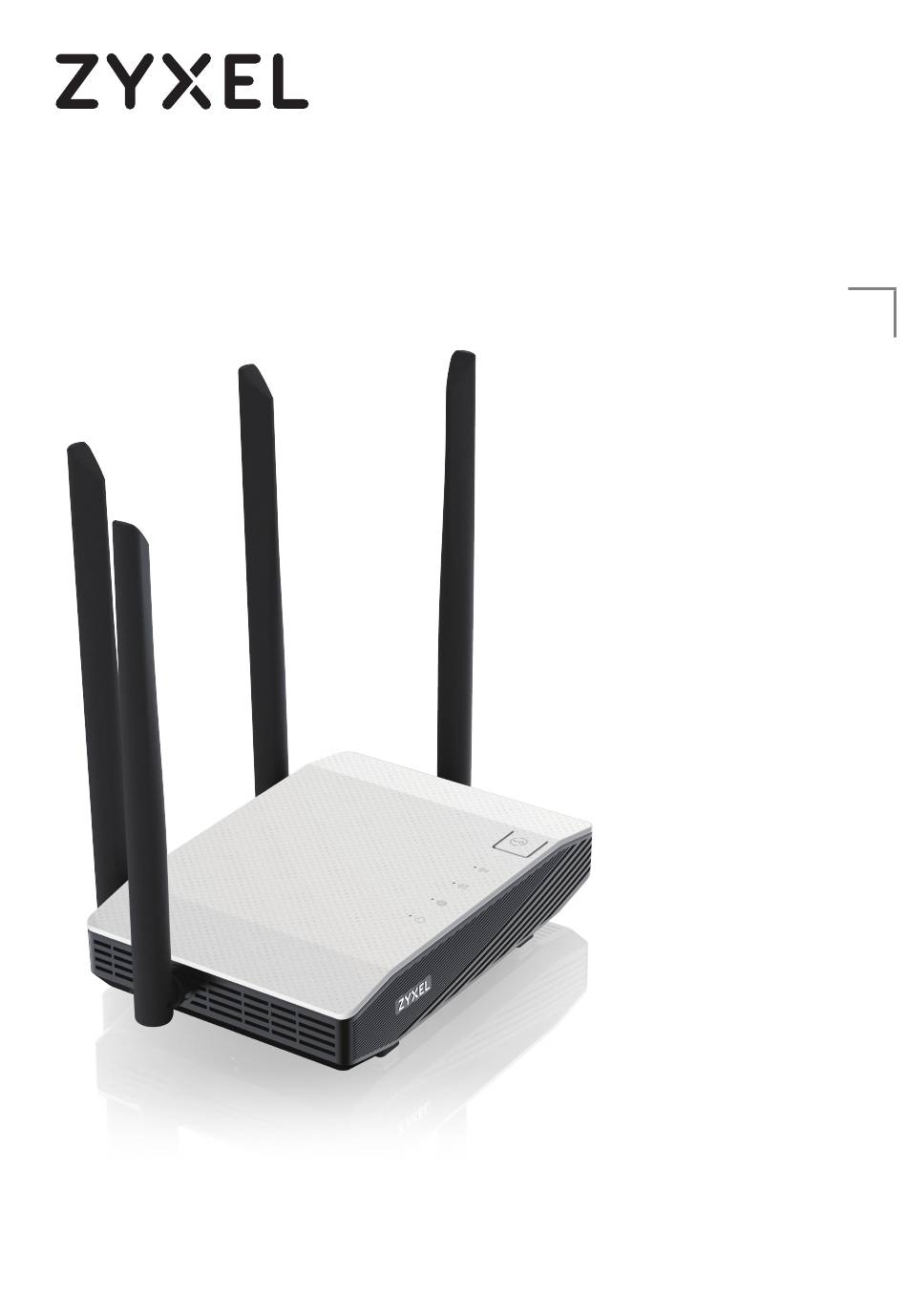

- Page 1 NBG6615 AC1200 MU-MIMO Dual-Band Wireless Gigabit Router Quick Start Guide ENGLISH | DEUTSCH | FRANÇAIS | ITALIANO ESPAÑOL...
-
Page 2: Hardware Installation
Hardware Installation DC IN Modem Power outlet Check the LEDs Wait for the LEDs to turn on. Power On 2.4G On 5G On... - Page 3 Plug one end of an Ethernet cable into the blue WAN port of the NBG6615. Plug the other end into a LAN port of a broadband modem that has Internet access. Use the included power adaptor to connect the NBG6615's power jack to a power outlet.
- Page 4 WiFi or Ethernet Cable Connection WiFi Zyxelxxxxxx Zyxelxxxxxx Password XXXXXXXX Zyxelxxxxx.speed Connect Computer...
- Page 5 Pour les terminaux sans fil, trouvez le nom du réseau WiFi (SSID) et saisissez le mot de passe. Connectez un ordinateur à l'un des ports LAN jaunes du NBG6615. Per iOS e altri dispositivi wireless, trova il nome WiFi (SSID) e immetti la password WiFi.
-
Page 6: Initial Setup
Initial Setup http://192.168.212.1 User Name : admin Password : 1234 (default) http://192.168.212.1 NBG6615 admin User Name 1234 Password Login... - Page 7 To configure your Internet settings, open a web browser on your computer and type http://192.168.212.1. Enter admin as the user name and 1234 as the password. Click Login and follow the on-screen prompts to set up your Internet connection. Öffnen Sie einen Webbrowser auf dem angeschlossenen Computer und geben Sie http://192.168.212.1 ein.
-
Page 8: Wifi Connection Via Wps
WPS button can trigger both 2.4G and 5G - WPS can be used to connect on either a 2.4G WiFi network or a 5G WiFi network - If the WPS connection is successful, the NBG6615’s amber light will stop blinking and turn solid for 5 seconds. - Page 9 Press the WPS button on the NBG6615’s front panel for about 2 seconds to activate the discovery of new devices. Within 2 minutes, push the WPS button on the hardware or screen of your wireless device. Drücken Sie die WPS-Taste an der Vorderseite des NBG6615 ca. 2 Sekunden lang, um die Erkennung neuer Geräte zu aktivieren.
- Page 10 LEDs White - On - System is ready Off - Power off Power Blinking - Upgrading firmware, restoring configurations, rebooting system On - An IP connection is available but White - there is no traffic Internet Off - IP connection is not available Blinking - Transmitting/receiving traffic On - WLAN interface is enabled White -...
-
Page 12: Support Information
EU Importer Zyxel Communications A/S Gladsaxevej 378, 2. th. 2860 Søborg, Denmark http://www.zyxel.dk US Importer Zyxel Communications, Inc 1130 North Miller Street Anaheim, CA 92806-2001 http://www.us.zyxel.com Copyright © 2018 Zyxel Communications Corp. All Rights Reserved.
