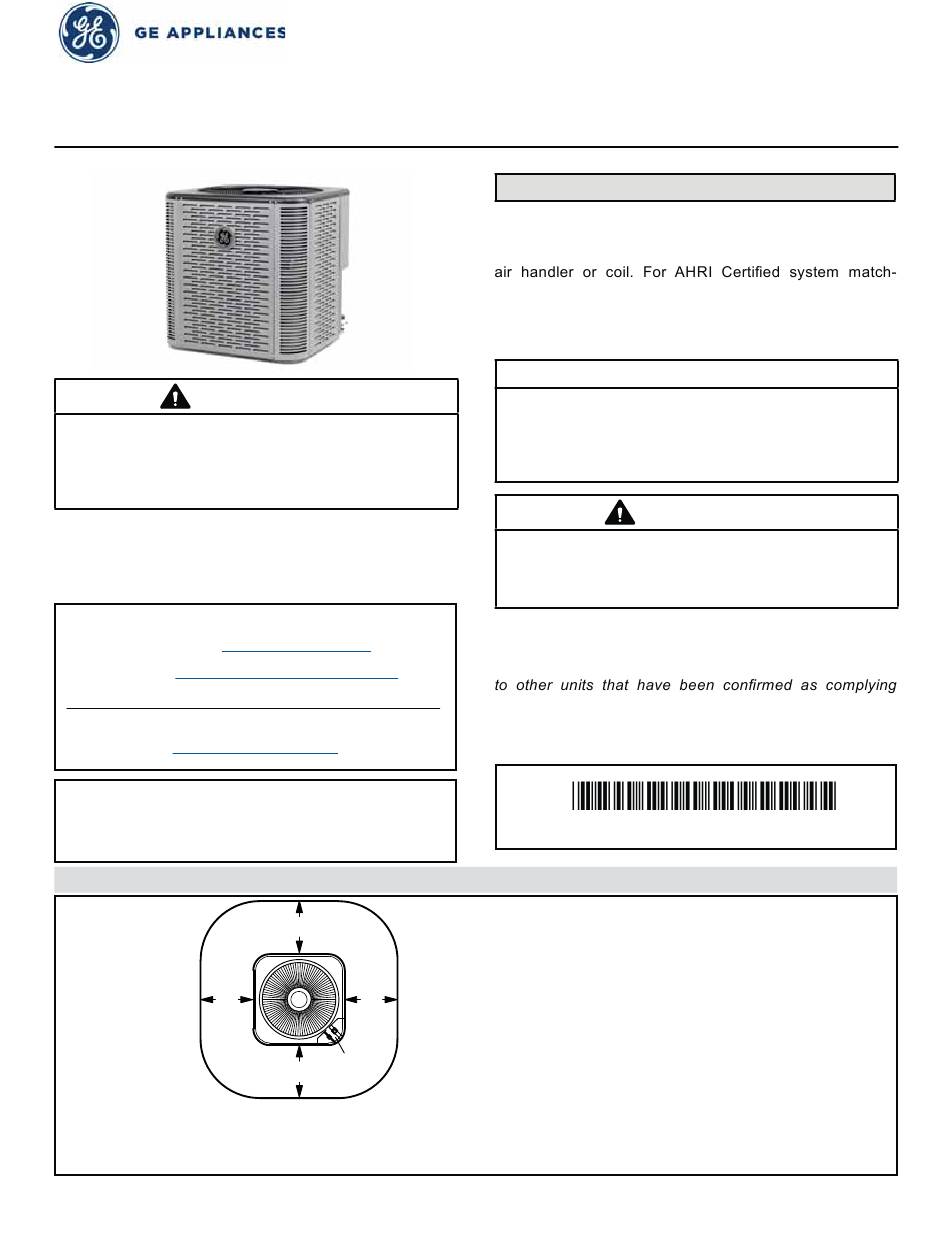

INSTALLATION INSTRUCTIONS
NS17A*T*5
This manual must be left with the homeowner for future reference
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, or service agency.
The installation guidelines in this document are based on
UL60335-2-40 Edition 4. For information on installation
consistent with UL 60335-2-40 Edition 3, please refer to
www.geappliancesairandwater.com.
Contact GE Appliances at:
Homeowner:
www.geappliances.com
HVAC Pro:
www.geappliancesairandwater.com
866-814-3633
Split System USAC and USHP matches:
www.AHRIDirectory.org
GE Appliances
A Haier Company
Appliance Park
Louisville, KY 40225
STEP 1 – SETTING THE UNIT – Clearances
See
NOTES
NOTICE: Specific applications may require adjustment of the listed installation clearances to provide protection for
the unit from physical damage or to avoid conditions which limit operating efficiency. (Example: Clearances may
have to be increased to prevent snow or ice from falling on the top of the unit. Additional clearances may also be
required to prevent air recirculation when the unit is installed under a deck or in another tight space.)
508642G01 / 31-5000965
or
See NOTES
NOTES -
Service clearance of 30 in. (762 mm) must be maintained on one of
the sides adjacent to the control box.
Clearance to one of the other three sides must be 36 in. (914 mm).
See
Clearance to one of the remaining two sides may be 12 in. (305
NOTES
mm) and the final side may be 6 in. (152 mm).
A clearance of 24 in. must be maintained between two units.
CONTROL
48 in. (1219 mm) clearance required on top of unit.
See NOTES
BOX
Issue 2432
AIR CONDITIONER – R454B
General
This NS17A*T*5 outdoor air conditioner with all-
aluminum coil is designed for use with R-454B refrigerant
only. This unit must be installed with an approved indoor
ups and expanded ratings, visit www AHRIdirectory.org.
These instructions are intended as a general guide and do
not supersede local codes in any way. Consult authorities
having jurisdiction before installation.
NOTICE!
Charging information is given on the charging
procedure label on the unit access panel. For
more in-depth information, consult the Installation
and Service Procedures manual, available on
geappliancesairandwater.com.
CAUTION
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves and
protective clothing.
NOTE – This unit NS17A*T*5 is a PARTIAL UNIT
AIR CONDITIONER, complying with PARTIAL UNIT
requirements of this Standard, and must only be connected
to corresponding PARTIAL UNIT requirements of this
Standard, UL 60335-2-40/CSA C22.2 No. 60335-2-40, or
UL 1995/CSA C22.2 No 236.
(P)508642G01
Page 1 of 21
