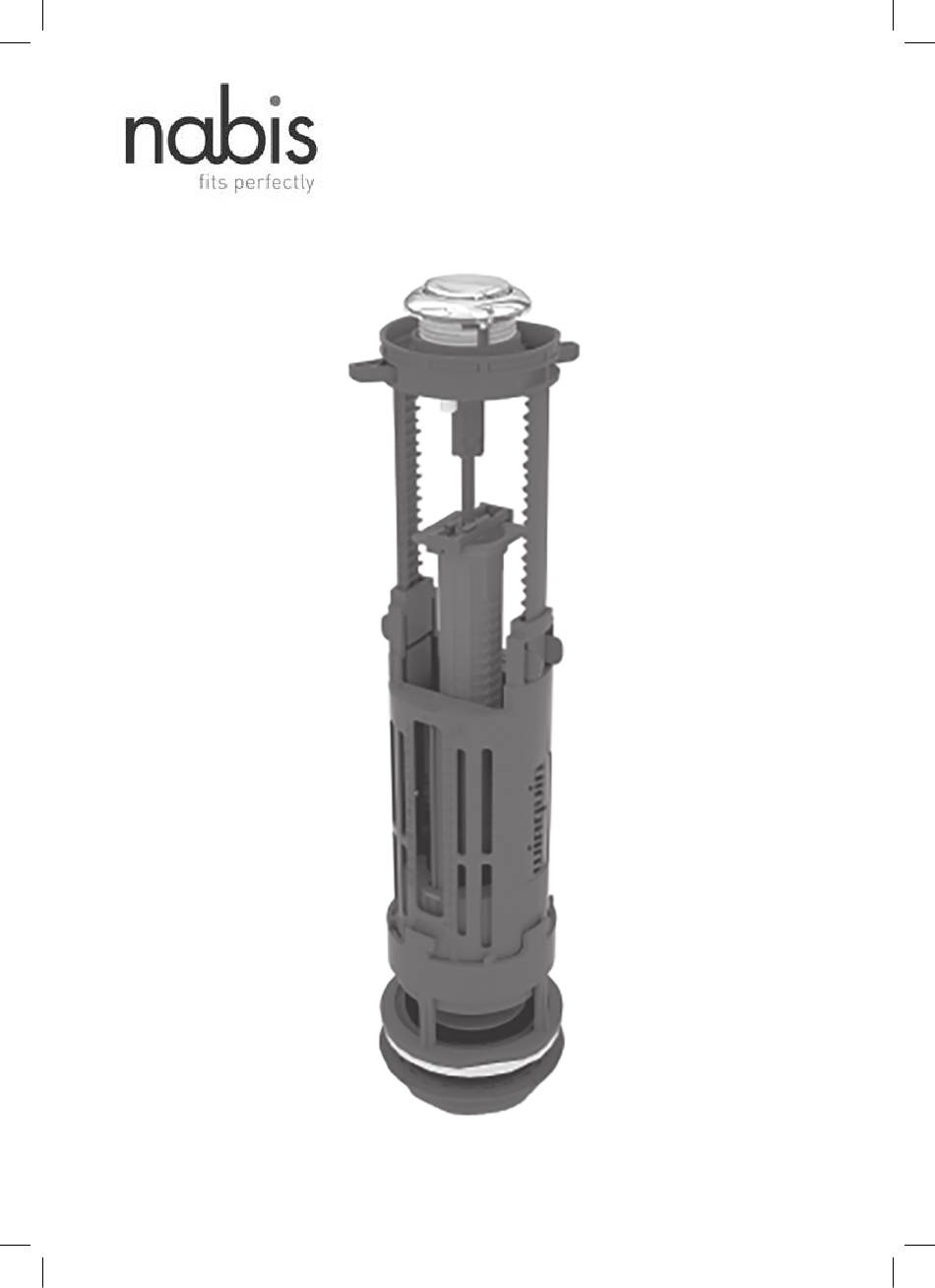

- Page 1 B24006 Nabis Mechanical Flush Valve Assembly instructions...
- Page 2 Description Flush Valve Bridge Flush Valve Body Base Sealing Washer Backnut Close Coupling Washer Chrome Push Button Close Coupling Bolted Kit...
- Page 3 Flushing Valve Unscrew push button from bridge of flushing valve and pull up and remove. Remove bridge from flushing valve body (simply push the lugs in and pull up). Unclip flush valve body from flush valve base.
- Page 4 Fitting base and bolted close coupled kit Remove cistern from wall and pan. Replace the bolted close coupling kit (item H). Fit sealing washer (item D) onto base (item C) - sealing washer to be fitted on inside of cistern. Fit the backnut (item E) handtight and 1/4 turn with suitable spanner.
- Page 5 Fitting flush valve body to base Clip flush valve body to base. (Simply clip in and turn to lock in place)
- Page 6 Setting overflow height Simply twist the internal overflow and lock in place. Please Note: the internal overflow must be set 20mm above the waterline inside the cistern.
- Page 7 Setting the height of the flush valve bridge Clip the bridge back onto the flushing valve body and leave 80mm above the cistern body. Put the cistern lid on top of the bridge and gently push down until the lid is located on the cistern body.
- Page 8 Fitting push button Fit the push button into the cistern lid hole making sure the rod is located into the push button rod locator on the internal over flow tube. Warning: if the rod is not located in the push button rod locator the flushing valve will not operate.
- Page 9 IMPORTANT Priming the flushing valve Turn water supply back on and fill the cistern. Press and hold the full flush push button until the flush has completed. The flushing valve is now automatically adjusted and ready for use.
- Page 10 Full and part flush volumes Up for less, down for more Up for more, down for less If you want to increase or reduce the full or part flush volumes then remove the push button and cistern lid. Unclip the flushing valve and set to the required flush setting. Once this has been completed please start from Instruction 12 again.
- Page 11 Trouble shooting Removing flushing valve sealing washer Do not use Use only soapy or clean water...
- Page 12 Wolseley UK Ltd, Harrison Way, Leamington Spa, Warwickshire CV31 3HH. UK Technical helpline: 0333 222 4488 www.wolseley.co.uk...
