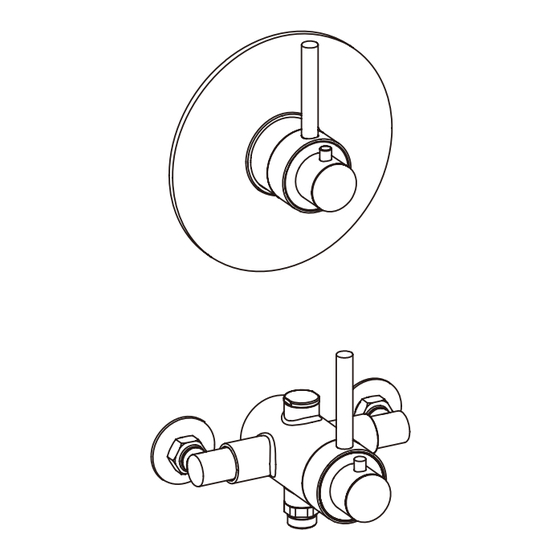

- Page 1 Concentric Thermostatic Shower Valve Instructions Product code: A05041 Please keep these instructions for future reference.
-
Page 2: Safety Note
Installation Requirements It is important to ensure that the water supplies to your taps and mixers are connected in accordance with current Water Regulations and good plumbing practice. It is Wolseley’s recommendation and good plumbing practice that the supplies of hot and cold water to the products should be equal (balanced) pressures in order to provide a consistent flow. - Page 3 Exposed Shower Installation Wall bracket Flange Fixing nuts Inlet pipes (not supplied) Copper olives 20mm Lever Filter Valve body Elbows Wall plug Grub screw Temperature Wall screw control handle On/off and flow control handle Hexagonal The position of valve body. Fig 1 Fig 2 1.
- Page 4 Concealed Shower Installation Wall plate diameter Inlet pipes (not supplied) Wall plug Wall bracket 20mm Flange Fixing nuts Copper olives Filter Elbows On/off and flow control handle Temperature control handle Grub screw Wall screw Valve body Lever Hexagonal key Wall plate...
- Page 5 1. 15mm diameter pipework should be installed and flushed before commencing installation. (1) Ensure distance of inlet pipe centres is 150 mm and that they protrude 20mm from the inner wall cavity and that the wall bracket is central. Adjust if required. Recess depth required 54-75 mm (Please refer to dimensioned diagram).
-
Page 6: Temperature Setting
Temperature Setting (To be changed only when essential) This mixer has been factory set under balanced water pressures with a hot water supply at 65˚C. When your operating conditions vary significantly from the above, the temperature of the mixed water may vary from the setting. - Page 7 Cleaning the Thermostatic Cartridge 1. Before carrying out any maintenance, turn off both water supplies to the shower valve. If unsure contact a qualified plumber. 2. Remove the cap, screw, temperature handle, then remove the limiter ring. Note: take note of the position of the limiter ring, they must be re-fitted in the same position.
-
Page 8: Care And Maintenance
Never use abrasive cleaners or chemical household cleaners, and avoid contact with concentrated bleach. Nabis products are manufactured to the highest of standards and should require little or no maintenance. In the unlikely event of any spare part requirements, please contact our telephone helpline number.
