TECNOVAP Junior Star Max User Instruction

Hide thumbs Also See for Junior Star Max:

Advertisement

Table of Contents

Pag. 1
TECNOVAP 07/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Junior Star Max and is the answer not in the manual?

Questions and answers

Related Manuals for TECNOVAP Junior Star Max

Summary of Contents for TECNOVAP Junior Star Max

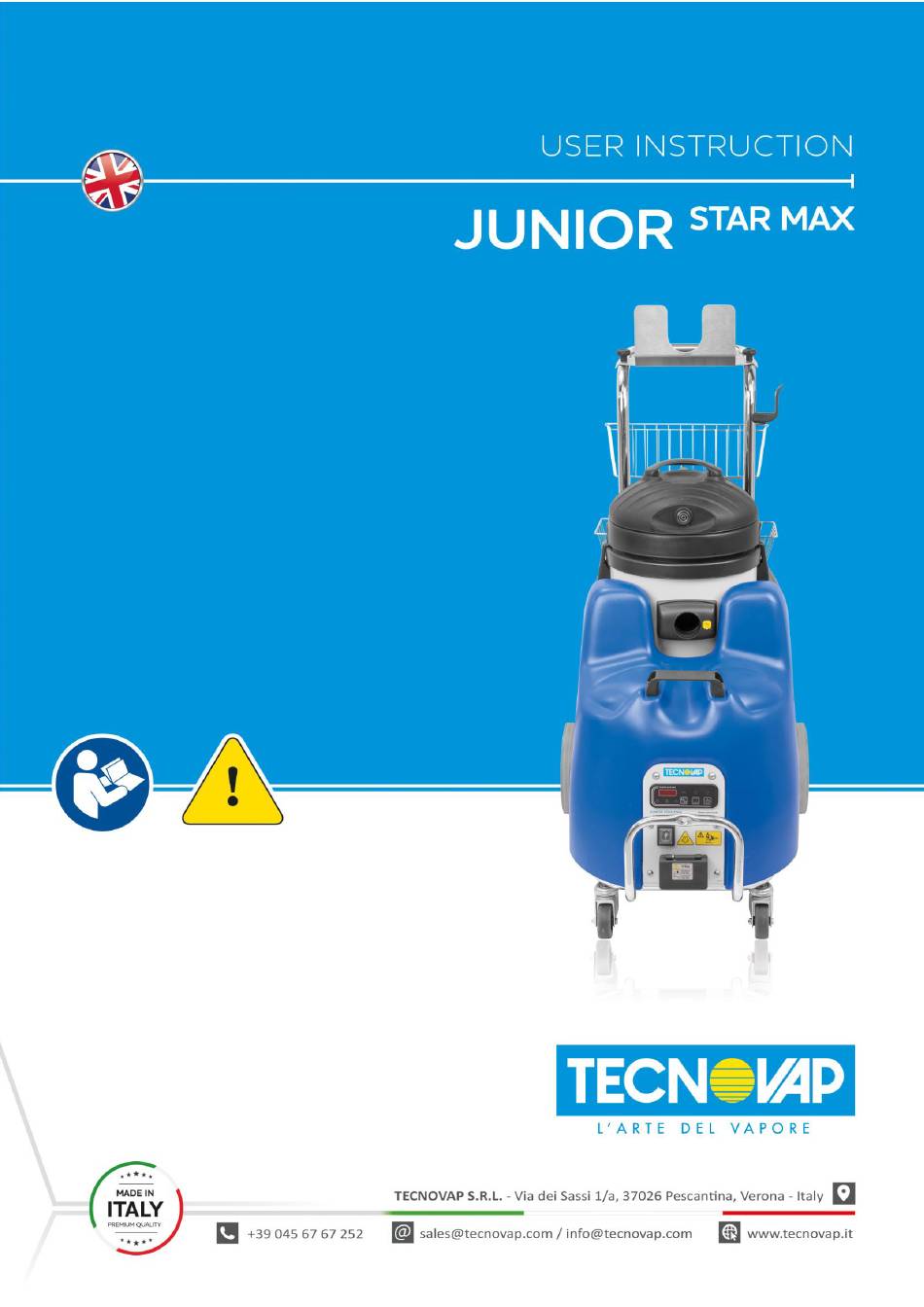

  • Page 1 Pag. 1 TECNOVAP 07/23...
  • Page 2 Pag. 2 TECNOVAP 07/23...
  • Page 3 This product is equipped with a reliable stainless-steel boiler able to produce a constant, powerful supply of steam (24 hours a day) thanks to the automatic recharge system. JUNIOR STAR MAX is also equipped with a separate detergent tank for injecting detergent at 90-160°C and a overheated water injection system (optional).
  • Page 4 Steam…. Danger of scalding tension or the unit itself Equipment with sound pressure level > Danger of scalding!! 85db Read the operator manual Wear protective gloves. It is compulsory to use ears protective shrouds. Pag. 4 TECNOVAP 07/23...
  • Page 5 Protect the soil, dispose of used oil in compliance with environmental laws. The user may return the appliance for disposal to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Pag. 5 TECNOVAP 07/23...
  • Page 6 THERMOSTATS. The unit is equipped with thermostats able to control the overtemperature. In case the main control system becomes inefficient, they would intervene permanently by deactivating the boiler heating. If this occurs, disconnect the power plug and contact a service center. Pag. 6 TECNOVAP 07/23...
  • Page 7 Do not use the appliance if the power cable or other important parts have been damaged, for example safety devices, high pressure hoses or trigger gun.  When using an extension cable, the plug and socket must be watertight.  Inappropriate extension cables may be hazardous. Pag. 7 TECNOVAP 07/23...
  • Page 8 In the event of accidental contact with the detergent used, strictly follow the instructions given on the package and the relative safety data sheet.  Wear gloves when using the appliance. Pag. 8 TECNOVAP 07/23...

  • Page 9: Technical Features

    2. TECHNICAL FEATURES FACTORY: TECNOVAP SRL - VIA DEI SASSI 1A 37026 PESCANTINA VERONA ITALY Model 6 bar 8 bar Code 1130061 1H30061 1130081 1H30081 Rated Voltage Current type 50/60 1~ Rated Power Boiler 3.60 Rated Power vacuum 1.20 Max Rated Power 3.65...
  • Page 10 Pag. 10 TECNOVAP 07/23...
  • Page 11 Pag. 11 TECNOVAP 07/23...
  • Page 12 Pag. 12 TECNOVAP 07/23...
  • Page 13 Pag. 13 TECNOVAP 07/23...
  • Page 14 Pag. 14 TECNOVAP 07/23...
  • Page 15 Pag. 15 TECNOVAP 07/23...
  • Page 16 Pag. 16 TECNOVAP 07/23...
  • Page 17 Pag. 17 TECNOVAP 07/23...
  • Page 18 Indicates that the generator is ready for use. “Minimum steam” indicator Indicates that minimum steam flow has been selected. “Medium steam” indicator Indicates that medium steam flow has been selected. “Maximum steam” indicator Indicates that maximum steam flow has been selected. Pag. 18 TECNOVAP 07/23...
  • Page 19 “hot water injection” light (34A) will be blinking. Proceed by adding water to the water tank (10). This operation can be carried out without turning the machine off. Once the “steam ready” light (20F) comes on, the machine is ready for use again. Pag. 19 TECNOVAP 07/23...
  • Page 20 1 hour of inactivity. For activating or deactivating such mode it is sufficient to switch the generator off by pressing the “stand-by” switch (20A) for 3 seconds during the usage. Repeat the same procedure to deactivate the function. The display will show T.OFF. Pag. 20 TECNOVAP 07/23...
  • Page 21 Both the detergent and the superheated water function must be run at intervals (e.g. 20 seconds on 20 seconds off), neither function works continuously. The detergent and / or hot water injection (optional) are delivered only if the steam outlet is active and the “steam ready” indicator (20F) on the control panel is on. Pag. 21 TECNOVAP 07/23...
  • Page 22 3-5 litres of clean water to rinse the inside of the hose (36) and the suction conduits. Wash and dry all the used tools. Remove the vacuum drum (4) and, after emptying and rinsing it, let it dry before storing it away. Pag. 22 TECNOVAP 07/23...
  • Page 23 Once the cleaning is finished it is recommended to vacuum approx. 3-5 litres of clean water to rinse the inside of the hose (36) and the suction conduits. Wash and dry all the used tools. Remove the vacuum drum (4) and, after emptying and rinsing it, let it dry before storing it away. Pag. 23 TECNOVAP 07/23...
  • Page 24 180°C. Be very careful not to press this accidentally and make sure that the jet never points at persons or animals. For steam cleaning combined with injection of detergent and/or superheated water, select and install the most suitable accessory after having first switched off the machine: Pag. 24 TECNOVAP 07/23...

  • Page 25: In The Kitchen

    To carry out specific grout cleaning we suggest to use the steam lance (71-76-88) with a brush (43 or 44 according to the need). This way it will be possible to get rid of the most difficult dirt and remove it from the grouts thanks to the pressure applied. Pag. 25 TECNOVAP 07/23...
  • Page 26 To clean car interiors (upholstery, carpets and seats) follow the cleaning instructions for the carpeted floors. To clean the dashboard it is enough to steam the surface and to wipe it then with a cloth in order to dry the humidity. Pag. 26 TECNOVAP 07/23...
  • Page 27 To reset the “C A L C” signal on the display, turn the unit off with the “stand-by” button (20A), the display will indicate OFF. Press and hold the “boiler on” button (20C) for 10 seconds until the inscription “CLrC” will appear on the display. The maintenance of the boiler is finished. Pag. 27 TECNOVAP 07/23...
  • Page 28 Turn the unit off by using the main switch (21) located on the control panel of the unit. Press and hold together the “pressure / temperature” button (20E) and the “boiler on” button (20C), while you keep them pressed switch the machine on again by using the main switch (21). Pag. 28 TECNOVAP 07/23...
  • Page 29 Grease occasionally joints on the accessories and hose extensions. Pag. 29 TECNOVAP 07/23...
  • Page 30 Wait for the pressure to stabilise (2-3 minutes) and internal depression, which when switched back on the noise stops. cause vibrations. The accessories do not fit perfectly. The joints and snap-on couplings are dirty. Clean and lubricate the joints on the accessories. Pag. 30 TECNOVAP 07/23...

  • Page 31: Dichiarazione Di Conformita

    Il fascicolo tecnico è stato emesso ed archiviato presso Tecnovap S.r.l. con sede in Via dei Sassi, 1a Pescantina (VR) Italy. (The technical dossier was issued and filed at Tecnovap S.r.l. with registered office in Via dei Sassi, 1a Pescantina ,VR - Italy.) PESCANTINA –...

  • Page 32: Extraordinary Maintenance

    Extraordinary maintenance Working Hours Date of Description of maintenance, components replaced Generator Maintenance etc. Pag. 32 TECNOVAP 07/23...

  • Page 33: Ordinary Maintenance

    Ordinary maintenance Working Hours Date of Description of maintenance, components replaced Generator Maintenance etc. Pag. 33 TECNOVAP 07/23...
  • Page 34 NOTES Pag. 34 TECNOVAP 07/23...
  • Page 35 Pag. 35 TECNOVAP 07/23...
  • Page 36 THE MANUFACTURER RESERVES THE RIGHT OF TECHNICAL AND STRUCTURAL MODIFICATIONS AS WELL AS IMPROVEMENTS WITHOUT PRIOR NOTICE. Tecnovap S.r.l. – Via dei Sassi 1/a 37026 Pescantina, Verona – Italy +390456767252 – info@tecnovap.com – www.tecnovap.it Pag. 36 TECNOVAP 07/23...
