STEAM BOX PRO
USER MANUAL
This manual is available in digital format, by submitting a specific request to the
following address:
Info@tecnovap.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Steam Box Professional and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TECNOVAP Steam Box Professional

Summary of Contents for TECNOVAP Steam Box Professional

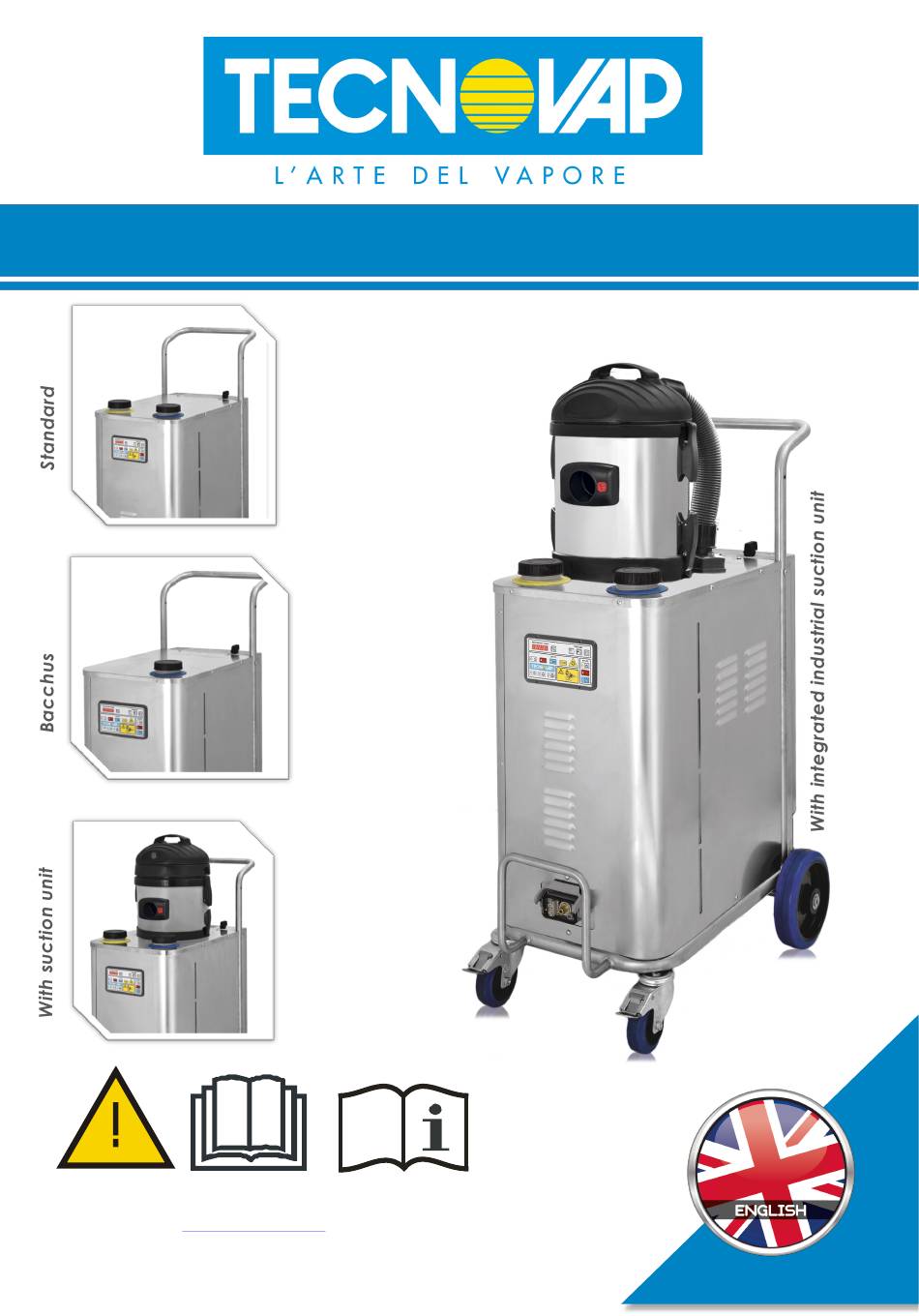

  • Page 1 STEAM BOX PRO USER MANUAL This manual is available in digital format, by submitting a specific request to the following address: Info@tecnovap.com...
  • Page 2 STEAM BOX PROFESSIONAL Pag. 2 TECNOVAP 06/19...
  • Page 3 EVENTUAL DAMAGES DUE TO THE CARRIAGE MUST BE COMMUNICATED AS SOON AS POSSIBLE TO YOUR OWN RETAILER. WARNING! STEAM…. DANGER OF SCALDING WARNING!! READ THE OPERATOR MANUAL OPERATOR MANUAL; OPERATING INSTRUCTIONS DANGER OF SCALDING!! WEAR PROTECTIVE GLOVES. EQUIPMENT WITH SOUND PRESSURE LEVEL > 85db WEAR EARS PROTECTIVE SHROUDS. Pag. 3 TECNOVAP 06/19...
  • Page 4 FUELS MUST NOT BE RELEASED INTO THE ENVIRONMENT. PROTECT THE SOIL, DISPOSE OF USED OIL IN COMPLIANCE WITH ENVIRONMENTAL LAWS. The user may return the appliance for disposal to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Pag. 4 TECNOVAP 06/19...
  • Page 5 C A L C will flash alternately with the current screen displayed. § WARNING. Use a set of connectors, pipes and new seals every time the appliance is connected to the mains water supply. Pag. 5 TECNOVAP 06/19...
  • Page 6 Take great care of the detergent used, as some that are available on the market, when heated to over 100°C, thus to a gaseous state, may produce highly toxic vapours. Check the technical data sheet of the product or consult your supplier. Pag. 6 TECNOVAP 06/19...
  • Page 7 (couplings, pipes, seals, adapters, etc.) for a new connection. As the appliance is mobile, it is not supplied with a mains water connection pipe due to the variable position and the distance of the appliance to the water connection point. Pag. 7 TECNOVAP 06/19...

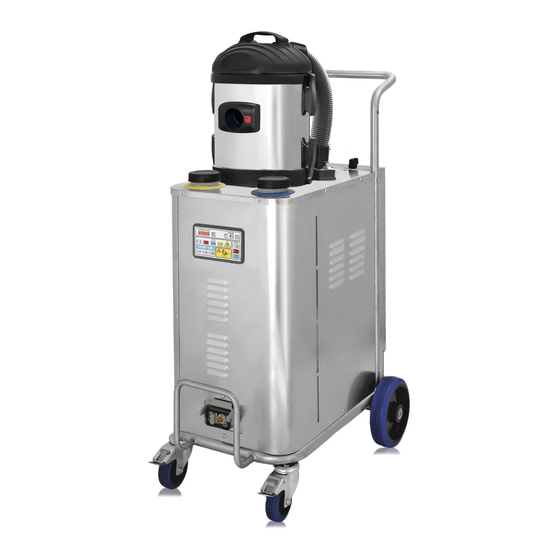

  • Page 8 STEAM BOX PROFESSIONAL is also equipped with a separate detergent tank for injecting detergent at 90-160°C and an overheated water injection system. In other words, to the power of steam, the epitome of eco-cleaning, TECNOVAP has combined a powerful suction unit (optional) which can suck up both solids and liquids.
  • Page 9 FACTORY: TECNOVAP SRL VIA DEI SASSI 1A 37026 PESCANTINA VERONA ITALY Model Steam Box Professional 4H07010 – 4H06010 – 4H05010 – 4H04010 – 4H0401M Code 4H07A10 – 4H06A10 – 4H05A10 – 4H04A10 – 4H04A1M 4H07T10 – 4H06T10 – 4H05T10 – 4H04T10 – 4H04T1M...
  • Page 10 STEAM BOX PROFESSIONAL Model Steam Box Professional Bacchus Code 4007060 – 4006060 – 4005060 – 4004060 – 400406M Rated Voltage 230/400 Current type 50/60 3~ Rated Power Boiler 3,6 – 7,2 – 10,8 – 14,4 Max Rated Power 3,75 – 7,35 – 10,95 – 14,55...
  • Page 11 STEAM BOX PROFESSIONAL NOMENCLATURE Steam Box Professional 01) Power cable 33) Overheated water delivery button (intermittent) 02) Mains water connection 33A) “Overheated water” indicator light 03) Mains water filter 34) Detergent delivery button (intermittent) 04) Main switch 34A) “Detergent” indicator light 05) Manoeuvring handle 35) “Steam ready”...
  • Page 12 STEAM BOX PROFESSIONAL TECHNICAL DRAWINGS STEAM BOX PROFESSIONAL SINGLE POWER Steam Box Professional AD40010 MULTI POWER Steam Box Professional AD4401M Pag. 12 TECNOVAP 06/19...
  • Page 13 STEAM BOX PROFESSIONAL STEAM BOX PROFESSIONAL STEAM BOX PROFESSIONAL CON ASPIRATORE WITH SUCTION UNIT SINGLE POWER Steam Box Professional AD40010 MULTI POWER Steam Box Professional AD4401M Pag. 13 TECNOVAP 06/19...
  • Page 14 STEAM BOX PROFESSIONAL STEAM BOX PROFESSIONAL STEAM BOX PROFESSIONAL CON ASPIRATORE INTEGRATO WITH INTEGRATED SUCTION UNIT SINGLE POWER Steam Box Professional AD40010 MULTI POWER Steam Box Professional AD4401M Pag. 14 TECNOVAP 06/19...
  • Page 15 STEAM BOX PROFESSIONAL STEAM BOX PROFESSIONAL BACCHUS SINGLE POWER Steam Box Bacchus AD40060 MULTI POWER Steam Box Bacchus AD4406M Pag. 15 TECNOVAP 06/19...
  • Page 16 STEAM BOX PROFESSIONAL Pag. 16 TECNOVAP 06/19...
  • Page 17 STEAM BOX PROFESSIONAL JULY 10bar ACCESSORIES ONLY FOR MODELS 10.8 kW e 14.4 kW KIT GEYSER 10 bar Pag. 17 TECNOVAP 06/19...
  • Page 18 Shows the “total working hours” counter memory (C1) (hour counter/totaliser). Shows the “partial hours” counter memory, this counter can be reset by the user. Clock setup button (the time is shown only when the appliance is in stand-by). Pag. 18 TECNOVAP 06/19...
  • Page 19 Shows the “total working hours” counter memory (C1) (hour counter/totaliser). Shows the “partial hours” counter memory, this counter can be reset by the user. Clock setup button (the time is shown only when the appliance is in stand-by). Pag. 19 TECNOVAP 06/19...
  • Page 20 If there is no water in the boiler, the system automatically disables the power supply to the heating elements; this situation is indicated by the flashing LED on the “boiler” button . This system may also intervene after boiler filling operations, following the sludge drainage during the maintenance process. Pag. 20 TECNOVAP 06/19...
  • Page 21 When the suction hose coupling is completely obstructed, a safety system automatically blocks the steam generator after one minute. To reactivate the integrated suction unit switch off the appliance by using the main switch, wait 10 seconds before switching it on again. Pag. 21 TECNOVAP 06/19...
  • Page 22 STEAM BOX PROFESSIONAL 8.1. USING STEAM BOX PROFESSIONAL WITH RADAMES KIT Warning!! Switch off the steam generator before connecting the steam hose. Insert the male suction hose (38) in the female hose coupling (21) located on the suction unit and the steam plug (37) in the steam socket (9) located on the machine.
  • Page 23 (36) and the suction conduits. Clean and dry all the accessories used. Lift the suction unit bin (18), empty and rinse and then leave to dry before repositioning. 8.2. USING STEAM BOX PROFESSIONAL WITH JULY KIT (only for models 10,8 kW and 14,4 kW) Warning!! Switch off the steam generator before connecting the steam hose.
  • Page 24 (e.g. high-quality wood) or vertical surfaces (e.g. tiles). In this case the cloth acts as a dirt “extractor”. 8.3. USING STEAM BOX PROFESSIONAL WITH GEYSER KIT Warning!! Switch off the steam generator before connecting the steam hose.
  • Page 25 The system will start the appliance at the previously set time and it will run for 2 hours, after which it will Pag. 25 TECNOVAP 06/19...
  • Page 26 After completing boiler maintenance, proceed by following the instructions described in paragraph (h) of chapter 8. It is advisable to completely empty the water tank (7) if the machine is to be left unused for a prolonged period of time. Pag. 26 TECNOVAP 06/19...
  • Page 27 Open the caps (10A) and (11A) and, if necessary, clean the filters (10B) and (11B) (using water). Place the caps with their filters back into respective seats, making sure that the gaskets are correctly positioned on the cap’s bottom. Pag. 27 TECNOVAP 06/19...
  • Page 28 9.4. Accessory Maintenance Grease the joints of the extension pipes and accessories when required. Imp. Radames PG5123 OR 29.82x2.62 Imp. Radames PG51264 OR 6.75x1.78 Imp. July PG5142 OR 9.25x1.78 Generatore 1 - PG51428 2 - PG51004 Pag. 28 TECNOVAP 06/19 OR 9.25x1.78...
  • Page 29 “ALL2” shown on the display. Temperature threshold exceeded, drainage cap Replace the drainage cap, bleed the air from the missing, boiler under pressure after sludge boiler using the steam switch on the steam gun draining. supplied. Pag. 29 TECNOVAP 06/19...
  • Page 30 Wait for the pressure to stabilise (2-3 minutes) an internal depression, which when switched and the noise stops. back on causes vibrations. The accessories don’t fit perfectly. The joints and snap-on couplings are dirty. Clean and lubricate the joints on the accessories. Pag. 30 TECNOVAP 06/19...
  • Page 31 PROFESSIONAL 11. DECLARATION OF CONFORMITY DICHIARAZIONE DI CONFORMITA’ CE (EC DECLARATION OF CONFORMITY) TECNOVAP S.R.L. con la presente dichiara che: la macchina per pulizia a vapore modello: (Certifies that the steam cleaning machine model:) Steam Box Vac Professional Risulta conforme alle specifiche delle direttive...
  • Page 32 STEAM BOX PROFESSIONAL Routine Maintenance Working Hours Frequency of Notes Generator intervention Pag. 32 TECNOVAP 06/19...
  • Page 33 STEAM BOX PROFESSIONAL Extraordinary Maintenance Working Date of hours Maintenance Description of maintenance, components replaced etc. Generator Pag. 33 TECNOVAP 06/19...
  • Page 34 STEAM BOX PROFESSIONAL NOTES Pag. 34 TECNOVAP 06/19...
  • Page 35 STEAM BOX PROFESSIONAL Pag. 35 TECNOVAP 06/19...
  • Page 36 STEAM BOX PROFESSIONAL Pag. 36 TECNOVAP 06/19...
  • Page 37 STEAM BOX PROFESSIONAL THE MANUFACTURER RESERVES THE RIGHT TO INTRODUCE TECHNICAL AND STRUCTURAL MODIFICATIONS AND IMPROVEMENTS WITHOUT NOTICE Pag. 37 TECNOVAP 06/19...
