- Page 1 JUNIOR STAR MAX JUNIOR STAR MAX USER INSTRUCTION Pag. 1 TECNOVAP DOC01240707...
- Page 2 JUNIOR STAR MAX Interpretation of the symbols placed on the unit BEFORE USING THE STEAM GENERATOR, READ AND FOLLOW THIS INSTRUCTION MANUAL. IT IS RECOMMENDED TO KEEP THIS INSTRUCTION MANUAL TO CONSULT IT LATER OR TO GIVE IT TO THE FOLLOWING OWNERS.
- Page 3 JUNIOR STAR MAX ENVIRONMENT PROTECTION ALL THE PACKINGS ARE RECYCLABLE, PACKINGS DO NOT HAVE TO BE THROWN IN THE DOMESTIC WASTE BUT THEY HAVE TO BE DELIVERED TO THE CENTERS SPECIALIZED FOR THE DISPOSING OF THE WASTE. DEVICES USED ANYMORE...
-
Page 4: Table Of Contents
JUNIOR STAR MAX SUMMARY SUMMARY SAFETY REGULATIONS TECHNICAL CHARACTERISTICS PREFACE TECHNICAL DRAWINGS NOMENCLATURE OPERATING INSTRUCTIONS MAINTENANCE BEFORE REFERRING TO THE TECHNICAL SERVICE DECLARATION OF CONFORMITY 2. SAFETY REGULATIONS § The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1. - Page 5 JUNIOR STAR MAX you know the hardness level and it is between 0 and 4 french degrees , the boiler cleaning can be carried out after 100 hours of usage. § ATTENTION. This appliance has been designed for use with cleaning agent supplied or recommended by the manufacturer.
-
Page 6: Technical Characteristics

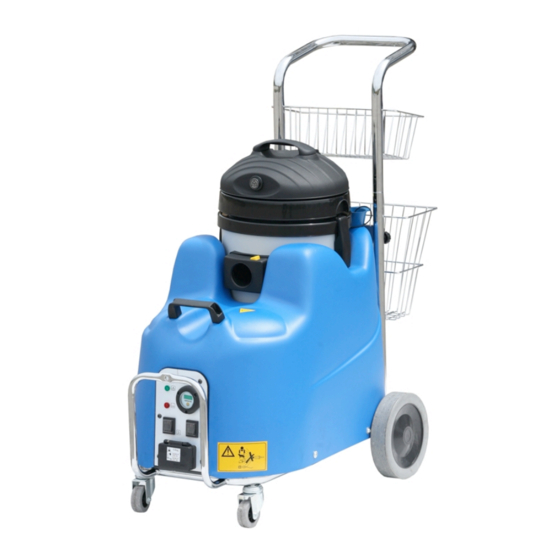

With the power of steam, meaning ecological cleaning power, Tecnovap has combined a powerful vacuum able to pick up solids and liquids. The JUNIOR STAR MAX is the ideal solution when it comes to cleaning and disinfecting. With the various accessories available, it cleans, disinfects, and removes dirt eliminating completely even the bacterial flora hidden in those areas most difficult to reach. -
Page 7: Technical Drawings
JUNIOR STAR MAX 5. TECHNICAL DRAWINGS Pag. 7 TECNOVAP DOC01240707... - Page 8 JUNIOR STAR MAX Pag. 8 TECNOVAP DOC01240707...
- Page 9 JUNIOR STAR MAX Pag. 9 TECNOVAP DOC01240707...
- Page 10 JUNIOR STAR MAX Pag. 10 TECNOVAP DOC01240707...
-
Page 11: Nomenclature
JUNIOR STAR MAX 6. NOMENCLATURE 1) Vacuum motor 39) Hook for hose fixing (only for 6 bar models) 2) Vacuum power switch 40) Locking latches for accessories 2A) Nylonfilter for non soluble powders (optional) 40A) Hand wheel screw (only for 10 bar models) 3) Clamping hooks for vacuum drum 41) Steam &... -
Page 12: Operating Instructions
JUNIOR STAR MAX 7. OPERATING INSTRUCTIONS (a) After opening the packaging box, fix the handle bar (18) to the rear support plate and lock it inserting it into the big accessories basket (20) and (20a). (b) Insert the plug (7) into the outlet (17) and verify that the vacuum power switch (2) is in ON position. - Page 13 JUNIOR STAR MAX OPERATING THE JUNIOR STAR MAX WITH KIT RADAMES Insert the vacuum hose (30) into the vacuum hose outlet (6) and the steam plug (32) into the steam outlet (22) on the machine. In case your machine is a 6 bar model (see the technical data located under the machine), it is necessary to insert also the hook to fix the hose (39).
-
Page 14: Maintenance
JUNIOR STAR MAX OPERATING THE JUNIOR STAR MAX WITH KIT JULY Insert steam plug (32) into the steam outlet (22) found on the top right of the machine. Push until the latch (31) locks into place (6 bar models). Activate the locking snap (10 bar models). - Page 15 JUNIOR STAR MAX 8.2. MAINTENANCE OF THE VACUUM CLEANER The vacuum cleaner of the JUNIOR STAR MAX model does not require any specific maintenance. 8.3. MAINTENANCE OF THE ACCESSORIES Grease occasionally joints on the accessories and hose extensions. PG5123 OR 29.82x2.62 PG5106 OR 9.25x1.78...
-
Page 16: Before Referring To The Technical Service
JUNIOR STAR MAX BEFORE REFERRING TO THE TECHNICAL SERVICE PROBLEM POSSIBLE CAUSE REMEDY Machine does not produce steam Lack of power. Make sure plug (21) is well inserted and that and vacuum does not work. there is main power to the outlets. -
Page 17: Declaration Of Conformity
JUNIOR STAR MAX 10. EC DECLARATION OF CONFORMITY DICHIARAZIONE DI CONFORMITA’ CE (EC DECLARATION OF CONFORMITY) TECNOVAP S.R.L. con la presente dichiara che: le macchine per pulizia a vapore modello: (Certifies that the steam cleaning machine model): Chattanooga Junior Star Max... - Page 18 JUNIOR STAR MAX Ordinary maintenance procedures Generator Working Frequency of Notes Hours intervention Extraordinary maintenance procedure Pag. 18 TECNOVAP DOC01240707...
- Page 19 JUNIOR STAR MAX Generator working Date of Intervention description, replaced components hours intervention etc. Pag. 19 TECNOVAP DOC01240707...
- Page 20 JUNIOR STAR MAX THE MANUFACTURER RESERVES THE RIGHT TO PRODUCE TECHNICAL AND STRUCTURAL IMPROVEMENTS WITHOUT PRIOR NOTICE. Pag. 20 TECNOVAP DOC01240707...
