T3 FIT, 76890, 76891 Manual

GROUND FAULT CIRCUIT INTERRUPTERS

This message about...
GROUND
FAULT
CIRCUIT
INTERRUPTERS
... can save a life!

If you must use your hair dryer in the bathroom, install a GFCI now! Your local electrician can help you decide which type is best for you -a portable unit that plugs into the electrical outlet or a permanent unit installed by your electrician. The National Electrical Code now requires GFCIs in the bathroom, garages and outdoor outlets of all new homes.

Why do you need a GFCI?

Electricity and water don't mix. If your hair dryer falls into water while the dryer is plugged in, the electric shock can kill you, EVEN IF THE SWITCH IS "OFF".
A regular fuse or circuit breaker won't protect you under these circumstances. A GFCI offers you far greater protection.

A GFCI can save your life! Compared to that, the price is small! Don't wait...install one now!

* GFCI is a sensitive device which reacts immediately to a small electric current leak by stopping the electricity flow.

OPERATING INSTRUCTIONS

SERVICING OF DOUBLE-INSULATED APPLIANCES

In a double-insulated appliance, two systems of insulation are provided instead of earthing. No earthing means is provided on a double-insulated appliance, nor should a means for earthing be added to the appliance.

Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be done only by qualified service personnel.

Replacement parts for double-insulated appliances must be identical to the parts they replace. A double insulated appliance is marked with the words "DOUBLE INSULATION"or "DOUBLE INSULATED". The symbol (square within a square) may also be marked on the appliance.

This appliance is intended for household use. Use on Alternating Current (60 Hz) only.

This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified technician. Do not attempt to defeat this safety feature.

CHECK ALCI EVERY TIME YOU USE THIS HAIR DRYER

This hair dryer is equipped with an Appliance Leakage Circuit Interrupter (ALCI), a safety feature that renders it inoperable under some abnormal conditions, such as immersion in water. To make sure the ALCI is functioning properly and the exclusive water sensing system (ALCI) is working, perform the following test:

1. Plug in the hair dryer and press the test button on the plug.
2. The hair dryer will stop working. There will be an audible click and the reset button will pop out.
3. To reset the ALCI with a Reset button: Unplug the unit. Then push the Reset button in, and reinsert the plug into the outlet.
4. Be sure to repeat the test every time you use this hair dryer to confirm the ALC Iis operational.
5. If the ALCI is not functioning properly, return the hair dryer to a service center.
6. If a water immersion occurs, bring this unit into a service center. Do not try to reset.

Should the dryer go off and the Reset button pop out during use, this could indicate a malfunction in the dryer. Remove the plug from the outlet and allow the dryer to cool. Reset the ALCI. Reinsert the plug into the outlet. The dryer should function normally. If not, return it to a service center for examination and repair.

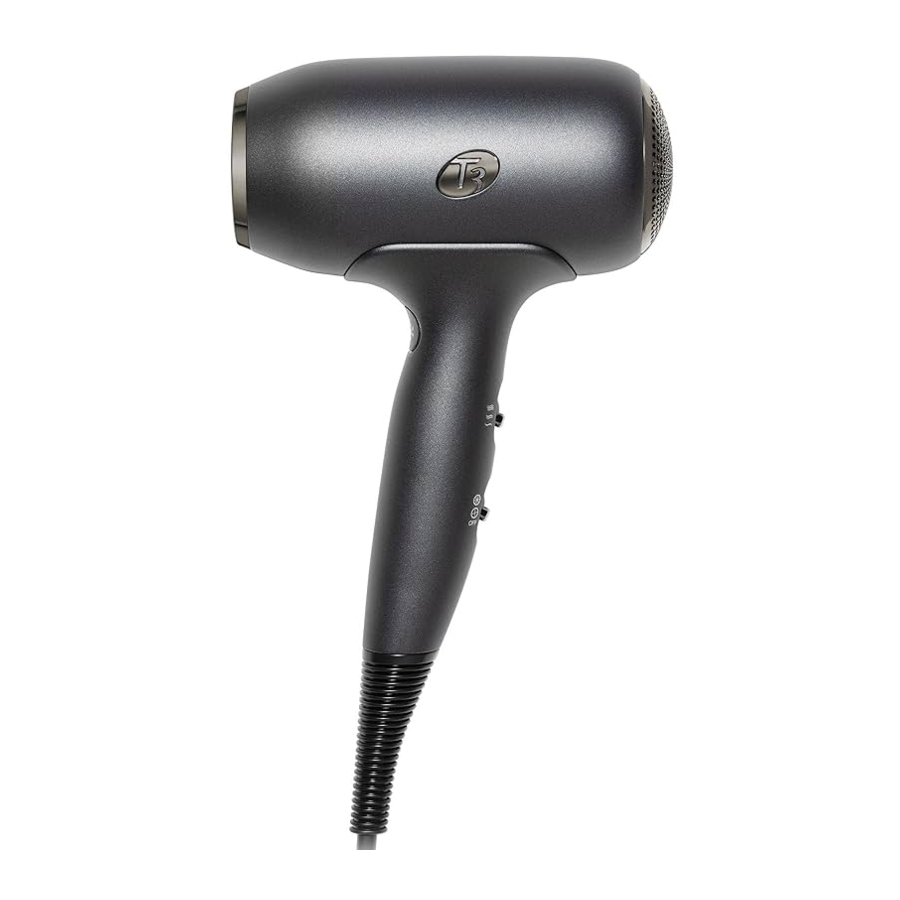

HOW TO USE YOUR T3 FIT

1. Attach the concentrator, dry hair evenly with a wide volume of air.

2. Select desired speed and heat levels. Fine processed hair types should use the Low heat setting.

3. Aiming the concentrator in a downward direction, rough dry hair until it is 80% dry.

4. Divide hair into 3-4 inch sections. Applying tension with a round bristle brush, brush through each section while following with the dryer. To smooth the ends, slip the brush underneath the curve and blow over the curve.

5. Finish by pressing the Lock-in Cool Shot Button and applying cool air to your hair to set your style.


LOCK-IN COOL SHOT BUTTON

The Lock-in Cool Shot Button provides a burst of cool air to help set your style and seal in shine for a lasting finish.

To activate the cool shot, press and release the Lock-in Cool Shot Button once. To deactivate it, press the button again.

Note: The Lock-in Cool Shot Button may remain activated after turning off the tool. If air is cool on next use, press and release the Lock-in Cool Shot Button once to deactivate it.

FILTER CLEANING INSTRUCTIONS

For optimal performance, clean your dryer rear filter. Simply brush or wipe away dust buildup with a soft cloth or small brush.

MAINTENANCE INSTRUCTIONS

1. Make sure that the inlet and outlet grills are clear of dust and lint for proper operating performance.
2. Your hair dryer is virtually maintenance free. No lubrication is needed.
3. Always remove the plug from the outlet and allow the dryer to cool before cleaning.
4. Use a soft cloth or a small brush to remove dust and lint that may have accumulated on the rear filter of the dryer.
5. The hair dryer exterior may be wiped clean with a damp cloth.
6.
   Never allow the power supply cord to be pulled, twisted or severely bent. Never wrap the cord tightly around the dryer. Damage will occur at the high flex point of entry into the hair dryer, causing it to rupture and short. Inspect the cord frequently for damage. Stop use immediately if damage is visible, if the unit stops or if it operates intermittently.
7. If the cord or hair dryer is damaged or does not operate properly, return it to a service center for repair.
8. This hair dryer has no user serviceable parts. Do not attempt to repair the appliance yourself.

STORAGE
When not in use, your hair dryer should be disconnected and stored in a safe, dry location, out of reach of children. Do not wrap the cord around the dryer. Allow the cord to hang or lie loose and straight at the point of entry into the hair dryer.

SPECIFICATIONS

Operating Voltage: 125V

Power Consumption: 12.8A

T3 Micro, Inc.
Venice, CA

Do not use the appliance near a shower, bathtub, washbasin or other vessel filled with water. Never place the appliance in water or any other liquid.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING
When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

KEEP AWAY FROM WATER
Electricity and water are a dangerous combination and can cause death by electric shock. Do not allow electrical cords to come into contact with water or other liquids.

ELECTRICAL APPLIANCES ARE ELECTRICALLY LIVE WHEN PLUGGED IN, EVEN IF TURNED OFF.

To reduce the risk of death by electric shock:

1. Always unplug the appliance immediately after using.
2. Do not use while bathing.
3. Do not place or store the appliance where it can fall or be pulled into a bath tub or sink.
4. Do not place in or drop into water or other liquid.
5. If the appliance falls into water, unplug it immediately. Do not reach into the water.

To reduce the risk of burns, electrocution, fire or injury to persons:

1. An appliance should never be left unattended when plugged in.
2. Close supervision is necessary when this appliance is used on, or near children or individuals with certain disabilities.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped, damaged, or dropped into water. Return the appliance to a service center for examination and repair.
5. Keep the cord away from heated surfaces. Do not wrap the cord around the appliance.
6. Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair and the like.
7. Never use while sleeping.
8. Never drop or insert any object into any opening.
9. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
10. Do not use an extension cord with this appliance.
11. Do not direct hot air toward eyes or other heat sensitive areas.
12. Attachments may be hot during use. Allow them to cool before handling.
13. Do not place the appliance, while it is operating, on any surface.
14. While using the appliance, keep hair away from the air inlet.
15. Do not operate with a voltage converter.

Do not use the appliance near a bath tub, washbasin or other vessel filled with water.

Never place the appliance in water or any other liquid.

SAVE THESE INSTRUCTIONS
