Logitech z533 Manual

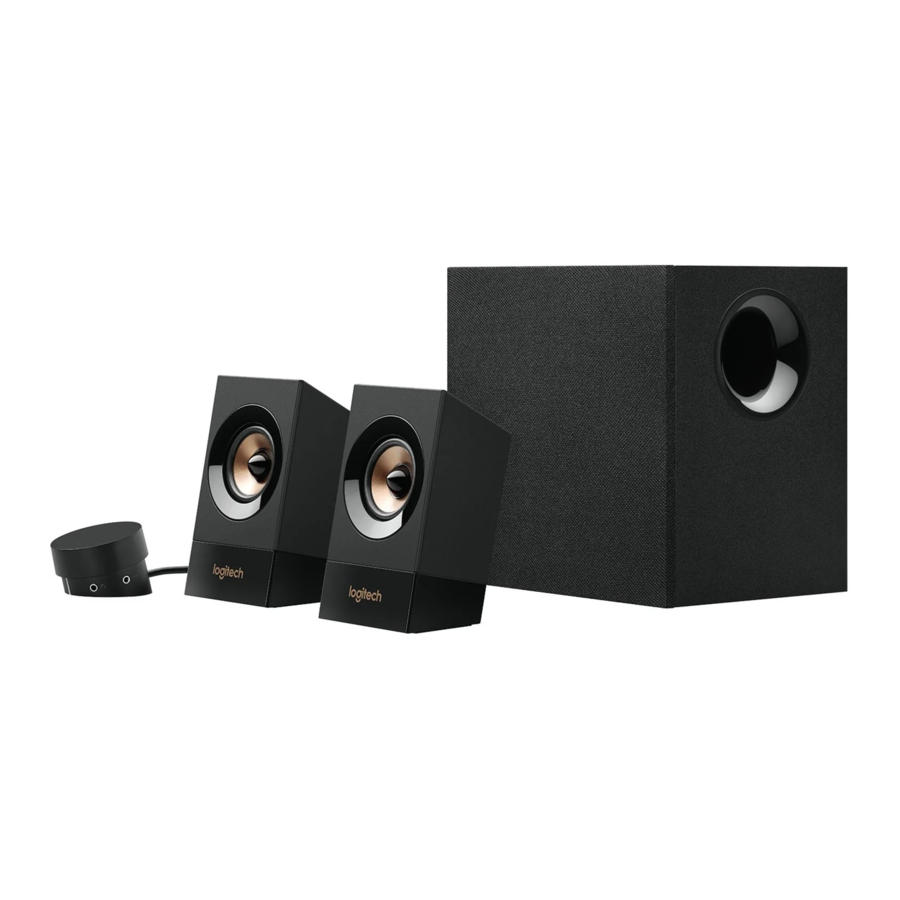

What's in the box

Left Satellite
Right satellite
Subwoofer (including wired control pod)
3.5 mm to 3.5mm cable
User documentation

Set-up

Plug the right satellite cable into the black subwoofer jack.
Plug the left satellite cable into the blue subwoofer jack.
Plug the power cord into an electrical outlet.
1. If you have a 3.5mm outlet on your device:
  - Insert the 3.5mm to 3.5mm cable plug from the subwoofer into the audio jack on your device

    4A
2. If you have a RCA outlet on your device:
  - Insert the RCA cable on the subwoofer (the RCA cable is not included in the box and must be purchased separately)
  - Insert the other end of the RCA cable into the RCA outlet on your device (TV, Gaming Console, etc)

    4B
3. If you have a 3.5mm outlet on your device:
  - Insert the 3.5mm to 3.5mm cable plug from the wired remote into the 3.5mm outlet on your device
Switch ON your Multimedia Speaker System z533 by turning clockwise the volume knob located on top of the wired remote. You will notice a "click" sound once the system is ON (the LED in front of the wired remote will also turn on)

Features

ADJUSTING SPEAKER VOLUME
Adjust your Multimedia Speaker System z533 volume with the wheel located on top of the wired remote (VOLUME UP - turn the wheel clockwise for volume up. VOLUME DOWN - turn wheel counter-clockwise for volume down).

USING HEADPHONES
Most types of analog headphones with a 3.5mm connector can be plugged into the headphone jack on the right of the wired remote.

ADJUSTING BASS VOLUME
To adjust the bass level of your Multimedia Speaker System z533, move the bass slider located on the left of the wired remote
