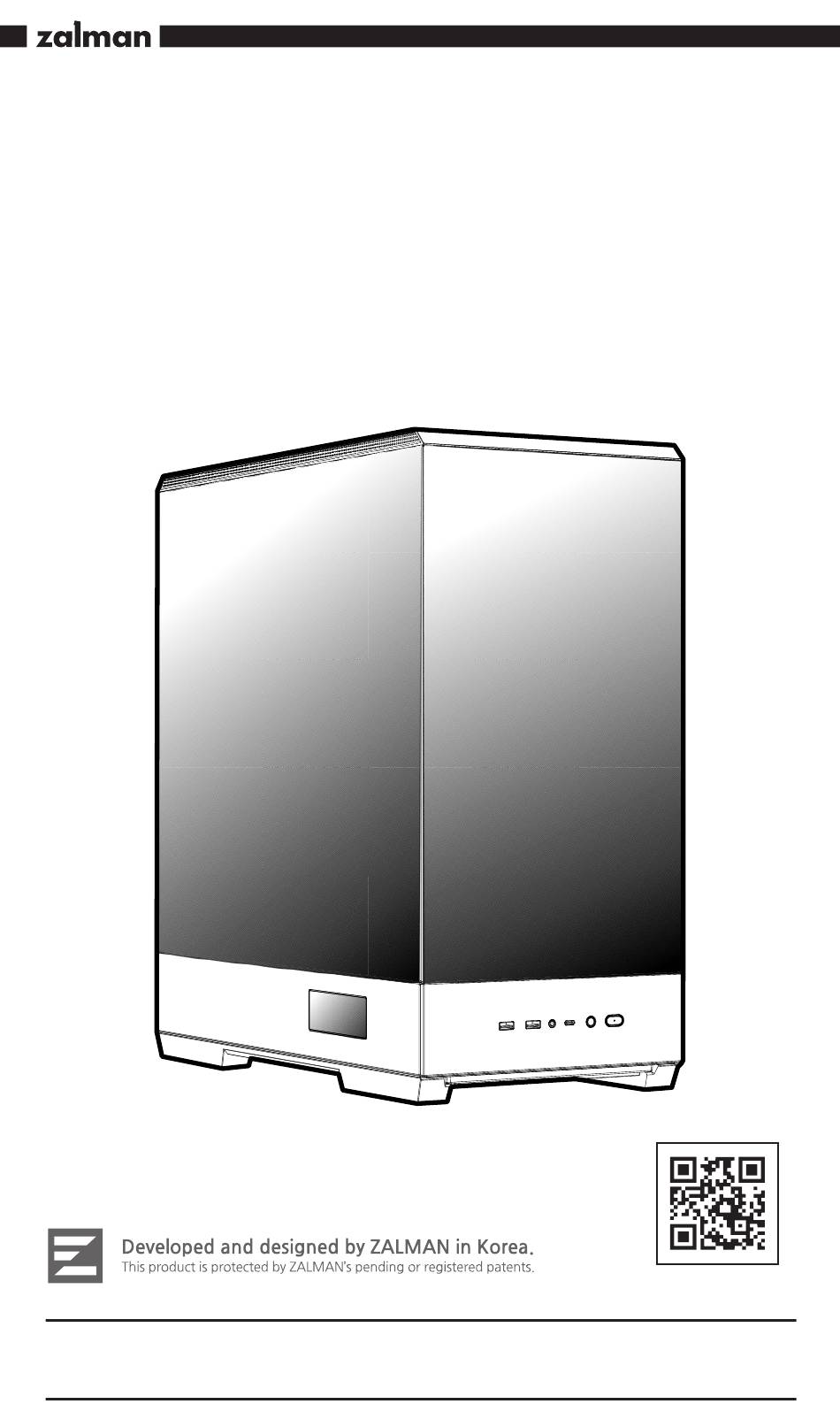

- Page 1 P50 / P50 DS ATX Mid-Tower Computer Case User's Manual Ver.120924 www.zalman.com ※ To ensure safe and easy installation, please read the following precautions. ※ Product design and specifications may be revised to improve quality and performance without notice.
- Page 2 Precautions English ■ Read this manual carefully before installing. ■ Check the product and components before installing. If you find any abnormalities, contact the location where you purchased the product for a replacement or refund. ■ Wear gloves to prevent accidents when installing the product. ■...
-
Page 3: Меры Предосторожности
Precauciones Español ■ Lea atentamente este manual antes de la instalación. ■ Compruebe el producto y los componentes antes de instalarlos. Si encuentra alguna anomalía, comuníquese con la ubicación donde compró el producto para un reemplazo o un reembolso. ■ Use guantes para evitar accidentes al instalar el producto. ■... - Page 4 Sicherheitshinweise Deutsch ■ Lesen Sie diese Anleitung sorgfältig durch, bevor Sie mit der Montage beginnen. ■ Prüfen Sie das Produkt und alle Komponenten, bevor Sie mit der Montage beginnen. Wenn Sie etwas Unnormales bemerken, wenden Sie sich an das Geschäft, in dem Sie das Produkt erworben haben, für einen Ersatz oder eine Erstattung.
-
Page 5: Środki Ostrożności
Środki ostrożności Polski ■ Przed przystąpieniem do montażu należy zapoznać się ze zrozumieniem z treścią tego podręcznika. ■ Przed przystąpieniem do montażu należy sprawdzić produkt i podzespoły. W razie stwierdzenia nieprawidłowości należy skontaktować się ze sklepem, w którym produkt został zakupiony, aby wy mienić... - Page 6 Tedbirler Türk ■ Kurmadan önce bu kılavuzu dikkatlice okuyun. ■ Kurmadan önce ürünü ve bileşenleri kontrol edin. Herhangi bir anormallik bulursanız, değiştirme veya iade için ürünü satın aldığınız yer ile iletişim kurun. ■ Ürünü kurarken kazaları önlemek için eldiven takın. ■...
-
Page 7: Specifications
Side 120mm / 240mm / 360mm Rear 120mm / 140mm Power, Power LED, Reset, 1 x USB Type-C, HD Audio, I/O Ports 2 x USB 3.0, Monitoring Cable(P50 DS) 480mm 240mm Accessories component M a n u a l User’s... - Page 8 I/O Ports Part ⓐ USB 3.0 ⓑ Microphone Headphone Jack ⓐ ⓑ ⓒ ⓓ ⓔ ⓒ USB Type-C ⓓ Reset & LED Button ⓔ Power Button ⓕ It is possible to switch from the LED button to the Reset button by adjusting the cable connections. ARGB controller ARGB LED 1~4 / 3-Pin ARGB Connector...
-
Page 9: Motherboard Installation
1. Removing the side / front panels 2. Removing the top cover / bottom dust filter 3. Motherboard installation Motherboard Stand-off MB Screw... - Page 10 3-1. Motherboard size 3) Mini-ITX 1) ATX 2) mATX 4. Graphic card installation PCI Screw PSU / VGA Screw 5. 2.5’’ and 3.5’’ SSD / HDD installation...
- Page 11 HDD Screw SSD Screw...
-
Page 12: Psu Installation
6. PSU installation PSU / VGA Screw Thumb Screw 7. Removing the PSU cover... -
Page 13: Radiator Installation
8. Radiator installation 1) Installing the top radiator 2) Installing the side radiator 2) Installing the rear radiator ・120mm / 140mm/ 240mm / ・120mm / 240mm / 360mm ・120mm / 140mm 280mm / 360mm 9. Fan installation 1) Installing the top fans 2) Installing the side fans 3) Installing the rear / bottom fans ・3 x 120mm, 2 x 140mm... - Page 14 POWER LED+ Reset RESET SW HD Audio USB 3.0 USB3.1 Gen2 Type-C Monitoring Cable (P50 DS) 12. Software Give visit ZALMAN official website (https://www.zalman.com) to find the corresponding product software and install it. Supported operating system : win 10 and above...
- Page 15 ① 방문 접수 : www.zalman.com 접속 및 회원가입 후 서비스 신청 접수 → 접수하신 제품 지참 후 방문 ② 택배 접수 : www.zalman.com 접속 및 회원가입 후 서비스 신청 접수 → 성명, 연락처, 증상 기재 후 택배 선불 발송 3) 접수처...
