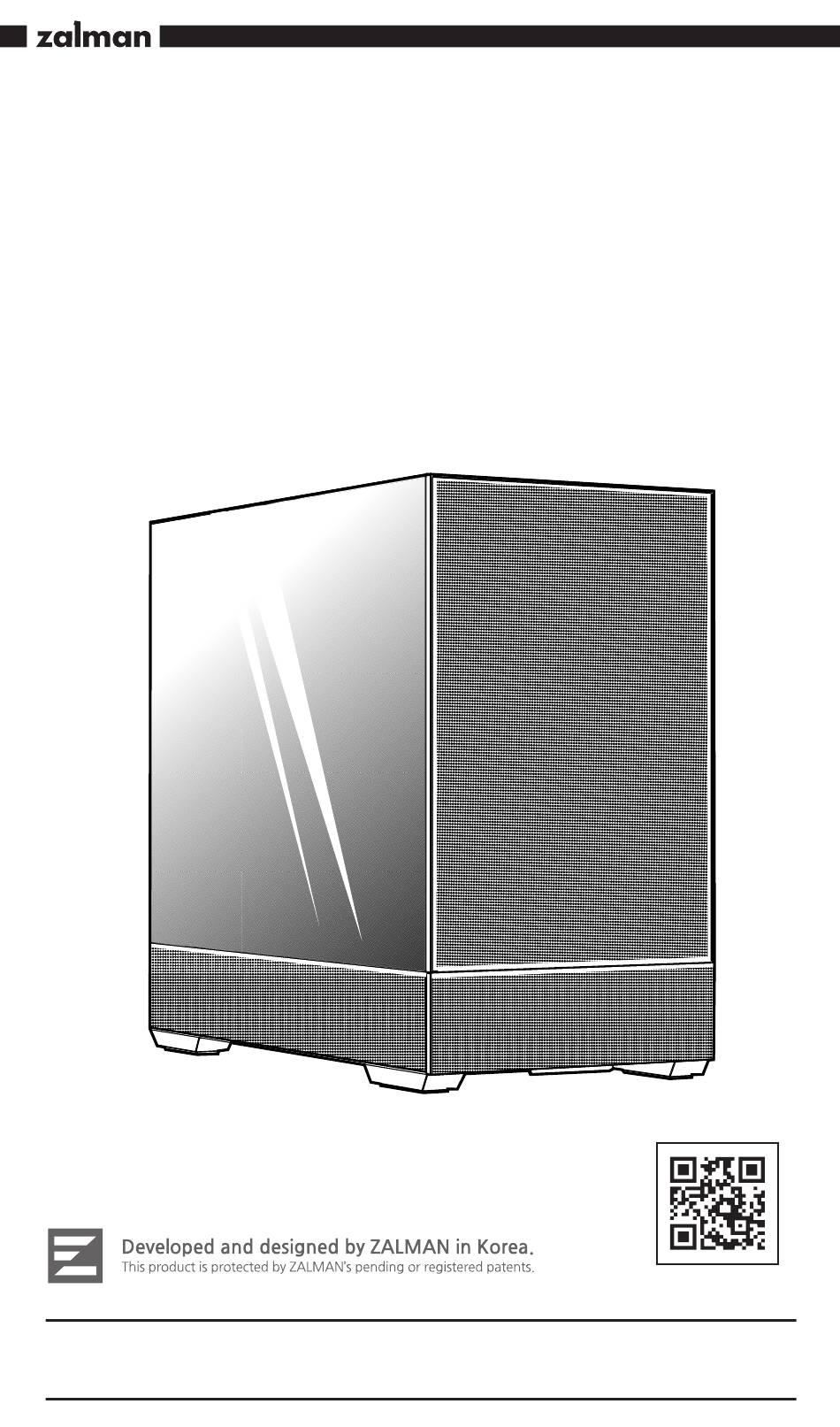

- Page 1 P30 AIR Micro-ATX Mini Tower Computer Case User's Manual Ver.120823 www.zalman.com ※ To ensure safe and easy installation, please read the following precautions. ※ Product design and specifications may be revised to improve quality and performance without notice.
- Page 2 P30 AIR Precautions English ■ Read this manual carefully before installing. ■ Check the product and components before installing. If you find any abnormalities, contactthe location where you purchased the product for a replacement or refund. ■ Wear gloves to prevent accidents when installing the product.
-
Page 3: Меры Предосторожности
Precauciones Español ■ Lea atentamente este manual antes de la instalación. ■ Compruebe el producto y los componentes antes de instalarlos. Si encuentra alguna anomalía, comuníquese con la ubicación donde compró el producto para un reemplazo o un reembolso. ■ Use guantes para evitar accidentes al instalar el producto. ■... - Page 4 P30 AIR Sicherheitshinweise Deutsch ■ Lesen Sie diese Anleitung sorgfältig durch, bevor Sie mit der Montage beginnen. ■ Prüfen Sie das Produkt und alle Komponenten, bevor Sie mit der Montage beginnen. Wenn Sie etwas Unnormales bemerken, wenden Sie sich an das Geschäft, in dem Sie das Produkt erworben haben, für einen Ersatz oder eine Erstattung.
-
Page 5: Środki Ostrożności
Środki ostrożności Polski ■ Przed przystąpieniem do montażu należy zapoznać się ze zrozumieniem z treścią tego podręcznika. ■ Przed przystąpieniem do montażu należy sprawdzić produkt i podzespoły. W razie stwierdzenia nieprawidłowości należy skontaktować się ze sklepem, w którym produkt został zakupiony, aby wy mienić... - Page 6 P30 AIR Tedbirler Türk ■ Kurmadan önce bu kılavuzu dikkatlice okuyun. ■ Kurmadan önce ürünü ve bileşenleri kontrol edin. Herhangi bir anormallik bulursanız, değiştirme veya iade için ürünü satın aldığınız yer ile iletişim kurun. ■ Ürünü kurarken kazaları önlemek için eldiven takın.
-
Page 7: Specifications
Specifications Model P30 AIR Case Form Factor Micro-ATX Mini Tower Dimensions 452(L) x 235(W) x 420(H) mm Weight 7.6kg Case Materials Plastic, Steel, Tempered Glass Motherboard Support mATX / Mini-ITX Maximum VGA Length 392mm Maximum CPU Cooler Height 181mm Maximum PSU Length... -
Page 8: Removing The Front Panel
P30 AIR I/O Ports Part ⓐ Power Button ⓑ Reset Button ⓒ HDD / Power LED ⓓ Microphone Headphone Jack ⓔ USB 3.0 ⓕ USB Type-C ⓐ ⓑ ⓒ ⓓ ⓔ ⓕ 1. Removing the front panel 2. Removing the side panels... -
Page 9: Motherboard Installation
3. Motherboard installation Motherboard Standoff SSD / MB Screw 3-1. Motherboard size 1) mATX 2) Mini-ITX 4. Graphic card installation PSU / VGA Screw... - Page 10 P30 AIR 4-1. Graphic card holder 5. 2.5’’ SSD installation SSD / MB Screw Thumb Screw PSU / VGA Screw SSD / MB Screw...
- Page 11 6. 2.5’’ and 3.5’’ SSD / HDD installation HDD Screw SSD / MB Screw HDD Screw 3.5" HDD SSD / MB Screw 2.5" SSD...
-
Page 12: Psu Installation
P30 AIR PSU / VGA Screw 7. PSU installation PSU / VGA Screw 8. Radiator installation 1) Installing the top radiator 2) Installing the rear radiator ・120mm, 140mm, 240mm, ・120mm , 140mm 280mm, 360mm... -
Page 13: Fan Installation
9. Fan installation 1) Installing the top fans 2) Installing the front fans 3) Installing the rear / bottom fans ・3 x 120mm, 2 x 140mm ・2 x 120mm, 2 x 140mm ・1 x 120mm, 1 x 140mm / 3 x 120mm, 2 x 140mm 10. - Page 14 P30 AIR MEMO...
