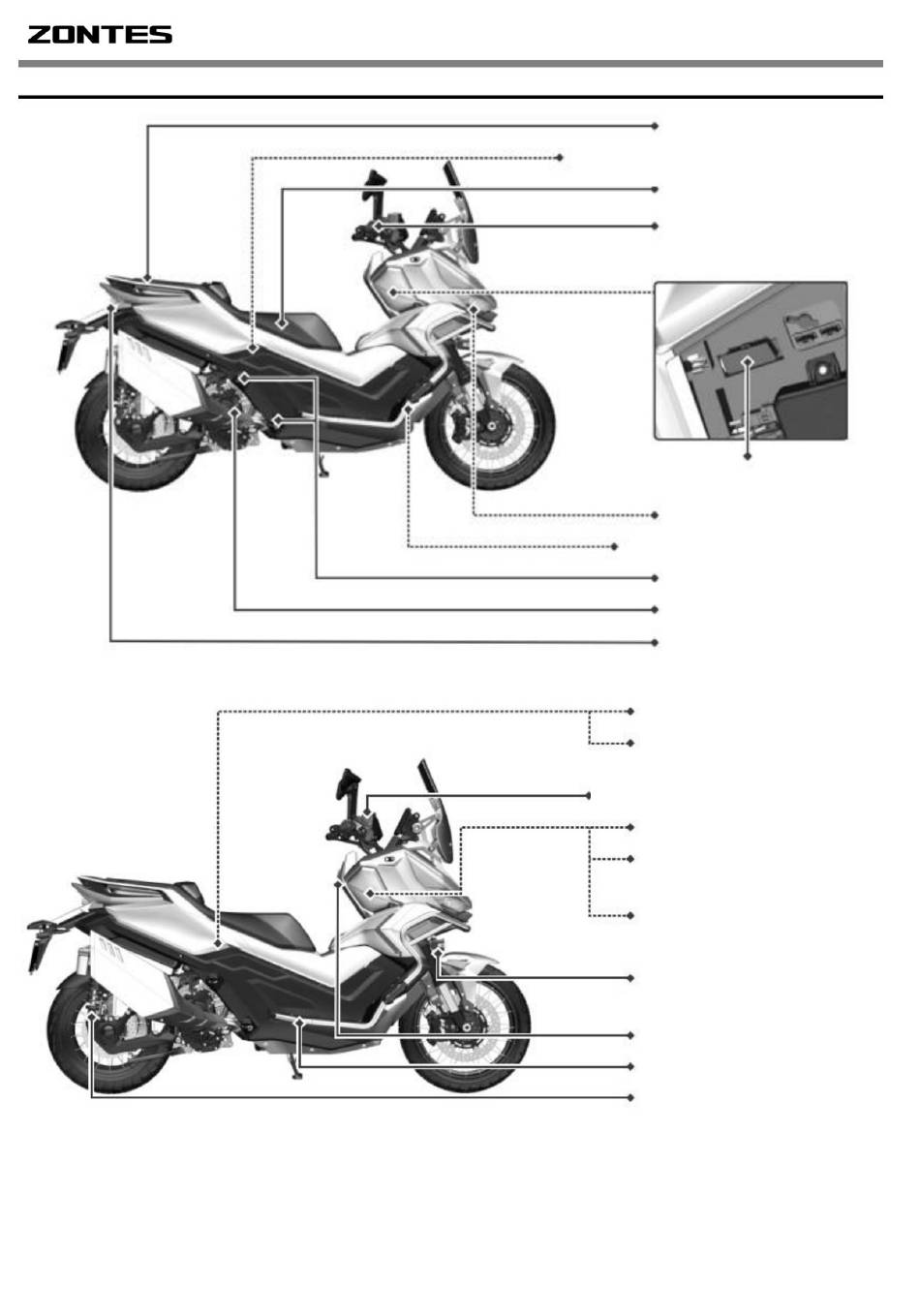

2. CHECKPOINTS
USB, Type C
brake fluid
reservoir
4
Passenger
handrail
Saddle
Throttle handle
OBDII diagnostic port
Battery
Expansion tank
Right footboard
Oil dipstick
Rear camera
Storage space Tools
Front
Charger socket PKE unit
PKE inductive antenna
Fog lights
Hook
Floor
Rear shock absorber
