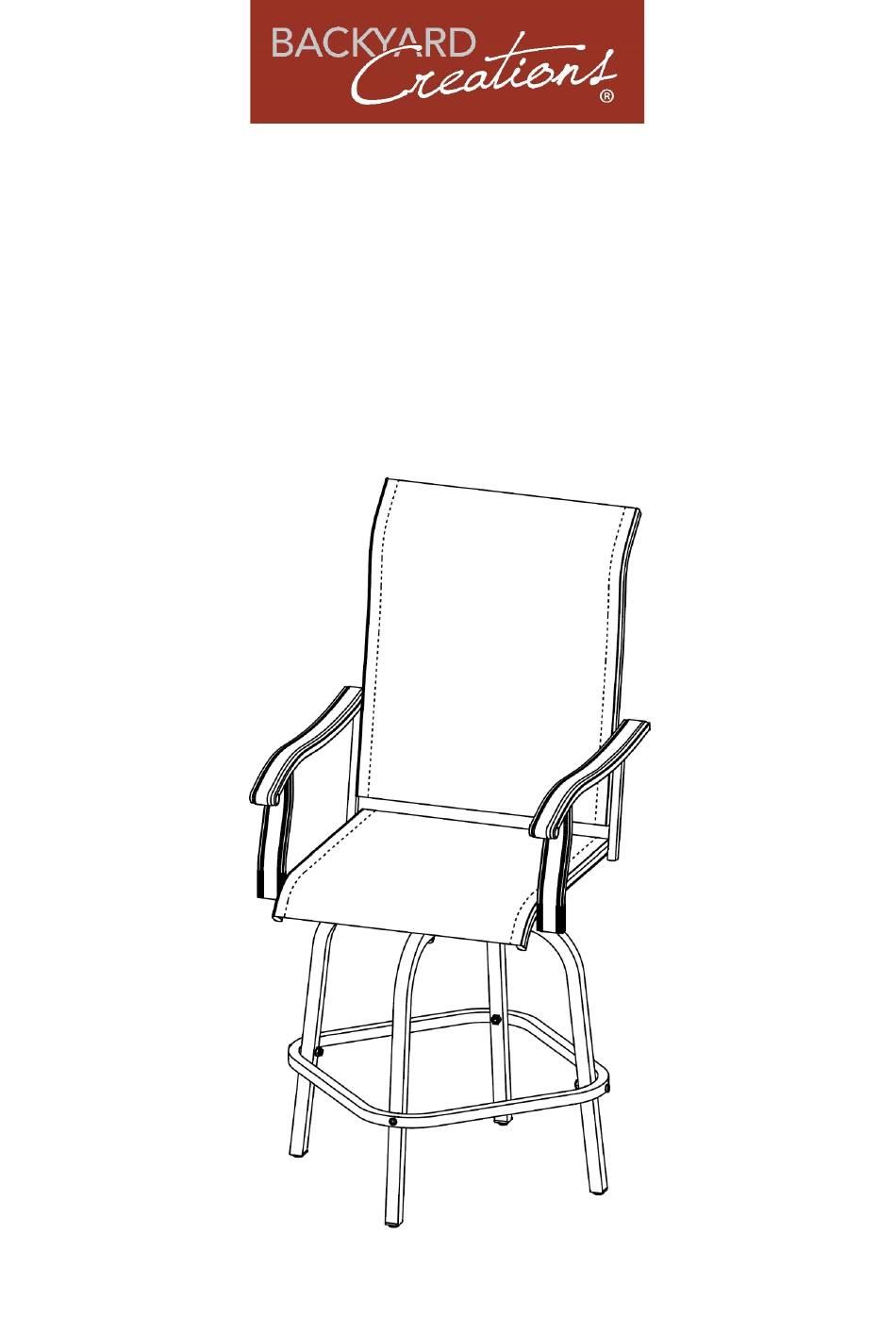

- Page 1 Owner’s Manual Ledgeview Swivel Bar Chair Model Number: LED-SWV-2PK SKU Number: 272-1823 1 of 11...
- Page 2 Parts List – Swivel Chair (Set of 2) Letter Illustration Description Qty. Letter Illustration Description Qty. Right Arm M6 x 55mm Bolt 12mm Steel Left Arm Washer 14mm Steel Chair Seat Washer Chair Back M6 Nut Chair Leg Allen Wrench Chair Leg Open Wrench Adjustable Chair...
- Page 3 Assembly Instructions Ledgeview Swivel Bar Chair Note: For video instructions please visit: https://insideout.store/video-assembly-instructions/ Important: ⚫ Read all the instructions before assembly. Failure to do so may result in faulty assembly and potential injury. Before assembling the product, remove all protective materials, hardware kit(s), and identify all ⚫...
- Page 4 Step 2: Place the Footrest (G) over the top of Chair Legs (E and F) and loosely attach using Bolt (K), Washer (L) and Nut (N). Repeat for all Chair Legs. Tighten all Bolts. Attach Bolt Caps (R) and Nut Caps (S).
- Page 5 Step 3: Attach the bottom of the Chair Swivel Plate (H) to the top of the Chair Legs (E and F) using Bolt (J), Washers (M), and Nut (N). Repeat for each corner on Swivel Plate. Tighten all Bolts. Attach Bolt Caps (R) and Nut Caps (S).
- Page 6 Step 4: Attach the Chair Seat (C) to the top of the Swivel Plate (H) using Bolt (I), Washers (M), and Nut (N). Repeat for each corner on Swivel Plate. Tighten all Bolts. Attach Bolt Caps (R) and Nut Caps (S).
- Page 7 Step 5: Attach the front and back of the Right Arm (A) to the Chair Seat (C) using Bolt (I), Washer (L). Tighten bolts after Step 7. See Figure 5. Figure 5 7 of 11...
- Page 8 Step 6: Attach the front and back of the Left Arm (B) to the Chair Seat (C) using Bolt (I), Washer (L). Tighten bolts after Step 7. See Figure 6. Figure 6 8 of 11...
- Page 9 Step 7: Attach the Chair Back (D) to the Right and Left Arms (A, B) using Bolt (I), Washer (L). Tighten all Bolts. Attach all Bolt Caps (R). See Figure 7. Figure 7 9 of 11...
- Page 10 Step 8: Congratulations! Your Swivel Bar Chair is completely assembled. Enjoy with a beverage of your choice! Figure 8 Note: Please see our video for additional assembly assistance: https://insideout.store/video-assembly-instructions/ 10 of 11...
-
Page 11: Warranty
Maintenance & Care Maintenance is required for all outdoor furniture and accessories. Inspect all hardware thoroughly before use and during the season to make sure bolts are securely fastened. Use furniture covers or store out of the elements when not in use. Failure to maintain the furniture will void warranty. Frame: Clean frames with a mild soap and warm water.
