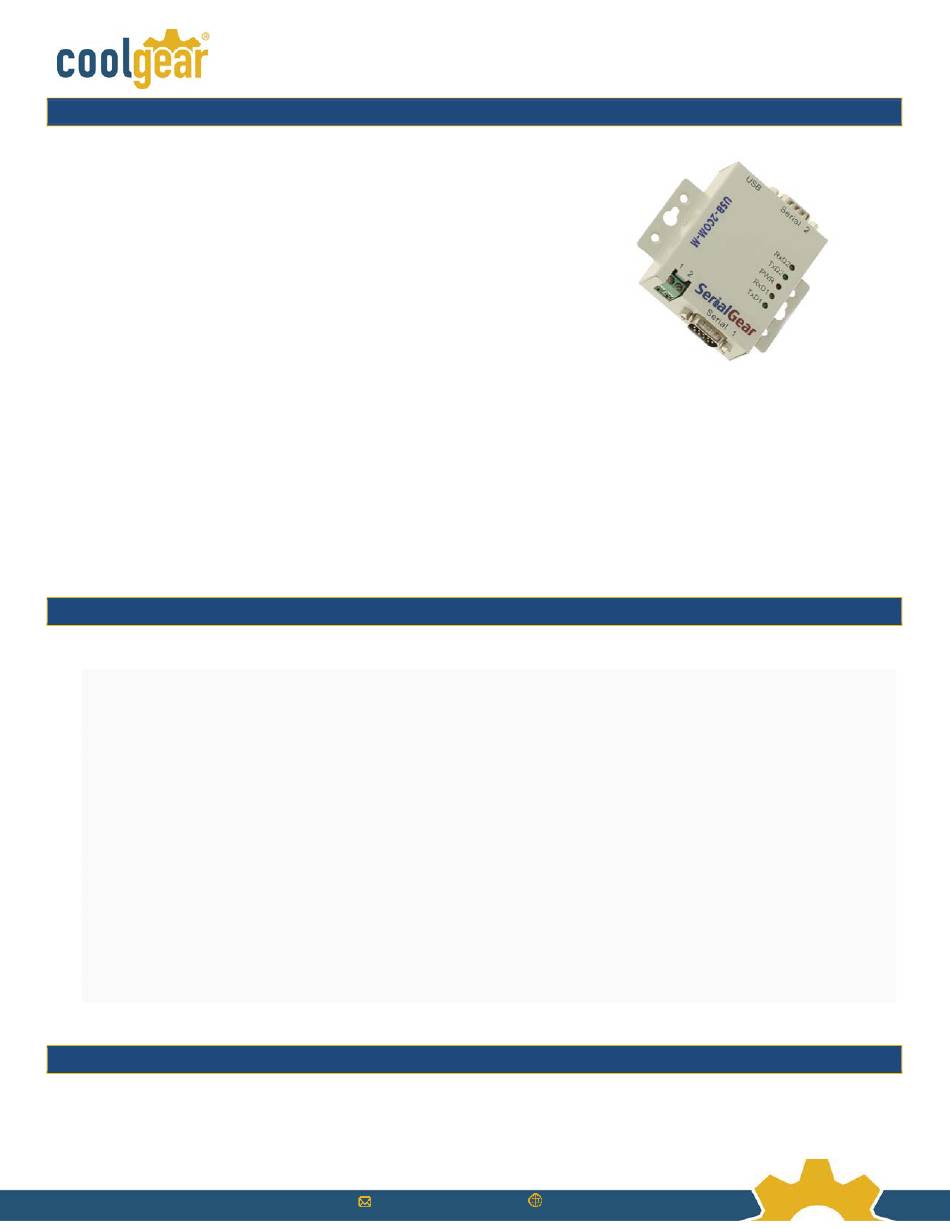

CoolGear USB-2COM-M User Manual

USB-2COM-M Rugged Metal RS-232 DB-9 Serial Adapter User Manual
The USB-2COM-M USB to 2-Port Rugged Metal Serial Adapter is
designed to make serial port expansion quick and simple. Connecting
to a USB port on your computer or USB hub, the USB Serial Adapter
instantly adds serial communication port to your system. By taking
advantage of the USB bus, the USB Serial Adapter makes it easier than
ever to add serial port and serial device to your system with easy plug-
and-play and hot plug features. Adapting the new technology, the
serial port expansion now takes the new bus with easy and convenient
connectivity.
Plugging the USB Serial Adapter to the USB port, the adapter is
automatically detected and installed. There are no IRQ & COM port
conflicts, since the port doesn't require any additional IRQ, DMA,
memory as resources on the system. The RS-232 port functions as native Windows COM port, and it is compatible with
Windows serial communication applications. Each port is individually configurable.
The USB Serial Adapter provides instant connectivity to RS-232 communication device for factory automation
equipment, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminal and serial
communication in harsh environment. The USB to Serial Adapter is suitable for remote access, retail and industrial
application, data collection and other applications requiring high speed RS-232 communication ports.
Features
Adds two industrial RS-232 serial ports by connecting to a USB port
•
Optional feature to supply power output of 5V, 150mA through PIN-1 & 2 of terminal block to the serial devices
•
requiring power
Installed as standard Windows COM port
•
SECC metal chassis with DIN rail bracket
•
Full RS-232 modem control signals and hardware/software flow control
•
RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
•
High speed serial port with the baud rate up to 921.6K bps
•
128 byte transmit FIFO & 384 byte receive FIFO
•
Non-standard baud rates supported
•
LEDs of Power, TxD and RxD for easy port monitoring and diagnostics
•
Serial port protected with surge protection of 10KV
•
Powered by USB port, no external power adapter required
•
Easy plug and play installation and RS-232 device connection
•
COM port number assigned can be changed to any COM port number required
•
Works with USB 1.1 & 2.0 host port
•
Power Requirement
If your USB to Serial Adapter is provided with external power adapter, you need to plug the power adapter to the power
source after driver installation.
Sales@coolgear.com www.CoolGear.com
USB-2COM-M
