PART # 13-091
50 AMP
DC Converter
(48/36V-12V)
INSTALLATION
INSTRUCTIONS
INCLUDED:
Converter
Flying Lead
Harness
Reliance recommends professional installation. If you choose not to have this product installed by a professional, we
highly recommend that you exercise caution, care, and patience when installing this product.
TOOLS NEEDED:
13-091
Wire Stripper/Cutters
Components
Cordless Drill
YELLOW: 48V/36V Input (+) From Battery
GREEN: 48V/36V Switched Input (+) From Key Switch
BLACK: 12V Output (-)
RED: 12V Switched Output (+)
GREY: Input 48V/36V (-) From Battery
NOTE: If installing this product on an E-Z-GO RXV
please see special instructions on next page.
DC CONVERTER
GREY
YELLOW
GREEN
BLACK
RED
Advertisement
Related Manuals for Reliance 13-091
Summary of Contents for Reliance 13-091

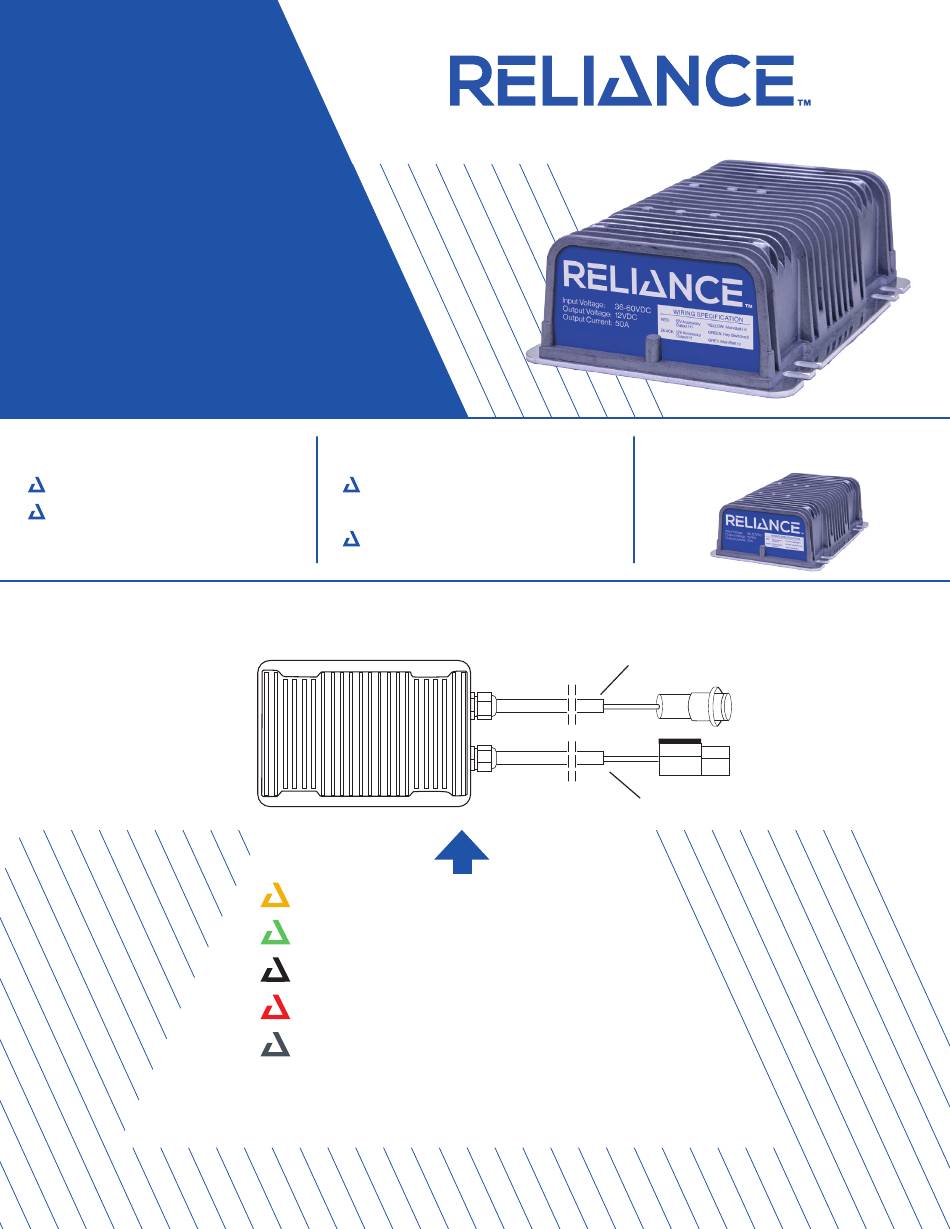

- Page 1 Wire Stripper/Cutters Flying Lead Components Harness Cordless Drill Reliance recommends professional installation. If you choose not to have this product installed by a professional, we highly recommend that you exercise caution, care, and patience when installing this product. GREY YELLOW GREEN...
- Page 2 IMPORTANT In order to ensure proper function of your Reliance DC to DC converter, you must first determine your main positive and negative battery terminals. Wires (3 yellow) and (2 Grey) MUST be connected across your entire battery pack and wire (4 green) MUST be connected to your key switch. In 48V applications, not connecting the converter across the entire battery pack will result in an uneven draw which could shorten the life of your battery pack.
