PART # 13-092
30 AMP
DC Converter
(72-12 Volts)
INSTALLATION
INSTRUCTIONS
INCLUDED:
Converter
Flying Lead
Harness
Reliance recommends professional installation. If you choose not to have this product installed by a professional, we
highly recommend that you exercise caution, care, and patience when installing this product.
TOOLS NEEDED:
Wire Stripper/Cutters
Components
Cordless Drill
YELLOW: 72V Input (+) From Battery
GREEN: 72V Switched Input (+) From Key Switch
BLACK: 72V Input Ground (-) From Battery
RED: 12V Switched Output (+) Turns ON Via Key Switch
BLUE: 12V Constant Output (+) Always 12V Constant Power ON
NOTE: If installing this product on an E-Z-GO RXV
please see special instructions on next page.
DC CONVERTER
Advertisement
Related Manuals for Reliance 13-092
Summary of Contents for Reliance 13-092

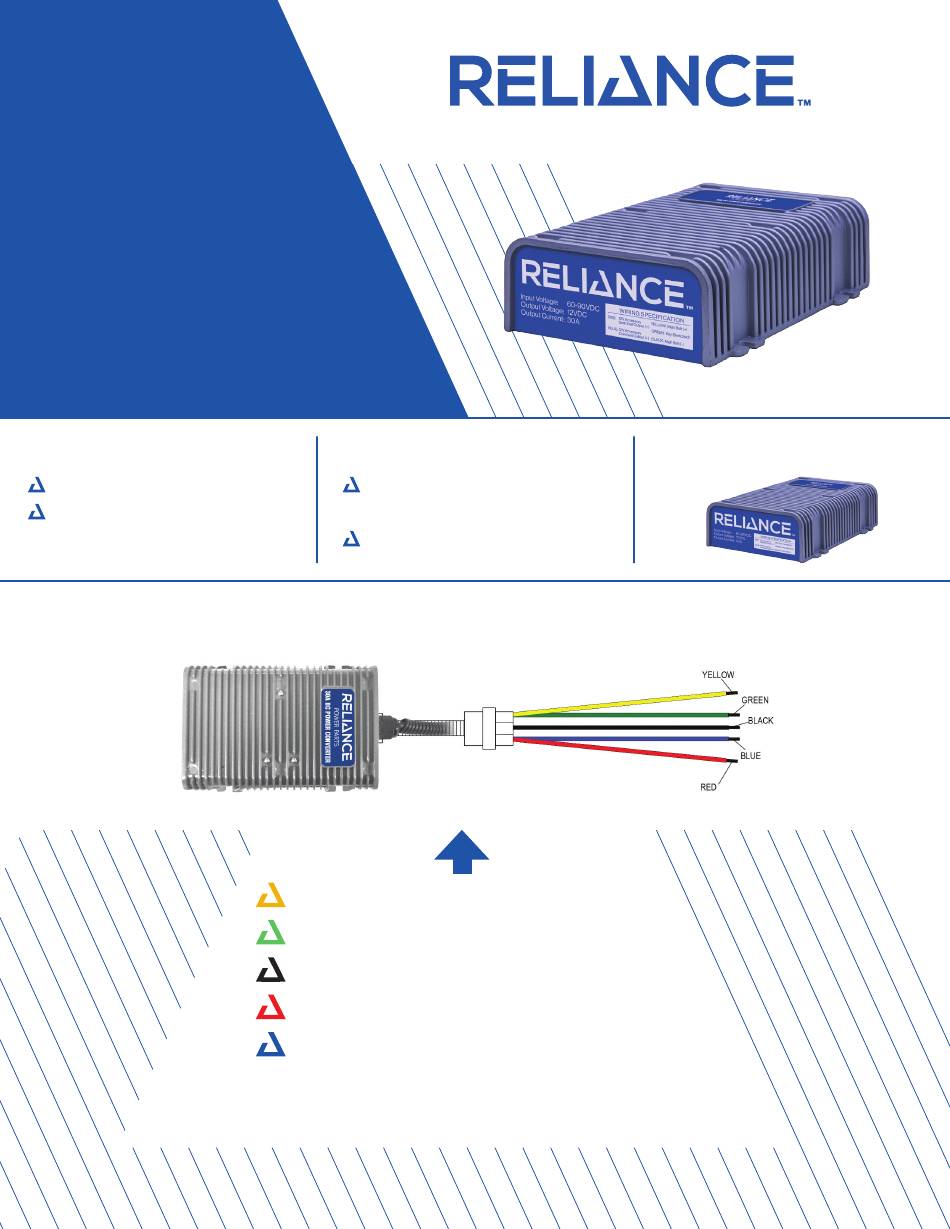

- Page 1 Components Harness Cordless Drill Reliance recommends professional installation. If you choose not to have this product installed by a professional, we highly recommend that you exercise caution, care, and patience when installing this product. YELLOW: 72V Input (+) From Battery...
- Page 2 IMPORTANT In order to ensure proper function of your Reliance DC to DC converter, you must first determine your main positive and negative battery terminals. Wires (3 yellow) and (5 black) MUST be connected across your entire battery pack and wire (4 green) MUST be connected to your key switch. During normal operation, the Reliance DC to DC converter will generate a significant amount of heat.
