Part # 13-030

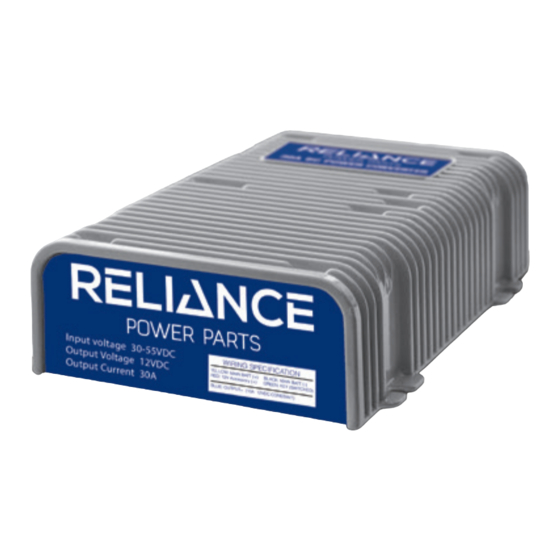

1230 DC CONVERTER
installation instructions
included:
tools needed:
(not supplied)
DC Converter
Wire Stripper/Cutters
Pigtail Harness
Cordless Drill
Mounting Screws
Reliance recommends professional installation. If you choose to not have this product installed
by a professional, we highly recommend that you exercise caution, care, and patience when
installing this product.

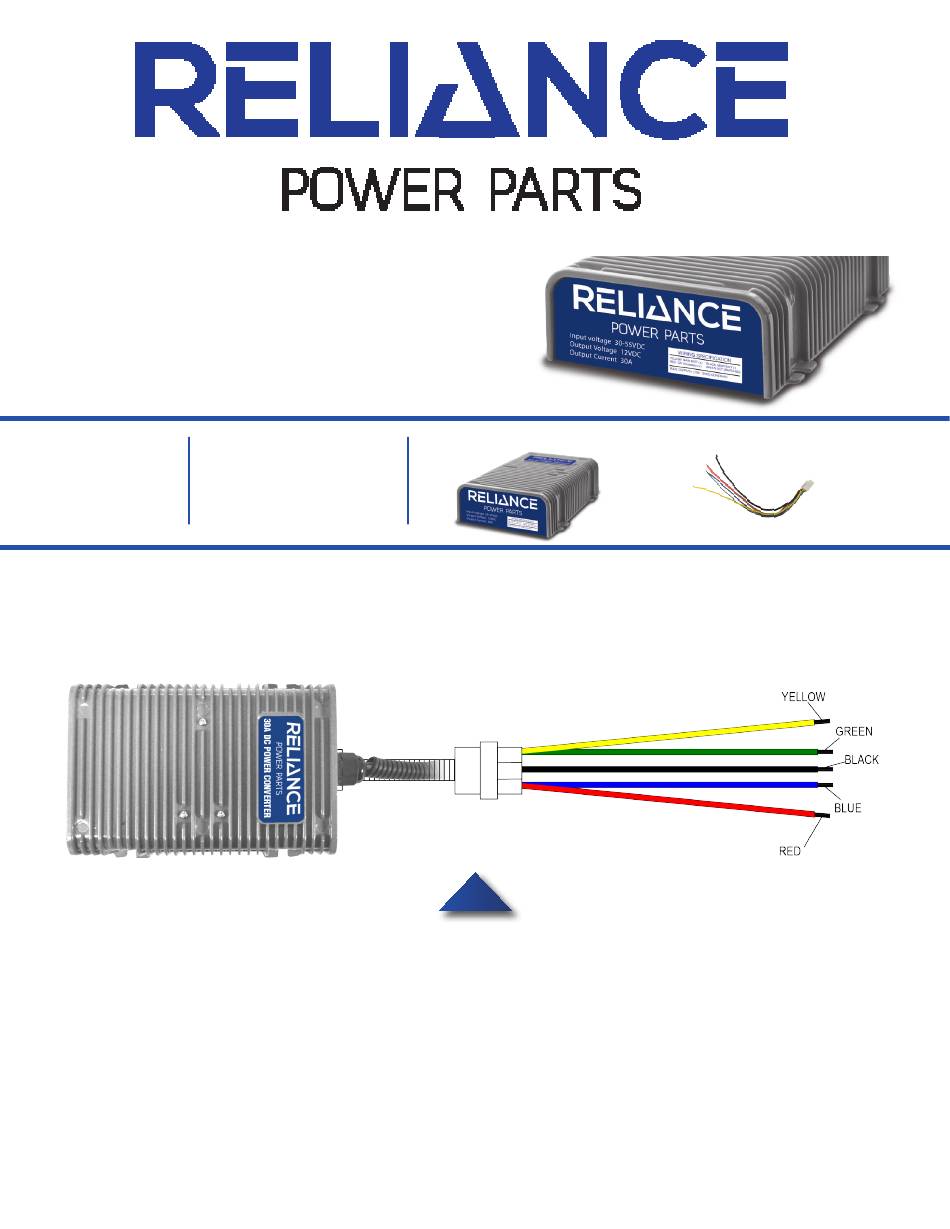

Yellow:
Green:
Black:
Red:
Blue:
NOTE: If installing this product on a E-Z-GO RXV
Please see special instructions on next page.
1
48v/36v Input (+) From Battery
48v/36v Switched Input (+) From Keyswitch
Ground (-) From Battery
12v Switched Output (+)
12v Constant Output (+)
DC CONVERTER
Wiring Pigtail
Advertisement
Table of Contents
Related Manuals for Reliance 13-030
Summary of Contents for Reliance 13-030
- Page 1 Wire Stripper/Cutters Pigtail Harness Cordless Drill Mounting Screws Reliance recommends professional installation. If you choose to not have this product installed by a professional, we highly recommend that you exercise caution, care, and patience when installing this product. Yellow: 48v/36v Input (+) From Battery...
- Page 2 IMPORTANT In order to ensure proper function of your reliance DC to DC Converter, you must first deter- mine your main positive and negative battery terminals. Wires 3 and MUST be connected across MUST be connected to your keyswitch. In 48V applications,...
