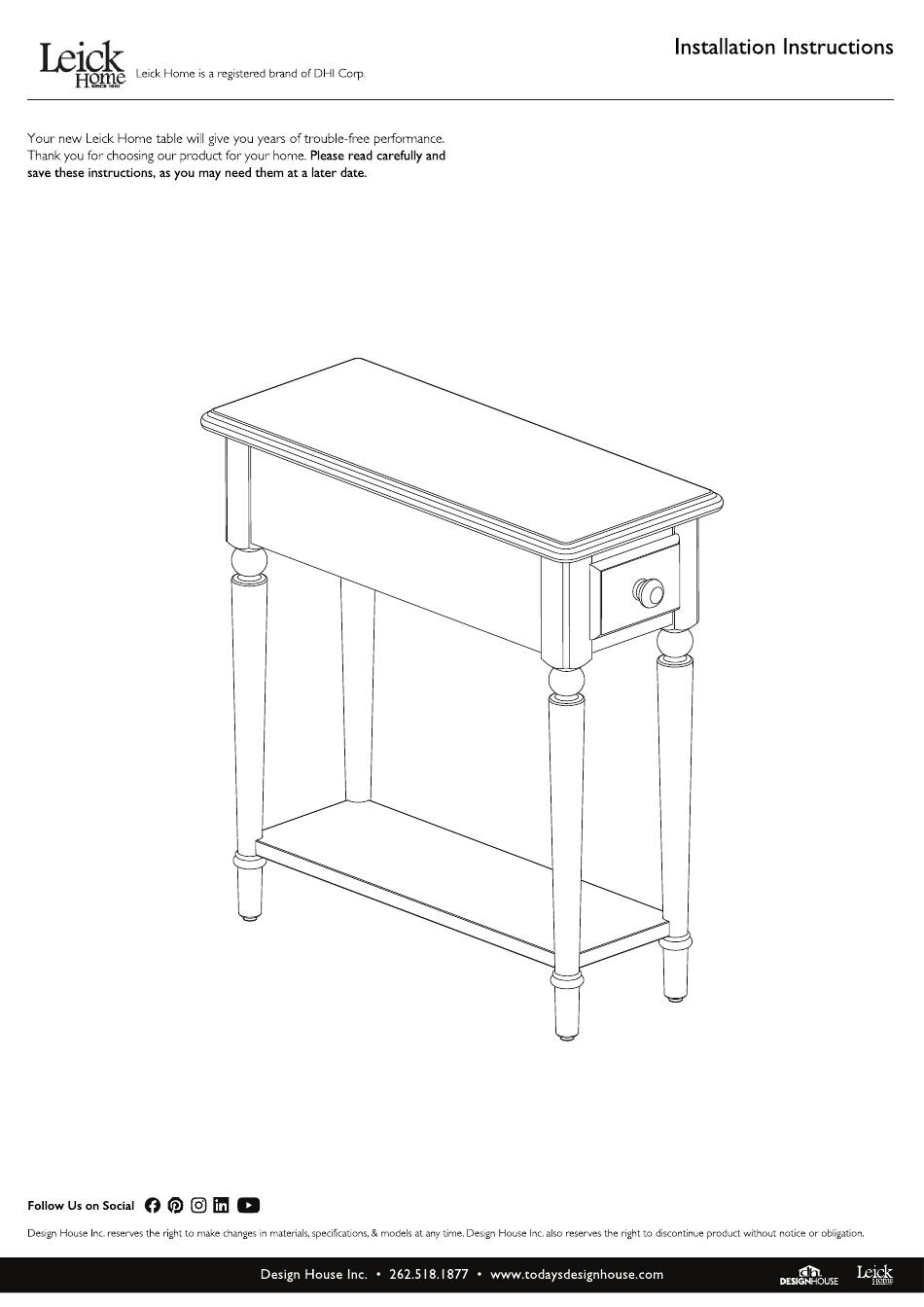

- Page 1 Coastal Narrow Side Table Model #20017...
-
Page 2: Parts Included
Coastal Narrow Side Table Model #20017 PARTS INCLUDED Please confirm all parts are available before starting assembly. HARDWARE INCLUDED Please confirm all hardware available before assembly. Qty. Ref. Bolts 1/4 x 40 mm Screw ø4,5 x 35 mm Hex Key... - Page 3 Coastal Narrow Side Table Model #20017 Figure 1 Place the top assembly upside down and remove the dowels, and then pull out the drawer. Clean surface Fasten the legs with ( 6 ) bolts ( A ) Figure 2 and hex key ( B ). Clean surface Bolts 1/4 x 40 mm Hex Key...
- Page 4 Coastal Narrow Side Table Model #20017 Figure 3 Fasten the shelf to the legs with ( 3 ) screws ( B ). Ask for another set of hands to help hold the shelf while the bolts are inserted. Ø4,5 x 35 mm Figure 4 Fasten the leg with ( 2 ) Bolts ( A ) and hex key ( C ).
- Page 5 Coastal Narrow Side Table Model #20017 Figure 5 Place the drawer in the cabinet and insert the dowels into the holes to lock the drawer Figure 6 Final Assembly...
