Page 1: Table Of Contents

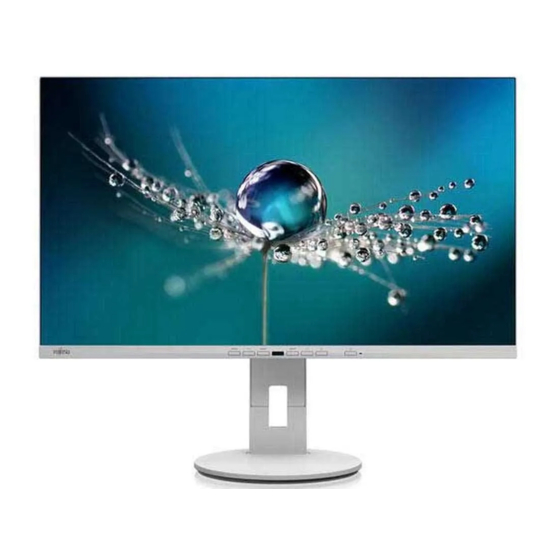

Disassembly and repairs Display B2711 TE FHD Display B2711 TS FHD Version date 20.12.2022 Disassembly and repairs Category Contents Disassembly and Repair Information on the installation and removal of components Tools Disassembly Monitor Exploded Drawing Replaceable Components and Services Disposal information for recycling companies... -
Page 2: Disassembly And Repair
Disassembly and Repair We recommend printing out the relevant sections of this chapter prior to installation as the device for installing/removing hardware components needs to be switched off. In order to repair the display, please follow the disassembly instructions to remove the defect part, replace it with spare part, then follow the instructions in reverse order. -
Page 3: Information On The Installation And Removal Of Components
Information on the installation and removal of components Please pay attention to the locking mechanism (indentations and centring pins) when installing hardware components. Note that some components on the mainboard may be very hot if the device was in use shortly before the case was removed. Utmost care is required during installation and removal to avoid damaging components. -
Page 4: Tools
Tools Screwdriver: Pozidriv PZ 2 Screwdriver: Phillips PH 1 Hexagon Screwdriver size 5 Flat Head Screwdriver Page 4 of 13... -
Page 5: Disassembly
Disassembly Step Figure Description Remove the Remove the screws to Stand Base remove the Assembly. stand base assy. Remove the rear Remove the rear cover cover Disconnect the Disconnect the flex foil cable to flex foil cable. remove the rear cover. - Page 6 Remove the Remove the tapes and the tapes and the flex foil cable flex foil cable Remove the Remove the screws to screws to remove the remove the middle frame middle frame and the panel and the panel Take off the tape Take off the tape and disconnect the and disconnect...
- Page 7 Remove the Remove the screws to main board and remove the main board and power power board board Remove the Remove the connectors connect flex foil cable Page 7 of 13...
- Page 8 Remove the Remove the speakers speakers The panel The panel Remove the screws to remove the key board The key board Page 8 of 13...
- Page 9 The middle frame The middle frame Remove the The USB board screw to remove the USB board. The Rear Cover The Rear Cover Page 9 of 13...
-
Page 10: Monitor Exploded Drawing
Monitor Exploded Drawing Page 10 of 13... -
Page 11: Replaceable Components And Services
Spare parts availability 7 years after end of product life How to obtain spare parts https://docs.ts.fujitsu.com/dl.aspx?id=3e31d2de-d35f-4163-80ee-329dae20b6b7 Product related services – https://docs.ts.fujitsu.com/dl.aspx?id=aae0a6a3-5b6e-4f82-99d7-6956055e4312 Comprehensive offerings at a glance Fujitsu product support hardware https://www.fujitsu.com/emeia/products/product-support-services/hardware-maintenance Fujitsu Troubleshooting and Support https://support.ts.fujitsu.com/Index.asp?lng=COM Page 11 of 13... -
Page 12: Disposal Information For Recycling Companies
Disposal information for recycling companies These instructions are for the complete dismantling of a Fujitsu product. All materials can thereby be disposed of according to their provision in the EC directive 2012/19/EC (Waste Electrical and Electronic Equipment (WEEE)). Display Product group:... - Page 13 Materials which must be disposed of in a special manner Designation Remarks Quantity Plastics which contain brominated flame This product may contain plastic components containing brominated flame retardant retardants. To the best of our knowledge, we provide this information for sorting them out.
