Summary of Contents for DLS PERFORMANCE PS4.110

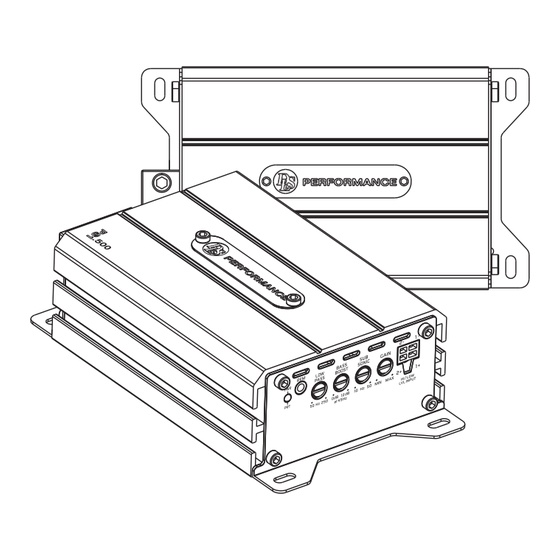

- Page 1 User manual Slim amplifiers...
- Page 2 DLS Sweden l info@dls.se l www.dls.se...
- Page 3 EU RoHS a part of: directive 2015/863/EU. Winn Scandinavia AB Idrottsvägen 37 - SE-702 32 Örebro - Sweden Tel: +46 19 20 67 65 - E-mail: info@dls.se www.dls.se Designed & Sound tuned in Sweden.
- Page 4 Pre-installation Amplifier location Important! Allow air circulation around the amplifier. The DLS Performance series of amplifiers have a compact design that allows great flexibility in mounting. You can mount it under a seat or in the trunk. When you select a location, do remember that the amplifier generates a lot of heat.
- Page 5 Tools and materials Power wiring TOOLS POWER TERMINAL (+12V) Connect the fuse holder as close to the vehicle - Insex, Flat and Phillips screwdrivers or bits. battery+ as possible, using 4 AWG /20mm or 8 - Wire cutter. AWG/10mm power cable. Use a ring crimp terminal - Wire stripper.
- Page 6 REMOTE TERMINAL (REM) HIGH LEVEL INPUT WIRING For RCA cable signal input: Most headunits are pre-installed from the car Connect the radio power antenna lead = remote factory and have no RCA output, in this case you turn on/off from the car stereo to the amplifier can take the signal from the speaker output instead.
- Page 7 Low Pass Filter - LPF Input level control - GAIN The GAIN control, MIN – MAX, PS1.500 matches the output of your radio The low pass filter is mostly used to the input of the amplifier. After for subwoofers. It will allow low fre- installation is complete, make sure quencies only and blocks higher the input of the amplifier is turned...
- Page 8 PS1.500 speaker wiring TWO 4 OHM SUBWOOFERS ONE 4 OHM OR 2 OHM SUBWOOFER NOTE! Two 4 ohm subwoofers gives a 2 ohm load NOTE! Subwoofer impedance can be 4 ohm or 2 when connected in this way. The minimum amplifier ohm.
- Page 9 PS4.110 speaker wiring FOUR FULLRANGE SPEAKERS TO CHANNEL TWO FULLRANGE SPEAKERS & SUBWOOFER 1/2/3/4 BRIDGED (3-CHANNEL MODE) Filter settings front channels (CH 1/2) The high pass filter blocks very low frequencies from Filter settings front channels (CH 1/2) reaching the speakers, mostly used to protect small The high pass filter blocks very low frequencies from speakers from deep bass.
- Page 10 PS4.110 speaker wiring TWO SUBWOOFERS BRIDGED TWO STEREO SPEAKERS BRIDGED (2-CHANNEL MODE) (2-CHANNEL MODE) Filter settings front channels (CH 1/2) Filter settings front channels (CH 1/2) The low pass filter is mostly used for subwoofers. It The high pass filter blocks very low frequencies from allows only low frequencies to reach the speakers reaching the speakers, mostly used to protect small and blocks higher frequencies.
- Page 11 2. Turn up the head units volume slightly. All value. If short circuiting continues, contact your speakers should operate. if not, check wiring local DLS dealer. A fault may be in the amplifier. connections at amplifier and speakers. To start the amplifier requires a remote voltage of 9-15 volt.
- Page 12 If noise remains regardless of cable position, try to use so called Quasi-balanced signal cables. DLS NOTE! Tweeters can not be tested this way, PRO-cables are Quasi-balanced. double check the connections instead.
- Page 13 Specifications PS4.110 PS1.500 Number of channels Amplifier class Power output RMS in 1 ohm 1x500 Watt Power output RMS in 2 ohm 4x110 Watt 1x380 Watt Power output RMS in 4 ohm 4x70 Watt 1x230 Watt Power output RMS 4 ohm bridged 2x220 Watt Signal to noise ratio, A-weighted 93dB...
- Page 14 European Economic Area (EEA). DLS products complies with the relevant provisions of the RoHS Directive for the European Union. In common with all Electrical and Electronic Equipment (EEE) the product should not be disposed of as household waste.
- Page 15 DLS Sweden l info@dls.se l www.dls.se...
