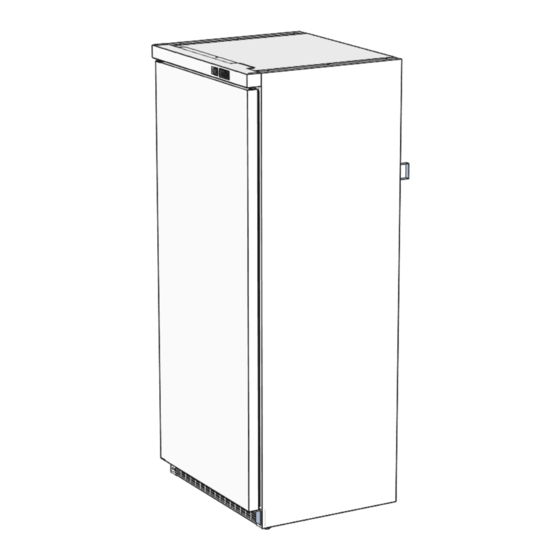

- Page 1 12/2018 Mod: N200X-R2 Production code: 19046930...
- Page 2 INSTRUCTIONS MANUAL ************** Refrigerated Cabinets (EN) Cod: 12152903 V.03...
-
Page 3: Table Of Contents
INSTALLATION, USAGE AND MAINTENANCE MANUAL CONTENTS 1 INSTALLATION ..........................10 1.0 LOCATION ..........................10 1.1 CLEANING ..........................11 1.2 GENERAL CONNECTION ..................... 12 1.3 MATRICULATION PLATE ..................... 12 1.4 START-UP ..........................13 2 USE ..............................13 2.0 USE AND LOCATION RESTRICTIONS................13 2.1 RECOMMENDATIONS ...................... -
Page 4: Cleaning
The area where the cabinet is positioned must be clear and clean, preventing the refrigerator equipment's fan from absorbing materials that are subsequently then deposited on the condenser's ribbing, reducing system efficiency. Remove the pallet, taking care not to knock the unit. The cabinet can now be levelled, screwing in or unscrewing the legs. -
Page 5: General Connection
Do not install the cabinet outdoors. A cabinet consumption table for adjusting the protection is attached Voltaje Intensidad Potencia Temperatura Medidas Modelo (ºC) (mm) 400 Refrigeration 220-240 +6 / -1 626x742x1870 600 Refrigeration 220-240 +6 / -1 780x742x1870 400 Freezing 220-240... -
Page 6: Start-Up
GENERAL MEASUREMENTS ON THE OUTSIDE OF ALL THE CABINETS AND EMERGENCY DRAINAGE ANNOTATION IN MM MODEL DIMENSIONS LENGTH DEPTH HEIGHT 1860 1860 1.4 START-UP Once the inside of the cabinet is clean, plug it into the electricity network and turn the switch to On or I. -
Page 7: Recommendations
WARNING: Do not use mechanical devices or any methods other than those recommended by the manufacturer to speed up the defrosting process. WARNING: Do not damage the refrigeration circuit. WARNING: Do not use electrical appliances inside the compartments designed for storing food unless they are of the type recommended by the manufacturer The cabinet you have purchased is designed to preserve food. -
Page 8: Limits
2.3 LIMITS The climatic class 4 operating limits established for the cabinet are: Environment límit Ambient temperature + 32 C Condensing temperature + 54 C Relative humidity MAINTENANCE With these guidelines, we would like to offer both you and the technical assistance service help so that the cabinet always works perfectly throughout its useful life. -
Page 9: Machine Check
3.2 MACHINE CHECK If you have to call for a repairperson, you can check the cabinet before ringing. In some cases, the operating faults that can occur are caused by something simple that the users themselves can solve. The following are examples: a) The refrigerator does not work Check that electricity reaches the refrigerator by checking if the power switch is on. -
Page 10: Disposal Of Old Appliances
3.4 DISPOSAL OF OLD APPLIANCES Ensure that these are disposed of in an environmentally friendly manner. Make disused old appliances unusable prior to disposal. Pull the mains plug out of the socket and disconnect the plug from the mains cable. Ensure that the product is disposed of appropriately by means of environmentally friendly disposal.
