- Page 1 06/2021 Mod: ID40-R6 Production code: 801054_100...

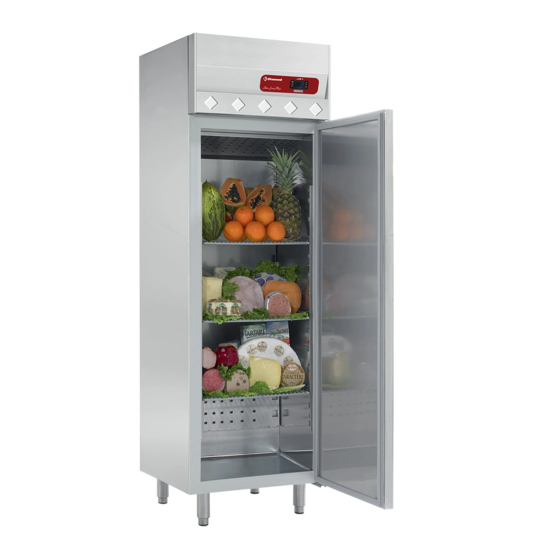

- Page 2 HORECA MODELS (EN) Operating and Maintenance Manual "Original instructions"...
- Page 3 ENGLISH ………………………………………………………………………………..…………………………………. 25 - 45...
-
Page 4: Table Of Contents
1. General Information …………………………………..………………………………………………………………. 26 1.1. General Conditions …………………….…….………………………………………………………. 26 1.2. Restrictions of Usage and Maintenance ………………………….………….……………. 26 2. Safety Instructions ………………………….………………………………………………………….………………. 27 2.1. General Safety ………………………….………………………………………………………………. 27 2.2. Technical Safety ………………………….……………………………………………………………. 28 2.3. Recommendations for Use ……………………….………………………………………………. 30 3. Installation ………………………….………………………………………………………………………..……………. 31 3.1. -
Page 5: General Information
1. GENERAL INFORMATION 1.1. GENERAL CONDITIONS For your safety and the proper use of the equipment, please read these instructions carefully and comply with the warnings and recommendations contained therein before installing the equipment for the first time. You should keep these instructions in a safe and dry place and always accessible to the user as they contain important information on equipment installation, operation, and maintenance. -
Page 6: Safety Instructions
Note1: ARV (Vertical Refrigerated Cabinet) // 4; 36; 66; 100; 150; 200; 250; 350; 400; 430; 450; 600; 800 (size/series) Note 2: MM5 (Marecos Cabinet 500 litres); ATP (Bakery Countertop Cabinet 600x400, 500 liters); AP 600 (Pastry Cabinet GN 2/1, 600 liters); ATG 600 (Countertop Gastronomy Cabinet GN2 / 1, 600 liters);... -
Page 7: Technical Safety
Choking hazard! The package may contain cartons or films. Before connecting the equipment, check if the cable and power cord have been damaged during transport. In the event of damage, it must be replaced immediately by the manufacturer or its authorized dealer in order to avoid risk of electrocution. - Page 8 Care should be taken to ensure that the refrigerant tube is not damaged during transportation or assembly. The refrigerant may cause damage to the eyes or ignite when released. In case of damage: - Keep the equipment away from naked flames or ignition sources;...
-
Page 9: Recommendations For Use
Replacement of the electrical cable and other repairs may only be carried out by qualified service personnel in order to prevent dangerous situations. Improper installation and repairs can result in a number of hazards to the user. 2.3. USAGE RECOMMENDATIONS - Do not touch the appliance with wet or damp hands and feet;... -
Page 10: Installation
- Never use mechanical devices or other means to speed up the defrosting process other than those recommended by the manufacturer (e.g. defrosting or cleaning the appliance with a steam cleaner! The steam can reach the electrical components and cause a short circuit. Electrical shock hazard! - Do not use any pointy objects or with sharp edges to remove single or layered ice. -
Page 11: Positioning Of The Equipment
If the equipment is moved horizontally during transportation, it must remain vertically for a period of not less than six hours before being connected to the mains. Lifting, moving, and transporting the appliance without proper equipment can cause personal injury or damages. Use proper lifting means to load, unload, and move equipment whenever necessary. -
Page 12: Application Of Accessories
3.4. APPLICATION OF ACCESSORIES The following accessories must be installed as applicable: - Apply the two levellers underneath the equipment at the front by screwing them into the two holes; - Apply stainless steel feet or rollers to the holes in the lower part of the unit using an Allen key;... -
Page 13: Before Switching On
- Application of a bottle cap catcher: To Place: To Remove: 1 – Insert lower groove into the bracket 1 – Make the catcher go up 2 – Pull itu p and engage the upper groove 2 – Dislodge from the upper groove on the bracket 3 –... -
Page 14: Operation
4. OPERATION 4.1. DIGITAL THERMOSTAT MODELS 4.1.1. CAREL ON/OFF Button Set/Change Light Button Defrost PYOL1H0531 PY0L2K0532 Function Compressor Defrost Auxiliary Output Clock (RTC) (some models) Alarm Algorithms The operation of the equipment is totally controlled by the digital thermostat, which allows for the selection of temperature and controls the operation of the lighting using the button ( models with glass door and opaque door with lighting). - Page 15 The thermostat is locked at the factory, allowing only the set point to be adjusted. To do this, press the "Set" button, after the set value starts blinking, get to the desired value with the "" ▲" and " ▼" buttons and press the "Set" key again to set the value.
-
Page 16: Dixell
MODO (ENS (ENERGY SAVING)/ ECO (WHERE APPLICABLE) PJS4C4H001 ENS/ ECO - Energy saving - after 2 hours without opening the door, the equipment automatically switches to Energy saving, turning off the light and increasing the set point by + 3ºC. After 4 hours, the cabinet will return to the normal temperature. To switch from ENS/ECO to normal operation, simply open the door for more than 10 seconds or press the ES button on the digital (switch... - Page 17 The operation of the equipment is controlled in its entirety by the digital thermostat, which allows for the selection of the temperature and controls the operation of the lighting (if any). Connect the equipment to the mains. If "OFF" appears in the digital display, press the ON/OFF button for 3 seconds.
-
Page 18: Analog Thermostat Models
4.2. ANALOG THERMOSTAT MODELS Analog Thermostat Digital Thermometer The operation of the equipment is controlled by a general 0/1 switch, a lighting switch and a thermostat that allows for the temperature selection inside the unit. The range is divided into 4 positions: - Position 0: Equipment does not work;... -
Page 19: Defrosting
On digital thermostats, when the equipment is fully loaded, it is possible for the alarm to go off after 2 hours if it has not yet reached the set temperature. Press the "mute" button to turn the alarm off and wait for 12 hours for the temperature to stabilize. -
Page 20: Maintenance
Place a container under the front drain pipe, remove the plug from the inner drain hole and wait for the ice to thaw (do not use hot water). Do not use sharp objects to remove ice as these may damage the inside of the equipment. -
Page 21: Door Reversal
- Remove dust from the inside of the compressor compartment using only a dry brush or vacuum cleaner; - The cooling system parts of this unit are completely sealed. They do not require any lubrication. 6. REVERSING THE DIRECTION OF THE DOOR Instructions applicable to models ARV 36, ARV 66, ARV 150, ARV 350, ARV 450 in all versions, and in the opaque door models ACE 66, ACE 150, ARV 400, ACE 400, ASP 400, ARV 430, ACE 430, AP 600, MM5, ATP 500, and ATG 600. -
Page 22: Troubleshooting Guide
8. TROUBLESHOOTING GUIDE Problem Solution Check for power outage The Appliance is not working Check if there is current in the socket Check for the build-up of dust on the condenser Check controller setting The equipment works, but it is not Check if fans (when applicable) are very cold working or are stuck... -
Page 23: Repair Guide
8.1. REPAIR GUIDE Internal fan does not work Temperature below the limits LED lights do not light up Light does not turn off Led light flashing Does not reach the temperature, but stops and starts Suction line ice It is cold, it does not reach the temperature Possible cause / Repairs Fan wires off /Check connection •... -
Page 24: Recycling Instructions
9. RECYCLING INSTRUCTIONS 9.1. RECYCLING OF THE PACKAGING The packaging protects your equipment from damage during transportation. The materials used are reusable. Be attentive to the storage area of the products used for packaging the equipment and always keep them out of the reach of children, leaving them, whenever possible, in a place where they can be recycled.
