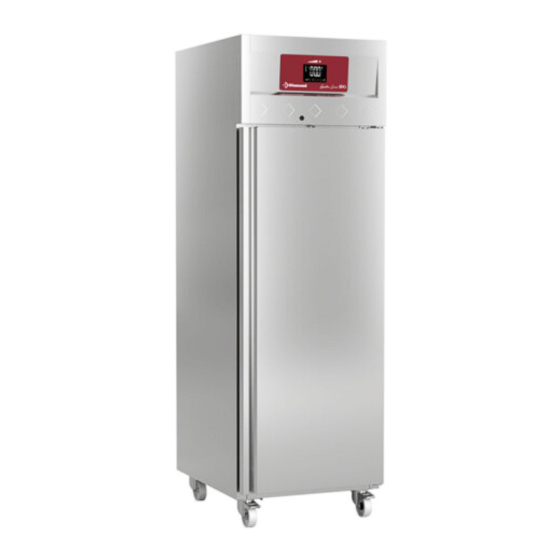

Diamond IE70/R9 Instruction Manual

Diamond IE70/R9 Instruction Manual

Refrigerated cabinets
Hide thumbs Also See for IE70/R9:

Advertisement

Quick Links

MOD : IE70/R9
Production code : 19102491
0 7 /2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the IE70/R9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Diamond IE70/R9

  • Page 1 MOD : IE70/R9 Production code : 19102491 0 7 /2023...
  • Page 2 INSTRUCTIONS MANUAL: REFRIGERATED CABINETS ************** Gastro Line Cod: 12333866...
  • Page 3 INSTALLATION, USAGE AND MAINTENANCE MANUAL CONTENTS 1 INSTALLATION ..........................16 1.0 LOCATION ..........................16 1.1 CLEANING ..........................17 1.2 GENERAL CONNECTION ..................... 17 1.3 MATRICULATION PLATE ..................... 18 1.4 START-UP ..........................19 2 USE ..............................20 2.0 USE AND LOCATION RESTRICTIONS................20 2.1 Recommendations ......................
  • Page 4: General Connection

    Remove the pallet, taking care not to knock the unit. The cabinet can now be levelled, screwing in or unscrewing the legs. When it is levelled, the protection film can be removed from the stainless steel using a blunt object, and not a cutter as it could scratch the steel. Turn clockwise to lower the unit Turn anticlockwise to raise the unit There must be a gap of 50 mm at the back and 30 mm at the sides of the cabinet when it has been...
  • Page 5 GENERAL MEASUREMENTS ON THE OUTSIDE OF ALL THE CABINETS AND EMERGENCY DRAINAGE ANNOTATION IN MM DIMENSIONS MODEL LENGTH DEPTH HEIGHT ID70/R6 ; IE70/R9 ; ID70/R6G ; IE70/R9G 2145 ID140/R9 ; IE140/R9 ; ID140/R9G ; IE140/R9G 1385 2145 EMERGENCY DRAINAGE INSTALMENT MEASUREMENTS...
  • Page 6 START-UP Once the inside of the cabinet is clean, plug it into the electricity network and turn the switch  to On or I. The thermostat temperature indicates the cabinet inner temperature.  Three minutes after turning the switch on, the compressor operating led must be permanently ...
  • Page 7 USE AND LOCATION RESTRICTIONS. This machine must not be placed outdoors, and must be protected from rain and direct sunlight. The manufacturer is not responsible for any operation not mentioned in this manual, having to be followed the next recommendations and warnings.
  • Page 8: Machine Check

    2) Protect the food and its aroma with some sort of an airtight or plastic system, arranging it so that there is good air circulation. 3) Avoid opening the doors frequently, as far as it is possible, and more importantly, do not leave them open.
  • Page 9  Check that the doors close properl  Check that the condenser is clean: You must bear in mind that the cleaner the refrigerator is the greater the energy saving, particularly the condenser’s ribbing. The frequency of this cleaning will be determined by the characteristics of the premises. If it is dirty, call the technical support service to clean it.
