Visionary D5200 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

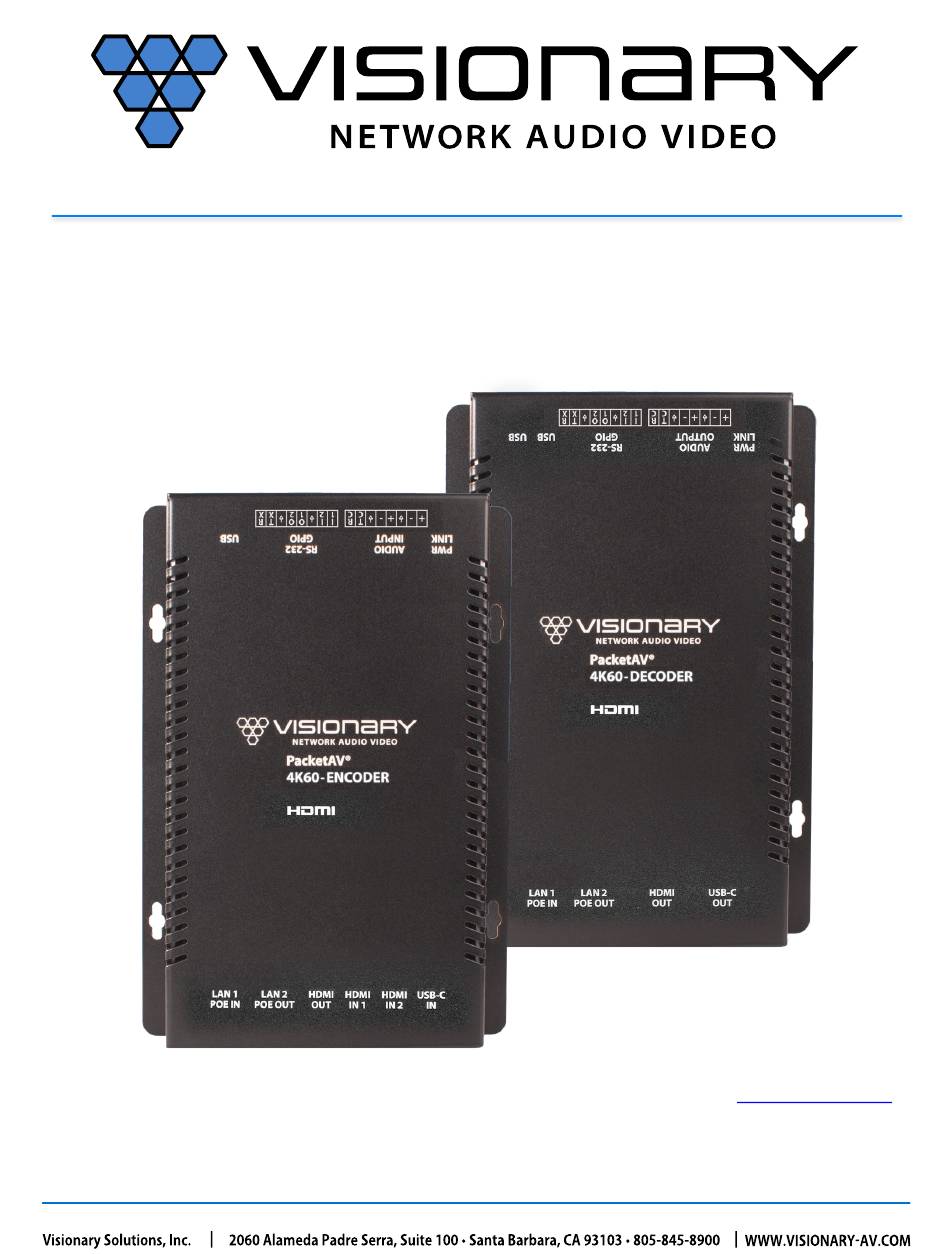

E5200 •
Encoder |
D5200 •
Decoder
User Manual
www.visionary-av.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5200 and is the answer not in the manual?

Questions and answers

Related Manuals for Visionary D5200

Summary of Contents for Visionary D5200

  • Page 1 E5200 • Encoder | D5200 • Decoder User Manual www.visionary-av.com...

  • Page 2: Table Of Contents

    IDEO ........................... 13 ETWORK ISCOVERY ....................... 16 ONFIGURATION IP A ................16 ONFIGURING NCODER AND ECODER DDRESSES E5200/D5200 LAN1 & LAN2 E ..............16 THERNET XPANSION VLAN T ..........................17 RUNK (LAN2) ....................... 18 THERNET XPANSION ’ F ..................... 18...
  • Page 3 PECIFICATIONS ©2022 Visionary Solutions, Inc. All rights reserved. PackeTV® and PacketAV® are trademarks of Visionary Solutions, Inc. in the United States and other countries. All other brand names, product names and trademarks are the property of their respective owners. Certain trademarks, registered trademarks, and trade names may be used to refer to either the entities claiming the marks and names or their products.

  • Page 4: Introduction

    Visionary Solutions products as an alternative to conventional distribution systems. PacketAV E5200/D5200 is nothing short of a paradigm shift for networked AV. True convergence is finally here; a single platform to support audio and Video over IP. Integrate 4K UHD video over IP into your audio network and bypass the constraints of traditional switch matrix systems by harnessing the flexibility and scalability of converged IP networks.

  • Page 5: Network Requirements

    Power over Ethernet (PoE) is a system that uses an PoE Ethernet switch as a power source to provide both electrical power and data over a single cable to devices on a network, such as the E5200/D5200 devices. This reduces the number of cables and power supplies that are required to power the devices in the network.

  • Page 6: Choosing A N Ethernet Switch

    1. Enable IGMP querying and snooping (set IGMP Version to IGMP V2 if the switch is capable). To enable the transmission of a source to multiple destinations, E5200/D5200 devices make use of multicast. The default behavior of a layer-2 switch is to broadcast those packets, which means that every packet will be transmitted to all possible destinations.

  • Page 7: Implementation Considerations

    ONSIDERATIONS E5200/D5200 devices can be installed on a physically separate network or converged onto an existing GbE network. When implementing, it is important to decide at the earliest stages of planning if the system will be integrated into the rest of the network or if it will reside on a dedicated AV network.
  • Page 8 Network AV Infrastructure Prerequisites Figure 1. Converged Network Diagram...

  • Page 9: Installing O N A Dedicated Network

    EDICATED ETWORK Figure 2 illustrates how E5200/D5200 endpoints can be installed on a dedicated network. A dedicated network is recommended for transmitting AV over IP. We offer various models of preconfigured switches for resale to our partners. These switches are shipped pre-configured for AV over IP from the factory.

  • Page 10: Installation And Connections (System Examples)

    Installation and Connections (System Examples) • The maximum number of streams possible between switches = link bandwidth (10Gbps) / 800Mbps (for 4K) x number of encoders (or 200Mbps for 1080p). • For 4K streaming, the total number of streams (800xn) must be ≤ 10,000. •...

  • Page 11: One Source T O One Display

    Installation and Connections (System Examples) OURCE ISPLAY In this basic installation scenario, sending video from a single source to a single display, a single encoder and decoder (point-to- point) can be linked directly together or over a network. If linked directly, the CAT 5e (or better) cable linking the devices should not run more than 100m (328ft).

  • Page 12: Many Sources T O Many Displays

    Installation and Connections (System Examples) OURCES ISPLAYS Sending video from multiple sources to multiple displays requires a network switch. Multiple encoders can be linked to multiple decoders (multipoint-to-multipoint) over a network. The many encoders to many displays’ configuration allow almost any number of sources and displays.

  • Page 13: Many Sources T O Many Displays With Usb Over Ip (Kvm)

    Installation and Connections (System Examples) USB O IP (KVM) OURCES ISPLAYS Allowing users to remotely access and control computers from multiple sources with multiple displays requires a network switch. Multiple encoders can be linked to multiple decoders (multipoint-to-multipoint) over a network. The many encoders to many displays’...

  • Page 14: Video Wall

    To configure the units, you must access the web interface of each encoder and decoder using a computer. In order to communicate with the E5200/D5200 endpoints, the devices must be on the same subnet as your computer. You may need to change the computer’s network settings to accomplish this.
  • Page 15 Method 1: If there is a DHCP server on the network, accept Obtain an IP address automatically (the default). The computer will be automatically assigned a unique IP address by the DHCP server on the same subnet, allowing communication with the E5200/D5200 endpoints. •...
  • Page 16 IP addresses. On a Windows OS, the ping command only displays the first responding address. 5. Use nmap to scan for Visionary Solutions MAC Addresses. 6. For decoders only: Connect to the network via HDMI to a display. The IP address displays on the bottom right of the Boot up screen image on the display device when there is no source connected.

  • Page 17: Configuring Encoder And Decoder Ip Addresses

    XPANSION E5200/D5200 is equipped with a single main gigabit (LAN1) Port for 4K UHD Video, Control, and Powered Device (PD). This single Ethernet port is used for Video over IP and control, with VLAN tagging capability to separate LAN1 & LAN2 network traffic as needed.

  • Page 18: Vlan Trunk Mode

    7. Click Save to save the new settings. The unit will automatically reboot. The unit is now configured with the new network settings. Important: The port on the network switch the E5200/D5200 is connected must also be configured as a trunk port and must be a tagged member of assigned VLANs.

  • Page 19: Ethernet Expansion Port (Lan2)

    E5200/D5200 may be assigned to a separate VLAN than the AV stream/control traffic. Important: The port on the network switch the E5200/D5200 is connected must also be configured as a trunk port and must be a tagged member of assigned VLANs.

  • Page 20: Configuring Stream Settings (Manually )

    (see Figures 2-5). Note: Visionary’s E5200 encoders default to a multicast stream based on their serial numbers. We recommend that you leave this as the stream address unless the range (225.168.0.0–...

  • Page 21: Stream Bit Rate

    Decoder Options b. Click CONNECT button to connect to the encoder AV stream. Click Save to save the new settings as the default route for the decoder when it boots. The unit will automatically reboot. 7. Repeat steps 1–4 and step 6 for each decoder you want to tune into the encoder’s multicast stream. The units are now connected in multicast mode.

  • Page 22: Fast ( Er ) Kvm Switching

    Decoder Options time. In other words, only one decoder can communicate with the encoder at any given time. By default, the first decoder unit connected has USB control. ) KVM S WITCHING USB.KVM_FAST: Default FALSE. When set to TRUE (Checked) allows for rapid transition of KVM control when switching between two encoders.

  • Page 23: Cec Over Ip (Decoder Only )

    Decoder Options CEC O IP (D ECODER The decoders support CEC over IP, allowing control of a CEC (Consumer Electronics Control) enabled display through the HDMI connection. The decoder receives the CEC commands and passes the commands through the HDMI connection to the CEC enabled display.

  • Page 24: Ir Over Ip

    The E5200/D5200 series is capable of using HDMI or Analog audio sources. • The E5200 encoder uses the STREAM.AUDIO to select the source of audio sent over the AV over IP stream. • The D5200 decoder uses the STREAM.AUDIO to select what audio is sent out the HDMI output.

  • Page 25: Audio Connections

    Native AES67 Audio Capabilities Overview The Visionary E/D5200 AV-over-IP endpoints are equipped with native AES67 audio capabilities, providing high-quality, synchronized audio transmission over IP networks. AES67 is an open standard for audio over IP and Ethernet interoperability, facilitating seamless integration between devices from different manufacturers. This feature allows for seamless integration with professional audio systems and ensures compatibility with other AES67-compliant devices.

  • Page 26: Ideo All

    Decoder Options IDEO Multiple decoders can be grouped together to create a video wall. Setup involves assigning each decoder to its position in the video wall. The decoders create a video wall by scaling the video content to a size that matches the full video wall. When video walls are square (same number of rows and columns), the content will be scaled appropriately because the aspect ratio is maintained.

  • Page 27: Edid

    The EDID describes the formats for audio and video that an HDMI sync can process. The source device uses this information to determine the audio and video format that is output. The source gets its EDID from the encoder. The E5200 encoder is the only device that is presenting an EDID to the source.

  • Page 28: Multi - Input Edid Management (Encoder Ony )

    VIDEO.HDMI_OUT_PRIORITY to set the priority for the HDMI OUT. Auto select will choose the source based on priority. If the priority is set to HDMI1 HDMI2 USB-C, the E5200 will select HDMI1 as its source, if there is no source connected to HDMI1 the E5200 will then automatically switch to the next input in the priority selection.

  • Page 29: Video Output Setting (Decoder Only )

    The OSD (On Screed Display) is used to put user text onto the screen as an overlay. Once the text is entered, the text will appear in the upper left corner of the display. The default text color is blue. To obtain a key to unlock advanced OSD features (font, font size, position, and color) contact sales@visionary-av.com ONFIGURATION ECODER Decoders have the ability to auto discover all endpoints on the network, export to .CSV file (all configurable parameters included),...

  • Page 30: Encoder Options

    186-005-000269 . The UNIT.ID can be changed by the user on the Network tab. UNIT.MODEL – E5200 (encoder). UNIT.SERIAL – The serial number of the unit. The serial number can also be found on the bottom label of each unit.

  • Page 31: E5200 Encoder Network Tab

    VIDEO INFO – Displays the current source resolution being transmitted to the AV steam. AUDIO INFO - Displays the current source audio codec, type, frequency, size, and number of channels. E5200 E NCODER ETWORK UNIT.ID – By default, the UNIT.ID of the encoder is the MAC Address. This can be changed by the user on the Network tab.
  • Page 32 UNIT.PSE_ENABLED is set to TRUE, the encoder will transmit PoE power out the LAN2 expansion port. Note: E5200 must be supplied with PoE+ power from the network switch to transmit PoE power out the LAN2 expansion port.

  • Page 33: E5200 Encoder Configuration Tab

    Decoder Options E5200 E NCODER ONFIGURATION STREAM.MODE – Unicast or multicast. See section Configuring Stream Settings (Manually). STREAM.BIT_RATE – See section Stream Bit Rate. STREAM.FRAME_RATE – See section Stream Bit Rate. STREAM.QOS_DSCP - Used to set the QoS DSCP tag (default is set to 26) STREAM.AUDIO –...
  • Page 34 Decoder Options ONFIGURATION VIDEO.HDCP_FORCE_ON - See section HDCP Force On. VIDEO.HDMI_OUT – Used to set encoder HDMI out (loop out) source select – AUTO, HDMI1, HDMI2, USB-C VIDEO.HDMI_OUT_PRIORITY - Used to set encoder HDMI out (loop out) select priority when VIDEO.HDMI_OUT is set to AUTO. VIDEO.EDID1 –...
  • Page 35 Decoder Options ONFIGURATION SERIAL.ENABLED – Turn on or off RS232 over IP. See section RS-232 Over IP. SERIAL.SETTINGS – Hidden until SERIAL.ENABLED is set to TRUE. See section RS-232 OVER IP. Options are: Baudrate, Data bits, Parity, and Stop bits. GPIO.ENABLED –...

  • Page 36: E5200 System Tab

    • Reenter Password – reenter new password Important: Make sure you write the new password down. If it is lost or forgotten, you will need to call Visionary Solutions support to assist in a console factory default of the unit.

  • Page 37: Decoder Options

    Decoder Options ECODER PTIONS D5200 D ECODER EVICE e.g., UNIT.ID – By default, the UNIT.ID of the decoder is the Model Number and the serial number ( D5200-000088, serial number: 186-004-000088 . The UNIT.ID can be changed by the user on the Network tab. UNIT.MODEL –D5200(decoder).

  • Page 38: D5200 Decoder Network Tab

    Decoder Options D5200 D ECODER ETWORK UNIT.ID – By default, the UNIT.ID of the encoder is the MAC Address. This can be changed by the user on the Network tab. UNIT.SET_ID – User defined device name. For example: Display_1 or Source_3 (letters, numbers, dashes, and underscores only). UNIT.LOCATION –...
  • Page 39 Decoder Options IP.NETMASK – Shows the current value based on the unit’s mode. In Static mode, shows the unit’s static settings. In DHCP mode, shows if the values are valid. If DHCP is failed, the mode shows as Auto IP (even though you cannot select this mode directly), and the Auto IP values display in the IP.xxxxxx fields.

  • Page 40: D5200 Decoder Configuration Tab

    Decoder Options D5200 D ECODER ONFIGURATION STREAM.HOST_LINKED – Used to set stream mode to linked or independent, TRUE (LINKED) or FALSE (INDEPENDENT). See section Configuring Stream Settings (Manually). STREAM.HOST – Displays current encoder IP address the decoder is tuned in LINKED mode. See section Configuring Stream Settings (Manually).
  • Page 41 Decoder Options ONFIGURATION VIDEO.FORMAT – See section Video Format Setting (Decoder Only). VIDEO.SOURCE_TIMEOUT – See section Video Source Timeout (Decoder Only). VIDEO.POWER_SAVE – See section Video Power Save (Decoder Only). VIDEO.HDCP_FORCE_ON – Force the decoder to HDCP encrypt the output. See section HDCP Force On. VIDEO.GENLOCK –...
  • Page 42 Decoder Options ONFIGURATION VW.ENABLED – Setting for turning Video Wall mode on or off. See section Video Wall. VW.NAME – Hidden until VW.ENABLED is set to TRUE. User defined Video Wall name. For example: Videowall_1 or Videowall _3. (letters, numbers, dashes, and underscores only). See section Video Wall. VW.STRETCH –...
  • Page 43 Decoder Options ONFIGURATION USB.ENABLED – Turn on or off USB over IP. See section USB Over IP (KVM) . USB.KVM_FAST – Hidden until USB.ENABLED is set to TRUE. See section USB Over IP (KVM) . SERIAL.ENABLED – Turn on or off RS232 over IP. See section RS-232 Over IP. SERIAL.SETTINGS –...

  • Page 44: D5200 Decoder System Tab

    • Reenter Password – reenter new password Important: Make sure you write the new password down. If it is lost or forgotten, you will need to call Visionary Solutions support to assist in a console factory default of the unit.

  • Page 45: Control

    ONTROL ISION Vision Lite is a 4K Matrix Switching, Video Wall Control, and configuration software for use with our E5200 Encoder and D5200 Decoder endpoints. The Vision Lite Server Application is cross-platform capable (or OS agnostic), meaning that the software works on Windows, Mac, and Linux.
  • Page 46 Control 6. The Vision Lite Server window opens.
  • Page 47 Control 7. Go to the Network Interface menu and select the appropriate network interface. Select the network interface that the Vision Lite Server will be “listening” on. If your machine has more than one network interface, you will need to select the interface that is connected to the same network as the units. Important: The Vision Lite Server window can be minimized in the background;...
  • Page 48 Control Important: The Vision Lite Server window needs to be closed and then reopened for the new port number to be assigned. 9. Copy the Vision Lite Server IP Address from the Vision Lite Server window to your clipboard.
  • Page 49 Control 10. To launch the Vision Lite User Interface, open a browser page and copy the Vision Lite Server IP Address IP Address to the URL. Note: You can log in from any machine on the network. 11. Log in with username=admin password=admin. Note: A second user type with limited access rights is available.
  • Page 50 Control • On the Configuration page, you can click on the IP Address (hyperlink) of any endpoint to open the embedded web interface for each unit. On the unit’s web interface, you can rename the units and/or set a user defined location. Important: SPECIAL CHARACTERS ARE NOT ALLOWED FOR UNIT ID AND LOCATION.

  • Page 51: Third - Party Conrtol Drivers And Plugins

    IRMWARE It is important to know the version of the E5200/D5200 firmware in order to troubleshoot the unit. To find the firmware version of your E5200/D5200 from the embedded device web Interface, navigate to the Device tab and the firmware version is shown.

  • Page 52: Diagnostics Page

    2. Use a paperclip or similar device to press physical reset button. 3. Press and hold the reset button until the LEDs on the front of the E5200/D5200 indicate the unit has been reset (Fast Link LED). 4. The unit will reset to its factory default settings.

  • Page 53: Video Info

    Troubleshooting IDEO Displays the current video information, containing but not limited to resolution, refresh rate, scan mode, and HDCP. UDIO Displays the current audio source codec, type, sample frequency, and sample size information.

  • Page 54: Usb Info

    Troubleshooting USB I Displays the current USB/KVM IP connections. LASH Flashed the front LEDs of the unit.

  • Page 55: Temperature

    Troubleshooting EMPERATURE Displays the current unit temperature in both Celsius and Fahrenheit.

  • Page 56: Rack Mount Kit

    Rack Mount Kit OUNT The optional rack mount system for encoders/decoders is available as a kit from Visionary Solutions. Figure 12. Rack Mount System...

  • Page 57: Product Specifications

    Product Specifications RODUCT PECIFICATIONS Encoding / Decoding Video Codec JPEG2000 based visually lossless video compression algorithm LPCM, Native AES67, Dante™/AES67* Audio Codec Bit Rates 50 to 800 Mbps Ultra-low Latency Sub-Frame (visually lossless video) Latency ~2ms @ 1080p60 & 4K60 4:4:4 ~3ms @ 1080p30 &...
  • Page 58 Product Specifications Dante™/AES67* 24-bit 48 kHz Analog Output Volume Adjustment -80 to +20 dB Communication & Control of External Devices Ethernet Network connectivity for control and IP traffic pass-through to remote LAN devices USB 2.0 host or device signal extension and routing GPIO For extension and control of third-party devices Serial / RS-232...
  • Page 59 Product Specifications...
