Visionary DuetE-5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DuetE-5 •
Encoder |
DuetD-5 •
User Manual
Decoder
www.visionary-av.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DuetE-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Visionary DuetE-5

Summary of Contents for Visionary DuetE-5

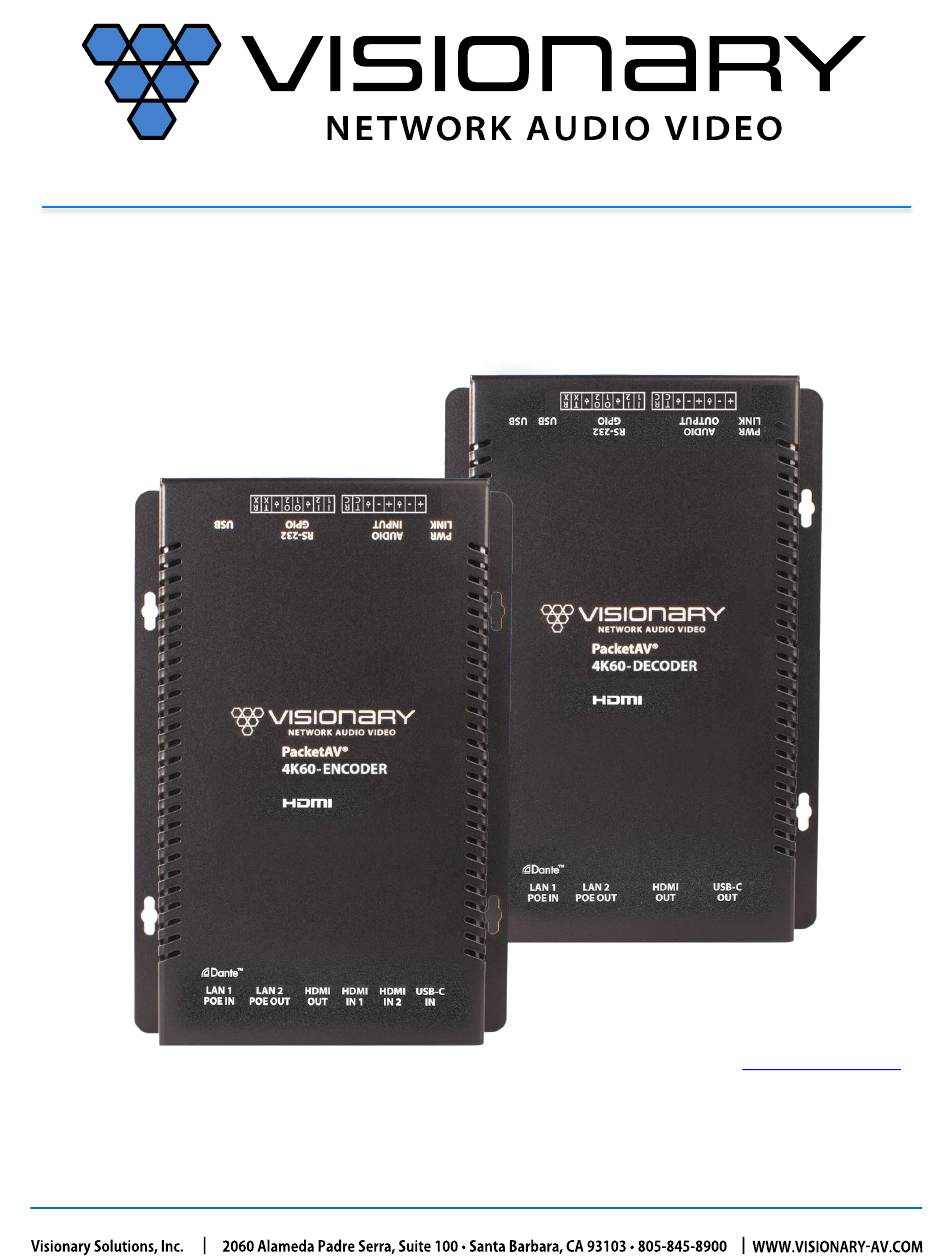

  • Page 1 DuetE-5 • Encoder | DuetD-5 • User Manual Decoder www.visionary-av.com...

  • Page 2: Table Of Contents

    ONTENTS ..........................1 NTRODUCTION AV I ..................1 ETWORK NFRASTRUCTURE REREQUISITES ............................2 ETWORK EQUIREMENTS E) ........................... 2 OWER THERNET ................................. 2 WITCH PEED ..........................3 HOOSING THERNET WITCH ..............................3 WITCH UIDELINES ..........................4 MPLEMENTATION ONSIDERATIONS ........................4 NSTALLING ONVERGED ETWORK ........................
  • Page 3 Certain trademarks, registered trademarks, and trade names may be used to refer to either the entities claiming the marks and names or their products. Visionary Solutions, Inc. disclaims any interest in the marks and names of others.

  • Page 4: Introduction

    IP networks. Visionary’s PackeTV® and PacketAV® products can be deployed on any industry standard IP network. They can be used on existing enterprise IP networks or on a physically separate parallel network [private network] to offload traffic, using the same network protocols, methods, and devices but without intermingling video traffic with data or voice, and with equal ease of installation.

  • Page 5: Network Requirements

    PEED The DuetE-5 encoder will produce up to 800Mb/s of data. Therefore, 10 encoders will require 10 x 800MB/s = 8Gbps. Duet-5 requires the switch to be GbE. Duet-5 technology is used to transmit visually lossless 8~10:1 compressed video up to 4K along with other AV...

  • Page 6: Choosing A N Ethernet Switch

    Switches that perform well in smaller installations may not work well in larger installations. Recommended configuration settings may vary based on your switch. Visionary Solutions offers sample switch configuration files, optimized for Network AV, for certain switch brands/models for testing purposes. Contact support@visionary-av.comto obtain the files.

  • Page 7: Implementation Considerations

    AV traffic must be 1 GbE capable per the specifications in Network Requirements. Visionary Solutions recommends that all encoders be turned off before connecting to an existing network. Once connected, encoders can be turned on one at a time to determine network impact.

  • Page 8: Installing O N A Dedicated Network

    Figure 2 illustrates how Duet-5 endpoints can be installed on a dedicated network. A dedicated network is recommended for transmitting AV over IP. We offer various models of preconfigured switches for resale to our partners. These switches are shipped pre-configured for AV over IP from the factory. Please contact sales@visionary-av.com for more information.

  • Page 9: Single Switch Networking

    Installation and Connections (System Examples) Figure 2. Dedicated Network Diagram INGLE WITCH ETWORKING Single switch networking can be used when there are no more than 100m (328ft) from the central distribution point. Any network switch should have a backplane capacity of at least (2 x 1000-Mbps x N) where N is the number of ports on the switch passing the video traffic.

  • Page 10: Installation And Connections (System Examples )

    Installation and Connections (System Examples) NSTALLATION AND ONNECTIONS YSTEM XAMPLES This section provides installation and connection instructions for six configuration examples. For each encoder and decoder in the system examples below, follow these step-by-step connection instructions. 1. Use an HDMI cable to connect the AV source to the HDMI IN1 and/or HDMI IN2 port on the encoder unit. 2.

  • Page 11: One Source T O One Display

    Installation and Connections (System Examples) OURCE ISPLAY In this basic installation scenario, sending video from a single source to a single display, a single encoder and decoder (point-to- point) can be linked directly together or over a network. If linked directly, the CAT 5e (or better) cable linking the devices should not run more than 100m (328ft).

  • Page 12: Many Sources T O Many Displays

    Installation and Connections (System Examples) OURCES ISPLAYS Sending video from multiple sources to multiple displays requires a network switch. Multiple encoders can be linked to multiple decoders (multipoint-to-multipoint) over a network. The many encoders to many displays’ configuration allow almost any number of sources and displays.

  • Page 13: Many Sources T O Many Displays With Usb Over Ip (Kvm)

    Installation and Connections (System Examples) USB O IP (KVM) OURCES ISPLAYS Allowing users to remotely access and control computers from multiple sources with multiple displays requires a network switch. Multiple encoders can be linked to multiple decoders (multipoint-to-multipoint) over a network. The many encoders to many displays’...

  • Page 14: Video Wall

    Network Discovery IDEO The video wall configuration requires a network switch to display multiple video sources to many displays or a single display in any combination of video streams. Multiple encoders can be linked to multiple decoders (multipoint-to-multipoint) over the network. The video wall configuration allows almost any number of sources and displays.
  • Page 15 Network Discovery On a Microsoft Windows computer, configure your network settings as follows: 1. Click Start menu, go to Control Panel > Network and Sharing center > Change Adapter Settings > Local Area Connection. Right- click and choose Properties. 2. Highlight Internet Protocol Version 4 (TCP/IPv4) then click Properties. This opens the window you use to configure your network settings.
  • Page 16 IP addresses. On a Windows OS, the ping command only displays the first responding address. 5. Use nmap to scan for Visionary Solutions MAC Addresses. 6. For decoders only: Connect to the network via HDMI to a display. The IP address displays on the bottom right of the Boot up screen image on the display device when there is no source connected.

  • Page 17: Configuring Encoder And Decoder Ip Addresses

    Power connected devices with PoE pass-through. DuetE-5 Encoders and DuetD-5 Decoders only require standard PoE power (15w or lower), however, when PoE+ is supplied to the Main LAN1 port you can pass-through PoE power to devices connected to the LAN2 Ethernet Expansion Port.

  • Page 18: Vlan Trunk Mode

    Configuration When PoE+ is supplied to the LAN1 port, the UNIT.PSE_ENABLED status found at the bottom of the unit’s web UI Network tab will display “Available.” When the Status window displays “Available,” use the drop-down menu to choose either TRUE or FALSE. When set to TRUE, PoE will be supplied out the LAN2 Ethernet Expansion port.

  • Page 19: Extreme Networks ' Fabric Attach

    Enabling Fabric Attach Integration • IP.FA_ENABLE: Setting this parameter to TRUE activates Fabric Attach on the Visionary endpoint. This allows the device to participate in the Fabric Attach protocol, which automates the provisioning of network services and streamlines the deployment process within Extreme Networks' environments.

  • Page 20: Configuring Stream Settings (Manually )

    (see Figures 2-5). Note: Visionary’s DuetE-5 encoders default to a multicast stream based on their serial numbers. We recommend that you leave this as the stream address unless the range (225.168.0.0–...

  • Page 21: Stream Bit Rate

    Configuration b. Click CONNECT button to connect to the encoder AV stream. Click Save to save the new settings as the default route for the decoder when it boots. The unit will automatically reboot. 7. Repeat steps 1–4 and step 6 for each decoder you want to tune into the encoder’s multicast stream. The units are now connected in multicast mode.

  • Page 22: Usb Unicast

    Configuration USB U NICAST Multiple USB devices may be connected to one or more decoder units. However, only one encoder unit can have USB control at a time. In other words, only one decoder can communicate with the encoder at any given time. By default, the first decoder unit connected has USB control.

  • Page 23: Cec Over Ip (Decoder Only )

    Configuration CEC O IP (D ECODER The decoders support CEC over IP, allowing control of a CEC (Consumer Electronics Control) enabled display through the HDMI connection. The decoder receives the CEC commands and passes the commands through the HDMI connection to the CEC enabled display.

  • Page 24: Ir Over Ip

    The Duet-5 series is capable of using HDMI or Analog audio sources. • The DuetE-5 encoder uses the STREAM.AUDIO to select the source of audio sent over the AV over IP stream. • The DuetD-5 decoder uses the STREAM.AUDIO to select what audio is sent out the HDMI output.

  • Page 25: Audio Connections

    Configuration STREAM.AUDIO=ANALOG (Encoders only) DuetE-5 – STREAM.AUDIO=Analog Uses the Analog audio (balanced or unbalanced consumer line level via Euroblock connector) and sends it out the AV stream. ***DuetD-5 is always passing analog audio via the Euroblock connector. DuetD-5 allows volume level (AUDIO.VOLUME) setting of analog audio output.

  • Page 26: Edid

    The EDID describes the formats for audio and video that an HDMI sync can process. The source device uses this information to determine the audio and video format that is output. The source gets its EDID from the encoder. The DuetE-5 encoder is the only device that is presenting an EDID to the source.

  • Page 27: Multi - Input Edid Management (Encoder Ony )

    ANAGEMENT NCODER DuetE-5 encoders support multi-input select between HDMI1, HDMI2, and USB-C. Each of the selectable inputs have their own selectable EDID setting. VIDEO.EDID1 is used for HDMI1, VIDEO.EDID2 is used for HDMI2, and VIDEO.EDID3 is used for USB-C. USTOM...

  • Page 28: Advanced Configuration

    VIDEO.HDMI_OUT_PRIORITY to set the priority for the HDMI OUT. Auto select will choose the source based on priority. If the priority is set to HDMI1 HDMI2 USB-C, the DuetE-5 will select HDMI1 as its source, if there is no source connected to HDMI1 the DuetE-5 will then automatically switch to the next input in the priority selection.

  • Page 29: Mass Configuration

    Advanced Configuration ONFIGURATION ECODER Decoders have the ability to auto discover all endpoints on the network, export to .CSV file (all configurable parameters included), make changes offline, upload .CSV file through embedded web page of encoder/decoder and push configuration to the network. No external software required –...

  • Page 30: Encoder Options

    186-005-000263 . The UNIT.ID can be changed by the user on the Network tab. UNIT.MODEL – DuetE-5 (encoder). UNIT.SERIAL – The serial number of the unit. The serial number can also be found on the bottom label of each unit.

  • Page 31: Duet E-5 Encoder Network Tab

    Encoder Options Note: 5 Series encoders and decoders have a live thumbnail preview sub steam that is full motion video only (no audio) up to 720P that is accessible via the following URL: http://<unit_IP_address>/web/preview.html example: http://192.168.8.101/web/preview.html VIDEO INFO – Displays the current source resolution being transmitted to the AV steam. AUDIO INFO - Displays the current source audio codec, type, frequency, size, and number of channels.
  • Page 32 UNIT.PSE_ENABLED is set to TRUE, the encoder will transmit PoE power out the LAN2 expansion port. Note: DuetE-5 must be supplied with PoE+ power from the network switch to transmit PoE power out the LAN2 expansion port.

  • Page 33: Duet E-5 Encoder Configuration Tab

    Encoder Options E-5 E NCODER ONFIGURATION STREAM.MODE – Unicast or multicast. See section Configuring Stream Settings (Manually). STREAM.BIT_RATE – See section Stream Bit Rate. STREAM.FRAME_RATE – See section Stream Bit Rate. STREAM.QOS_DSCP - Used to set the QoS DSCP tag (default is set to 26) STREAM.AUDIO –...
  • Page 34 Encoder Options ONFIGURATION VIDEO.HDCP_FORCE_ON - See section HDCP Force On. VIDEO.HDMI_OUT – Used to set encoder HDMI out (loop out) source select – AUTO, HDMI1, HDMI2, USB-C VIDEO.HDMI_OUT_PRIORITY - Used to set encoder HDMI out (loop out) select priority when VIDEO.HDMI_OUT is set to AUTO. VIDEO.EDID1 –...
  • Page 35 Encoder Options ONFIGURATION SERIAL.ENABLED – Turn on or off RS232 over IP. See section RS-232 Over IP. SERIAL.SETTINGS – Hidden until SERIAL.ENABLED is set to TRUE. See section RS-232 OVER IP. Options are: Baudrate, Data bits, Parity, and Stop bits. GPIO.ENABLED –...

  • Page 36: Duet E-5 System Tab

    • Reenter Password – reenter new password Important: Make sure you write the new password down. If it is lost or forgotten, you will need to call Visionary Solutions support to assist in a console factory default of the unit.

  • Page 37: Decoder Options

    Decoder Options ECODER PTIONS D-5 D ECODER EVICE e.g., UNIT.ID – By default, the UNIT.ID of the decoder is the Model Number and the serial number ( DuetD-5-000277, serial number: 186-004-000277 . The UNIT.ID can be changed by the user on the Network tab. UNIT.MODEL –DuetD-5(decoder).
  • Page 38 Decoder Options EVICE MONITOR BUTTON – Displays the live thumbnail preview of the video being received from the AV stream. Note: 5 Series encoders and decoders have a live thumbnail preview sub steam that is full motion video only (no audio) up to 720P that is accessible via the following URL: http://<unit_IP_address>/web/preview.html example: http://192.168.8.101/web/preview.html VIDEO INFO –...

  • Page 39: Duet D-5 Decoder Network Tab

    Decoder Options D-5 D ECODER ETWORK UNIT.ID – By default, the UNIT.ID of the encoder is the MAC Address. This can be changed by the user on the Network tab. UNIT.SET_ID – User defined device name. For example: Display_1 or Source_3 (letters, numbers, dashes, and underscores only). DANTE.DEVICE_NAME –...
  • Page 40 Decoder Options IP.ADDRESS – Shows the current value based on the unit’s mode. In Static mode, shows the unit’s static settings. In DHCP mode, shows if the values are valid. If DHCP is failed, the mode shows as Auto IP (even though you cannot select this mode directly), and the Auto IP values display in the IP.xxxxxx fields.

  • Page 41: Duet D-5 Decoder Configuration Tab

    Decoder Options D-5 D ECODER ONFIGURATION STREAM.HOST_LINKED – Used to set stream mode to linked or independent, TRUE (LINKED) or FALSE (INDEPENDENT). See section Configuring Stream Settings (Manually). STREAM.HOST – Displays current encoder IP address the decoder is tuned in LINKED mode. See section Configuring Stream Settings (Manually).
  • Page 42 Decoder Options ONFIGURATION VIDEO.FORMAT – See section Video Format Setting (Decoder Only). VIDEO.SOURCE_TIMEOUT – See section Video Source Timeout (Decoder Only). VIDEO.POWER_SAVE – See section Video Power Save (Decoder Only). VIDEO.HDCP_FORCE_ON – Force the decoder to HDCP encrypt the output. See section HDCP Force On. VIDEO.GENLOCK –...
  • Page 43 Decoder Options ONFIGURATION VW.ENABLED – Setting for turning Video Wall mode on or off. See section Video Wall. VW.NAME – Hidden until VW.ENABLED is set to TRUE. User defined Video Wall name. For example: Videowall_1 or Videowall _3. (letters, numbers, dashes, and underscores only). See section Video Wall. VW.STRETCH –...
  • Page 44 Decoder Options ONFIGURATION USB.ENABLED – Turn on or off USB over IP. See section USB Over IP (KVM) . USB.KVM_FAST – Hidden until USB.ENABLED is set to TRUE. See section USB Over IP (KVM) . SERIAL.ENABLED – Turn on or off RS232 over IP. See section RS-232 Over IP. SERIAL.SETTINGS –...

  • Page 45: Duet D-5 Decoder System Tab

    • Reenter Password – reenter new password Important: Make sure you write the new password down. If it is lost or forgotten, you will need to call Visionary Solutions support to assist in a console factory default of the unit.

  • Page 46: Vision Lite

    ONTROL ISION Vision Lite is a 4K Matrix Switching, Video Wall Control, and configuration software for use with our DuetE-5 Encoder and DuetD-5 Decoder endpoints. The Vision Lite Server Application is cross-platform capable (or OS agnostic), meaning that the software works on Windows, Mac, and Linux.
  • Page 47 Control following command: java -jar VLite.jar. 6. The Vision Lite Server window opens.
  • Page 48 Control 7. Go to the Network Interface menu and select the appropriate network interface. Select the network interface that the Vision Lite Server will be “listening” on. If your machine has more than one network interface, you will need to select the interface that is connected to the same network as the units. Important: The Vision Lite Server window can be minimized in the background;...
  • Page 49 Control Important: The Vision Lite Server window needs to be closed and then reopened for the new port number to be assigned. 9. Copy the Vision Lite Server IP Address from the Vision Lite Server window to your clipboard.
  • Page 50 Control 10. To launch the Vision Lite User Interface, open a browser page and copy the Vision Lite Server IP Address IP Address to the URL. Note: You can log in from any machine on the network. 11. Log in with username=admin password=admin. Note: A second user type with limited access rights is available.
  • Page 51 Control • On the Configuration page, you can click on the IP Address (hyperlink) of any endpoint to open the embedded web interface for each unit. On the unit’s web interface, you can rename the units and/or set a user defined location. Important: SPECIAL CHARACTERS ARE NOT ALLOWED FOR UNIT ID AND LOCATION.

  • Page 52: Third - Party Conrtol Drivers And Plugins

    Duet-5 from the embedded device web Interface, navigate to the Device tab and the firmware version is shown. UPPORT Should you require any technical assistance, please contact your Visionary Solutions reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response.

  • Page 53: Diagnostics Page

    Troubleshooting 5. Click OK on the pop-up. 6. The unit will reset to its factory default settings. Method 2: 1. Locate the reset button on the bottom side of the Duet-5. 2. Use a paperclip or similar device to press physical reset button. 3.

  • Page 54: Video Info

    Troubleshooting IDEO Displays the current video information, containing but not limited to resolution, refresh rate, scan mode, and HDCP. UDIO Displays the current audio source codec, type, sample frequency, and sample size information.

  • Page 55: Usb Info

    Troubleshooting USB I Displays the current USB/KVM IP connections. LASH Flashed the front LEDs of the unit.

  • Page 56: Temperature

    Troubleshooting EMPERATURE Displays the current unit temperature in both Celsius and Fahrenheit.

  • Page 57: Rack Mount Kit

    Rack Mount Kit OUNT The optional rack mount system for encoders/decoders is available as a kit from Visionary Solutions. Figure 12. Rack Mount System...

  • Page 58: Product Specifications

    Product Specifications RODUCT PECIFICATIONS Encoding / Decoding Video Codec JPEG2000 based visually lossless video compression algorithm Audio Codec Dante® / AES67 Bit Rates 50 to 800 Mbps Ultra-low Latency (visually lossless video) Latency 17ms @ 1080p60 & 4K60 33ms @ 4K30 Streaming Protocols IP, UDP, TCP, ICMP, IGMP Copy Protection...
  • Page 59 Product Specifications Communication & Control of External Devices Ethernet Network connectivity for control and IP traffic pass-through to remote LAN devices USB 2.0 host or device signal extension and routing GPIO For extension and control of third-party devices Serial / RS-232 Bi-directional device control and monitoring Device control via infrared HDMI...
