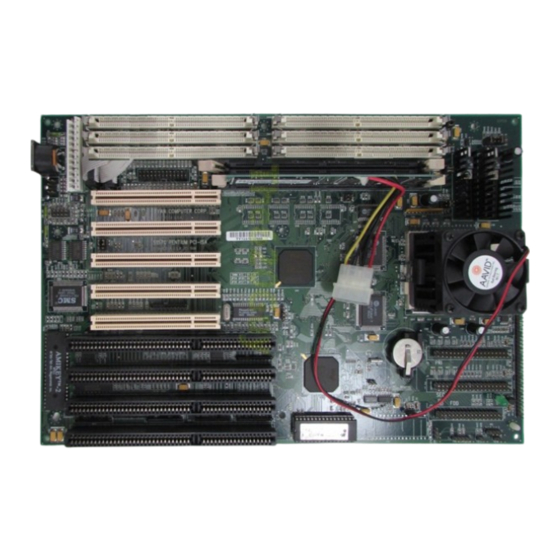

- Page 1 Revision 1.0 TYAN S1570 AT Pentium Class 75 thru 200MHz 430TX PCI-ISA System Board User's Manual...
- Page 2 Cet appareil est conforme aux normes de CLASSE "B" d' interference radio tel que spec' cifie' par le Ministe're Canadien des Communications dans les re'glements d'interfe'rence radio. Notice for Europe (CE Mark) This product is in conformity to the Council Directive 89/336/EEC, 92/31/EEC (EMC) S1570-001-01 http://www.tyan.com...
-
Page 3: Table Of Contents
4.11 Password Setting ..........36 4.12 IDE HDD Auto Detection........38 4.13 Save & Exit Setup..........38 5. Flash Writer Utility............39 5.1 The Flash Memory Writer Utility Screen....41 6. System Resources............. 42 6.1 Timer & DMA Channel Map........42 S1570-001-01 http://www.tyan.com... -
Page 4: Introduction
This board uses the Intel 430TX chipset. According to Intel , the USB function in this chipset is not guaranteed. Compatibility tests cannot be conducted for all USB peripherals at this time. Please log on to the Tyan web page for the latest infomation. -
Page 5: Hardware Specifications
EIDE Mode 0 through Mode 4 drives. Supports DMA(Bus Master) mode 1 and 2. ( Bus Master driver on web at www.tyan.com) Supports "Ultra 33" Synchronous DMA mode w Enhanced I/O Multi-mode bi-directional parallel port that supports standard, EPP and ECP modes. -
Page 6: Software Specifications
Trademarks Award BIOS/Flash are trademarks of Award Software International Inc. AMI BIOS is a trademarks of American Megatrends Inc. IBM,PC,AT,PS/2 are trademarks of IBM Corporation INTEL,Pentium are trademarks of Intel Corporation. S1570-001-01 http://www.tyan.com... -
Page 7: Board Installation
DAMAGED! 2.2 Installation You are now ready to install your mainboard. The mounting hole pattern of the S1570 matches the Baby-AT system board spec. It is assumed that the chassis is for a standard Baby-AT mainboard form factor. S1570-001-01 http://www.tyan.com... -
Page 8: S1570 On Board Resource Settings
CPU 0 JP11 JP35 JP37 JP36 JP10 pin 1 JP41 JP34 JP20 JP27 Socket 7 JP28 JP25 JP29 JP30 JP31 JP24 Reserved JP32 R e s e t HD LED EXTSMI Voltage Regulators pin 1 PWR LED SPKR S1570-001-01 http://www.tyan.com... -
Page 9: Quick Reference For Jumpers
CPU Speed Settings for Cyrix/SGS/IBM 6x86/M1: JP10 JP11 JP13 CPU Speed/ID 1-2,3-4 100MHz/P120+ 120MHz/P150+ 133MHz/P166+ DIMM Memory Voltage Select: 3V is Default DIMM VCC 3V JP39 JP40 SIMM Memory Voltage Select: 5V is Default SIMM VCC JP34 & JP35 JP36 & JP37 S1570-001-01 http://www.tyan.com... - Page 10 Keylock pin5 I/O Port Setting: J39 and J40 For Serial Port 1-2 For IR Port Turbo LED: JP25 pin1 anode + pin2 cathode - Turbo Switch: JP24 (De-Turbo mode not supported) (Only turns on/off the turbo LED) S1570-001-01 http://www.tyan.com...
- Page 11 Sec IDE - Power LED2: Jumper block J8 pins 18-20 Pinout Assignments Power LED + Power LED - Reset: Jumper block J8 pins 22-23 Pinout Assignments Ground Reset Speaker Connector: J8 pins 24-27 Pinout Assignments Speaker out Ground + 5V S1570-001-01 http://www.tyan.com...
- Page 12 PS/2 Mouse Connector: DATA VCC Keyboard S1570-001-01 http://www.tyan.com...
-
Page 13: Cmos Rtc
JP16 determines which type of EPROM is used. This jumper has been set to match the on board BIOS chip. The factory default for the S1570 is on pins 1-2. Depending on the type of EPROM used, some boards will have JP16 on pins 2-3. S1570-001-01 http://www.tyan.com... -
Page 14: Reset Connector
Wait for 2 seconds then return the jumper to pins 1 and 2. d.Power on the system again. By doing the above procedures, your password will be erased and the CMOS will be reset to the BIOS defaults. S1570-001-01 http://www.tyan.com... -
Page 15: Dram Installation
64MB x1 64MB none none none 32MB x1 64MB x1 96MB none none none 64MB x1 64MB x1 128MB 64MB x2 none none none 64MB x1 192MB 64MB x2 64MB x2 64MB x2 none none 256MB S1570-001-01 http://www.tyan.com... -
Page 16: Cpu Installation
4. Press the lever down. The top plate will slide forward. You will feel some resistance as the pressure starts to secure the CPU in the socket. This is normal and will not damage the CPU. The lever should snap into place at the side of the socket. S1570-001-01 http://www.tyan.com... -
Page 17: Cache Upgrade
If a PCI-Bus interface card is to be installed in the system, any one of the five PCI-Bus slots can support either a Master or a Slave device. After installing the peripheral controllers, the user should check everything again, and prepare to power on the system. S1570-001-01 http://www.tyan.com... -
Page 18: Connecting The Power Supply
Orient the connectors so the black wires are in the middle of the 5V power supply. Caution: Some power supplies also include "3V" connectors. The connection wires normally have two colors with 3 black wires on one side. Please be very careful. Don't to use the wrong connec- tor. S1570-001-01 http://www.tyan.com... - Page 19 You may need to hold the lead at an angle to line it up.Once you have the guide pins aligned, press the lead connector so that the plastic clips on the lead snap into place and secure the lead to the connec- tor. Connecting 5V power supply S1570-001-01 http://www.tyan.com...
-
Page 20: Bios Configuration
Figure 4.1 will appear on the sceen. The Main Menu allows you to select from the 8 setup functions and 2 exit choices. Use the arrow keys to select among the items and press <Enter> to accept or enter each sub-menu. S1570-001-01 http://www.tyan.com... -
Page 21: Control Keys
Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value, only for Option Page Setup Menu F6 key Load defaults F8 key Reserved F9 key Reserved F10 key Save all CMOS changes, only for Main Menu S1570-001-01 http://www.tyan.com... -
Page 22: Getting Help
USER PASSWORD POWER MANAGEMENT IDE HDD AUTO DETECT PNP/PCI CONFIGURATION SAVE AND EXIT LOAD BIOS DEFAULTS EXIT WITHOUT SAVING ESC : Save & Exit Setup :Select Item F10 : Quit (Shift)F2 :Change Color Time, Date, Hard Disk Type,..S1570-001-01 http://www.tyan.com... - Page 23 This option lets you enable or disable on board FDD, HDD, and I/O options. w IDE HDD auto detection Automatically configure hard disk parameters. w Save and exit setup Save changes to CMOS and exit setup. w Exit without saving Abandon all CMOS changes and exit setup. S1570-001-01 http://www.tyan.com...
-
Page 24: Standard Cmos Setup Menu
The day, from Sun to Sat, Determined by the BIOS date, month and year entries. Date The date, from 1 to 31 (or maximum allowed in a month) Month The month, Jan to Dec. Year The year, from 1900 to 2099 S1570-001-01 http://www.tyan.com... - Page 25 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity 720K, 3.5 in. 3-1/2 inch double-sided drive; 720 kilobyte capacity 1.44M, 3.5 in. 3-1/2 inch double-sided drive; 1.44 megabyte capacity 2.88M, 3.5 in. 3-1/2 inch double-sided drive; 2.88 megabyte capacity S1570-001-01 http://www.tyan.com...
- Page 26 The value of the base memory is typically 640K. Extended Memory The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1MB in the CPU's memory address map. S1570-001-01 http://www.tyan.com...
-
Page 27: Bios Features Setup
Typematic Rate (Chars/sec) Typematic Delay (msec) :250 Security Option :Setup ESC :Quit :Select Item PS/2 Mouse Function :Enabled PCI/VGA Palette Snooping :Disabled OS select for DRAM >64MB:non-OS/2 :Help PU/PD/+/- :Modify :Old Values (Shift)F2 :Color :Load BIOS Defaults :Load Setup Defaults S1570-001-01 http://www.tyan.com... - Page 28 C,A System will first search for hard disk drive then floppy disk drive w Swap Floppy Drive Default value is Disabled Enabled Floppy A & B will be swapped under DOS Disable Floppy A & B will be normal definition. S1570-001-01 http://www.tyan.com...
- Page 29 The selected character is displayed when a key is held down after a delay set by the Typematic Rate Delay. It then repeats at a rate set by the Typematic Rate. S1570-001-01 http://www.tyan.com...
-
Page 30: Chipset Features Setup
DRAM Write Burst Timing :x333 Fast EDO Path Select :Disabled More Information on these settings Refresh RAS# Assertion :5/Clks can be found at Tyan's web site. Fast RAS to CAS delay DRAM Page Idle Timer :8Clks http://www.tyan.com DRAM Enhanced Paging :Enabled... -
Page 31: Power Management Setup
Video Off Method The "Blank Screen" option will let the system BIOS blanks the screen when disabling video. V/H SYNC+Blank will let the BIOS turn off the V-SYNC and H-SYNC signals from the VGA card to the monitor. S1570-001-01 http://www.tyan.com... - Page 32 Defines the continous idle time before the system enters Doze mode. w Standby Mode Defines the continous idle time before the system enters Standby mode. w Reload Global Timer Events Defines the the activities that can cause the PM timers to reload. (Break- ing out of PM Mode) S1570-001-01 http://www.tyan.com...
-
Page 33: Pci Slot Configuration
PCI Slot3 INTC INTA PCI Slot3 INTD INTB PCI Slot4 INTA INTD PCI Slot4 INTB INTA PCI Slot4 INTC INTB PCI Slot4 INTD INTC PCI Slot5 INTA INTA PCI Slot5 INTB INTB PCI Slot5 INTC INTC PCI Slot5 INTD INTD S1570-001-01 http://www.tyan.com... - Page 34 Primary IDE INT# Select the PCI INT# that the Primary IDE controller will use. Default value is A. w Secondary IDE INT# Select the PCI INT# that the Secondary IDE controller will use. Default value is B S1570-001-01 http://www.tyan.com...
-
Page 35: Integrated Peripherals
On-Board Parallel Port :378/IRQ7 Parallel Port Mode :Normal The Settings in the Integrated Peripherals section lets the user enable or disable on-board devices. You can also configure the I/O and IRQ settings of the on-board serial and parallel ports. S1570-001-01 http://www.tyan.com... -
Page 36: Load Setup Defaults
If any problem has occurred, loading the SETUP DEFAULTS is recommended. 4.11. PASSWORD SETTING When you select this function, the following message will appear at the center of the screen to assist you in creating a password. ENTER PASSWORD S1570-001-01 http://www.tyan.com... - Page 37 If you select Setup at Security Option of BIOS Features Setup Menu, you will be prompted only when you try to enter setup. S1570-001-01 http://www.tyan.com...
-
Page 38: Ide Hdd Auto Detection
:Select Item F10 : Quit (Shift)F2 :Change Color Time, Date, Hard Disk Type,..Type "Y" and you will quit the Setup Utility and save the user setup values to RTC CMOS NVRAM. Type "N" to return to Setup Utility. S1570-001-01 http://www.tyan.com... -
Page 39: Flash Writer Utility
You should ALWAYS clear your CMOS after flashing a BIOS. This will clear out any stray settings from your old BIOS which may have been carried over from the flashing process. Most problems encountered after flashing a BIOS will be solved by this simple procedure. S1570-001-01 http://www.tyan.com... - Page 40 If you are not sure, try running FMW. If it runs, then you have suc- ceeded. If it displays a warning message about the CPU mode, you will have to try again. S1570-001-01 http://www.tyan.com...
-
Page 41: The Flash Memory Writer Utility Screen
Mainboard, your system may not be able to boot. If this happens, it will require service by your system vendor. Follow the requirements and instructions in this section precisely to avoid inconvenience. S1570-001-01 http://www.tyan.com... -
Page 42: System Resources
3 SERIAL port 2 4 SERIAL port 1 5 PARALLEL port 2 6 FLOPPY DISK adapter 7 PARALLEL port 1 8 RTC clock 9 Available 10 Available 11 Available 12 PS/2 Mouse 13 MATH co-processor 14 Primary IDE 15 Secondary IDE S1570-001-01 http://www.tyan.com... - Page 43 CPU Jumper Settings Cyrix PR 166+ Cyrix PR 166+ Cyrix PR 200+ Cyrix PR 233+ CPU Model 6x86MX 6x86MX 6x86MX 6x86MX BUS speed 60MHz x 2.5 66MHz x 2 66MHz x 2.5 66MHz x 3 & multiplier S1564S/D-D1187-000 http://www.tyan.com...
