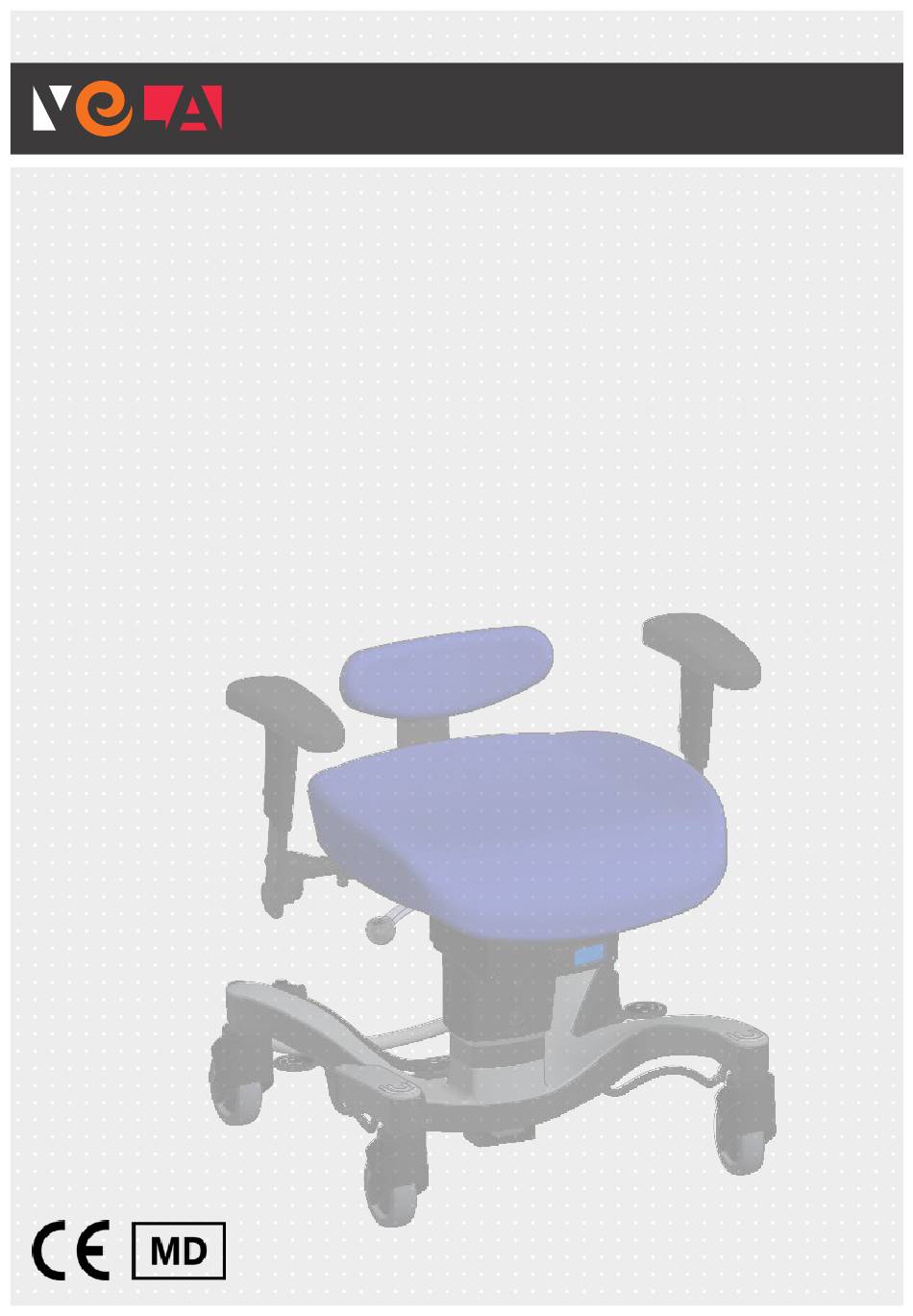

I N S T R U C T I O N F O R U S E
Item no.: Model
70030

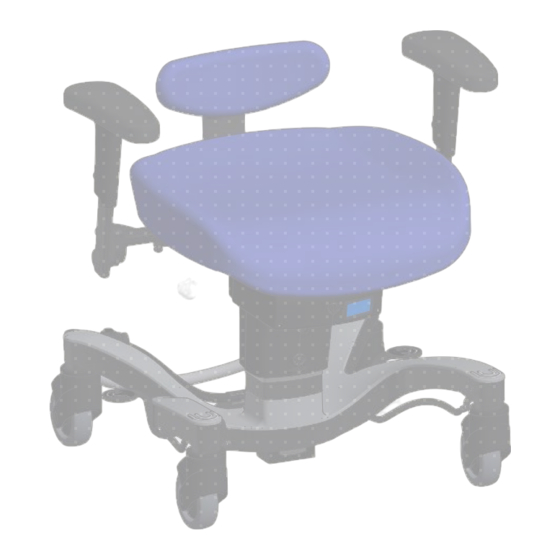

VELA X-Ray Chair
70031
VELA 'Turn+' Thorax Chair
70032
VELA Mammography Chair
70033
VELA 'Basic+' Ophthalmology Chair
70034
VELA 'Move+' Ophthalmology Chair
70035
VELA 'Medium' Exercise Chair
70036
VELA 'Large' Exercise Chair
70037
VELA 'Basic' Surgeon's chair
70038
VELA 'Advance' Phlebotomy chair
70041
VELA 'Support+' Surgeon's chair
VELA Medical
ISO 9001
ISO 14001
The chair's design varies depending on the model
E N
Manual no. 106057
Advertisement
Table of Contents
Related Manuals for Vela 70034
Summarization of Contents
VELA TANGO WITH ELECTRIC HEIGHT ADJUSTMENT
Power Input
Details the voltage, current, and power specifications for the chair's electric functions.
Emission
States compliance with EMC requirements and specifies the emission class for the chair.
Surge Protection
Describes the surge protection fuse, its type, and electrical specifications.
Safety
Intended Use
Defines the chair's purpose for supporting users in sitting posture during daily living activities.
Settings
Attaching the Backrest
Explains how to attach the backrest by lowering it into the hole and fastening it.
Height Adjustment via Hand Box (EL)
Details how to adjust chair height using push buttons on the hand box.
Height Adjustment (Manual)
Describes manual height adjustment by pulling the front handle on the right-hand side.
Page 11 Settings
Foot-Operated Height Adjustment (EL)
Explains electric height adjustment using foot-operated switches on the wheel tower.
Setting Angle of Seat
Describes adjusting the seat angle using the middle handle on the right-hand side.
Setting Angle of Backrest
Details how to adjust the backrest angle using the rear handle on the right-hand side.
Setting the Back Height
Explains how to adjust the back height using the handle located on the back.
Page 12 Settings
Back Bolt
Describes setting the backrest angle by adjusting the bolt on the back of the backrest.
Adjusting the Armrest Height
Explains how to adjust armrest height by loosening and tightening a screw.
Adjusting the Armrest Width
Details adjusting armrest width by loosening a screw under the seat.
Fold-down Armrest
Instructions on how to fold down the armrest using a button and pushing it back.
Page 13 Settings
Adjusting Lumbar Support
Explains how to adjust lumbar support using a handle on the right side of the backrest.
360° Foot Pedal for Braking
Details how to activate and deactivate the chair's brake using the 360° foot pedal.
Hand Brake
Describes how to activate and deactivate the hand brake by moving the handle.
Folding Footrest
Information about the folding footrest and its use as a footboard.
Page 14 Settings
Rotation
Explains how to rotate the seat to different locked positions (90° left, neutral, 90° right).
Charging (EL)
Provides instructions for charging the chair's battery and understanding the LED indicator.
Electric Brake (EL)
Details how to activate/deactivate the electric brake via hand box or switches.
Setting the Angle of the Brake
Explains how to adjust the angle and position of the brake rod.
Page 15 Settings
Foot-Operated Electric Brake (EL)
Explains electric brake activation/deactivation using foot-operated switches.
Armrest for Surgeon's Chair
Instructions for adjusting armrest angle and cushion position for surgeon's chairs.
Adjustment of Armrest
Details how to adjust armrest height and emphasizes correct screw tightening.
Armrest for Sample Collection
Explains how to adjust the armrest angle for sample collection procedures.
Page 16 Settings
Strolling Bracket
Instructions for mounting and adjusting the strolling bracket for transporting a person.
Battery Indicator (EL)
Describes how to use the battery indicator button to check capacity and voltage.
Accessories
Information on the range of available accessories and where to find a complete list.
