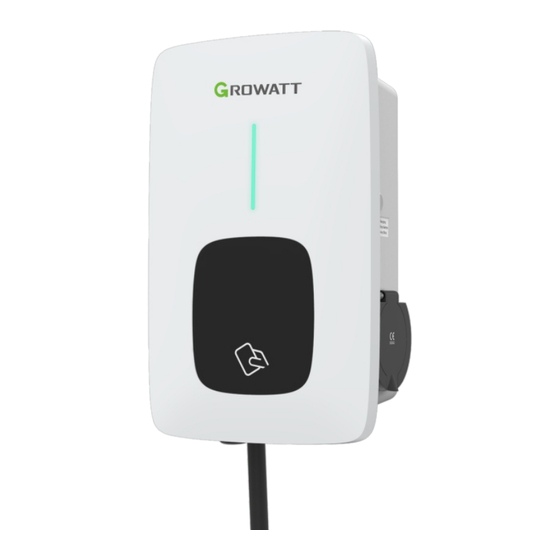

Growatt THOR 11AS-P-V1 Quick Installation Manual

3-phase ac charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

ShenzhenGrowattDynochargeEnergyTechnologyCo.,Ltd.
4th Floor, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street,
Baoan District, Shenzhen
T
+86 755 2747 1900
E
info@ginverter.com
W
www.ginverter.com
Revised date: 2024-01-25
THOR11/22AS-S-V1
3-phase AC charger Quick installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THOR 11AS-P-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Growatt THOR 11AS-P-V1

Summary of Contents for Growatt THOR 11AS-P-V1

  • Page 1 THOR11/22AS-S-V1 3-phase AC charger Quick installation guide ShenzhenGrowattDynochargeEnergyTechnologyCo.,Ltd. 4th Floor, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street, Baoan District, Shenzhen +86 755 2747 1900 info@ginverter.com www.ginverter.com Revised date: 2024-01-25...

  • Page 2: Safety Precautions

    All rights reserved. Check the charger cable and case regularly for damage. If the product is defective Growatt has the final right to interpret this user manual. The information in this or damaged, suspend use and contact Growatt for advice.
  • Page 3 Menu Product Description Operation Instruction 6.1 Charging Mode and Operation and LCD Description 6.2 LCD Interface Introduction Packaging List EV Charger Workmodes 7.1 Fast Mode 7.2 PV Linkage Mode Installation and Wiring 7.3 Off-peak Modes Other Settings 7.4 Load Balancing Function 3.1 Installation Conditions 3.2 Cable Connection Record...

  • Page 4: Product Description

    ProductDescription THREE-PHASE AC EV CHARGING STATION THOR series AC output charger Model THOR 22AS-S-V1 Rated input&output voltage Rated voltage 400V~ Rated frequency Rated frequency 50/60Hz Rated input&output current Rated current Rated power 22kW Rated output power Ingress protection IP65 Ingress protection Operating Normal operating temperature range -25°C...

  • Page 5: Packaging List

    Packaginglist Installationandwiring Name Remark 3.1Mountonawall 3.1.1 Open the packaging, you’ll see a EV charger, a mounting bracket, a user Charger manual and a bag of mounting accessories. There is also an RFID card if the EV charger is RFID version. For cabled version, a cable hooker is also included inside. User manual Quality certificate Mounting bracket...
  • Page 6 3.2Mountonapole 3.1.3 Put the EV charger onto the bracket, and fix it with the 2 screws at the bottom 3.2.1 Open the packaging of the pole, take out the pole and mounting accessories. of the EV charger. The installation is done. 3.2.2 The pole must be installed on a hard surface, concrete surface is recommended, it can also be mounted on a solid ground.

  • Page 7: AppDownload

    Users can scan the QR code (Android and IOS ) with the WeChat, or go to the App Store and Google Play to search for ShinePhone or log in to our monitoring website server.growatt.com or server-cn.growatt.com to download. 4.2Register 3.2.6 Crimp the below shown insulated ferrule or ring terminals on the end of the Before using ShinePhone APP the first time, the user must register an account in advance.
  • Page 8 4.3Signinandlogout a) Fill in the account information. To fill in the account information, you need to select the account country (required), fill in the user name (required), password (required), confirm password (required), telephone (required in China, optional for other regions), email (optional in China, required for other regions), installer code(optional).

  • Page 9: Wifi Configuration

    EVChargerInternetConfiguration 5.1WiFiConfiguration For new users, please click the "+" in the upper right corner of the overview, select a) Choose a related power plant after adding the device (Note: a power plant is “GroHome” and add device (EV Charger), for users who already have required to build before adding the EV Charger) had“GroHome”...
  • Page 10 5.2NetworkCableConnectionConfiguration a) Choose a related power plant after adding the device (Note: a power plant is required to build before adding the EV Charger b) Enter the serial number of the EV charger or scan the Bar/QR code to add the EV charger c) Select “Network Cable”...
  • Page 11 5.34GConfiguration Note:If the users want to set the static IP mode 1.Click “go to set” during (d) step and make sure the network cable is disconnected If the EV charger is a 4G model, then the user can click the “skip” directly during 2.Do the hotspot connection, connect to the WiFi whose name is consistent with the the page of network configuration methods.

  • Page 12: ApModeConfiguration

    OperationinstructionandLCDdescription 5.4APModeConfiguration If the network connection is abnormal, the users can use the AP mode to reset the 6.1ChargingmodeandOperation network or do some basic setting User can go to the “setting” page and click the “Charger setting”, to set the a)Click the AP mode, and enter the hotspot connection, click “next”...

  • Page 13: LcdInterfaceIntroduction

    6.2LCDinterfaceintroduction RFIDmode: Charging can only be initiated or ceased by swiping RFID card. Interface of standby status. Charging mode is displayed at the bottom centre of the screen. RFID mode operation process flow Interface of user card information Displayed for user to check card ID and balance when swiping RFID card while EV is not connected Plug&Charge:...
  • Page 14 EVChargerWorkModes 7.1FastMode Plug & Charge Interface of fault status. Displayed with fault code and fault Click “charge” directly and the EV will be charged at maximum power coming from a description when fault occurs. renewable energy source or simply from the grid, especially quick if you’re in a hurry, and support multiple control strategies of timer, charging capacity, charging budget.
  • Page 15 7.2PVLinkageMode Charging Capacity Reservation Users can set the target charging capacity(kWh) and the start time through clicking Introduction “energy”, and also can enable “every day” to make it to work following that strategy to work all the time Driven by solar, charge your car with renewable energy, the EV will be charged by the surplus solar power dynamically, combining PV and EV charger together to maximize the solar self-consumption rate and cut your bill.
  • Page 16 APP Operation The PV linkage mode require the EV charger to connect with an external current sensing device, and choose the corresponding configuration *(CT or meter type, choose the right brand of the meter type, Acrel or Eastron) S2 S1 S2 S1 Black White...
  • Page 17 Enabling this function will allow the EV charger to take power from the grid. During the solar power insufficient period, the EV charger will operate according to the default minimum charging power.For single phase EV charger the default value is 1.4kW.As for three phase EV charger, it’s 4.1kW.Once allowing the power take from the grid and set P(kW)value.
  • Page 18 SmartBoostFunction It’s useful to guarantees EV’s battery capacity before a set time when the off-peak time is not long enough. While users enable the smart boost function and set “pick-up time” and “preset electricity”, the EV charger will charge the EV with a target kWh figured by a set time, it may draw the power from the grid to guarantee the EV’s battery capacity when the off-peak time is not long enough.

  • Page 19: Other Settings

    OtherSettings The setting page includes basic information, network setting, pile setting, load balancing and authorization management. ●Basic information: EV charger ID, EV charger name, country and city, version number.
  • Page 20 Network setting: network connection method, network mode setting, gateway settings, subnet mask, DNS address ●Authorizationmanagement: Permissions: it’s useful for authorization management, add and authorize the other account which can use the EV Charger directly ●Chargersetting: 1) Charging activation: users can set the charging activation way like APP, RFID, plug and charge 2) Charging rates: users can set their charging fees, which could be used for the calculation of electricity cost and off-peak mode.
  • Page 21 ●Versionupgrade b)Appointmentrecord: Users can check the latest version of the inverter’s firmware and the current version Display the list of charging schedules that have been set before. they are used now.If there is new version,users can upgrade by clicking the ‘Upgrade’. Data Record a)Chargingrecord:...
  • Page 22 Configurationthroughinternalweb 3. Right-click on Local Area Connection and click on Properties. (ServiceTool) After the installation and wiring is done, connect the Charger to a computer and configure parameters via the web browser of the computer, then the Charger can be ready for use. 11.1Setcomputer’sIP The Charger’s default IP address is 192.168.1.5.

  • Page 23: ConfigureParameters

    5. Select "Use the following IP address" and enter the IP address, Subnet Mask, 11.2Configureparameters Default Gateway. Click OK and close the Local Area Connection properties window. Connect the charger to a computer via a network cable. Open the web browser and type in http://192.168.1.5:8080/ in the address field and click enter, then the parameter setting page of the charger will be opened up.
  • Page 24 (2) Charger ID, this is the unique identification of the Charger. If the charger is to be connected to Growatt back-office server, this ID must be set as the serial number on the nameplate of the Charger. Otherwise the Charger cannot be registered on the server.
  • Page 25 (12) Over temperature protection value, not suggested to change. (17) Set low electricity prices for charging time to reduce costs. Fig.12 (13)Interval for uploading metering data during charging, keep the default value. Fig.13 (14 )4G connection, when the 4G network cannot be connected, login SIM card APN and other information Fig.17 (18) Relieve the power grid pressure, authorized charging, after the set time to start.
  • Page 26 (22) Set the load balancing or Solar function, sampling instrument type and address. (29)Set daylight saving time for the charger to switch automatically. Fig.29 (30)Set daylight saving time for the charger to switch automatically. Fig.22 (23) Set the display language of the charger LCD. Fig.30 (31) In any mode, after the authorized charger starts, wait for the time to connect Fig.23...
  • Page 27 4. Insert the SD card into the charger, turn off and back on the charger, the update Thereare2waystoupdatefirmwareforEVcharger will start automatically. The indicator will first flash red and then flash green with a 1. Update by SD card long beep as the end of the update(sometimes the beep sound may not be clearly 2.
  • Page 28 11.4Updateonparametersettingpage During the update, the LED indicator will behave as below, First flash red and goes out with a short beep sound, during this period the Using this method for update doesn’t require any specific name for the firmware file. firmware file is transmitted to the charger’s flash memory from the computer;...

  • Page 29: Troubleshooting

    Troubleshooting 12.2Firmwareupdatefails 12.2.1FirmwareupdatefailurewithSDcard: 12.1TroubleshootbyLEDbehaviororLCDdisplay a. Check if the capacity is over 4G bytes,please use a SD card of less than 4G to retry; If fault occurs, users can check the fault information on the LCD or by the number of b.
  • Page 30 a. Please check and input the correct WiFi SSID and password to retry; If you check the WiFi setting on the APP, please turn off and back on the charger and c. 1. Some routers have 2 WiFi, one is 2.4GHz, the other is 5GHz. Most homes just use connect your mobile to the WiFi emitted by the charger for checking and setting.
  • Page 31 d. Check if the charger is still connected to the computer. Please unplug it from (3). Right-click on Local Area Connection and click on Properties. computer otherwise the charger won’t connect to the back-office server. e. Check if server address is correct in the“Server URL” field. The correct setting is : ws://ess-charge.Growattpower.com:80/ocpp/ws 12.4Cannotaccessparametersettingpage (4).
  • Page 32 12.5Chargingissue (5). Select "Use the following IP address" and enter the IP address, Subnet Mask, Default Gateway. Click OK and close the Local Area Connection properties window. If charging cannot start after the car is plugged in a. Check if the red emergency stop button is pressed b.

  • Page 33: Specification

    Specification THOR11/22AS-S-V1 Model Table2-1Producttechnicalspecifications Dimension(mm) 240/380/164mm Wirelessstandard:IEEE802.11n,IEEE802.11g,IEEE802.11b Networkstandard Weight(kg) ＜5.5/6.5 Display 11n:up to 150Mbps Casing Material Stainless steel& Engineering plastics& Tacrylic 11g:up to 54Mbps Wireless transmission rate Input 11b:up to 11Mbps Voltage AC 400V 2.4g:1-14 Channel Output Voltage Frequency 2412-2488MHZ AC 400V Max current 16/32A...

  • Page 34: Warranty

    14.2Contact not allowed environment, by improper storage or usage, etc.(e.g. too high or too low temperature,moisture or too try environment, high altitude or unstable CompanyName:ShenzhenGrowattDynochargeEnergyTechnologyCo.,Ltd. voltage/current etc.) Address: 4th Floor, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street, 4. Failure or damage caused by the installation repair, modification or disassembly by unauthorized service personnel;...

  • Page 35: Eu Declaration Of Conformity

    EUDeclarationofconformity This declaration is issued under the sole responsibility of the manufacturer Shenzhen Growatt New Energy Co., Ltd. This is to declare that the products listed below have been developed, constructed and manufactured according to the following EU directives: • LVD directive 2014/35/EU& EMC directive 2014/30/EU...
