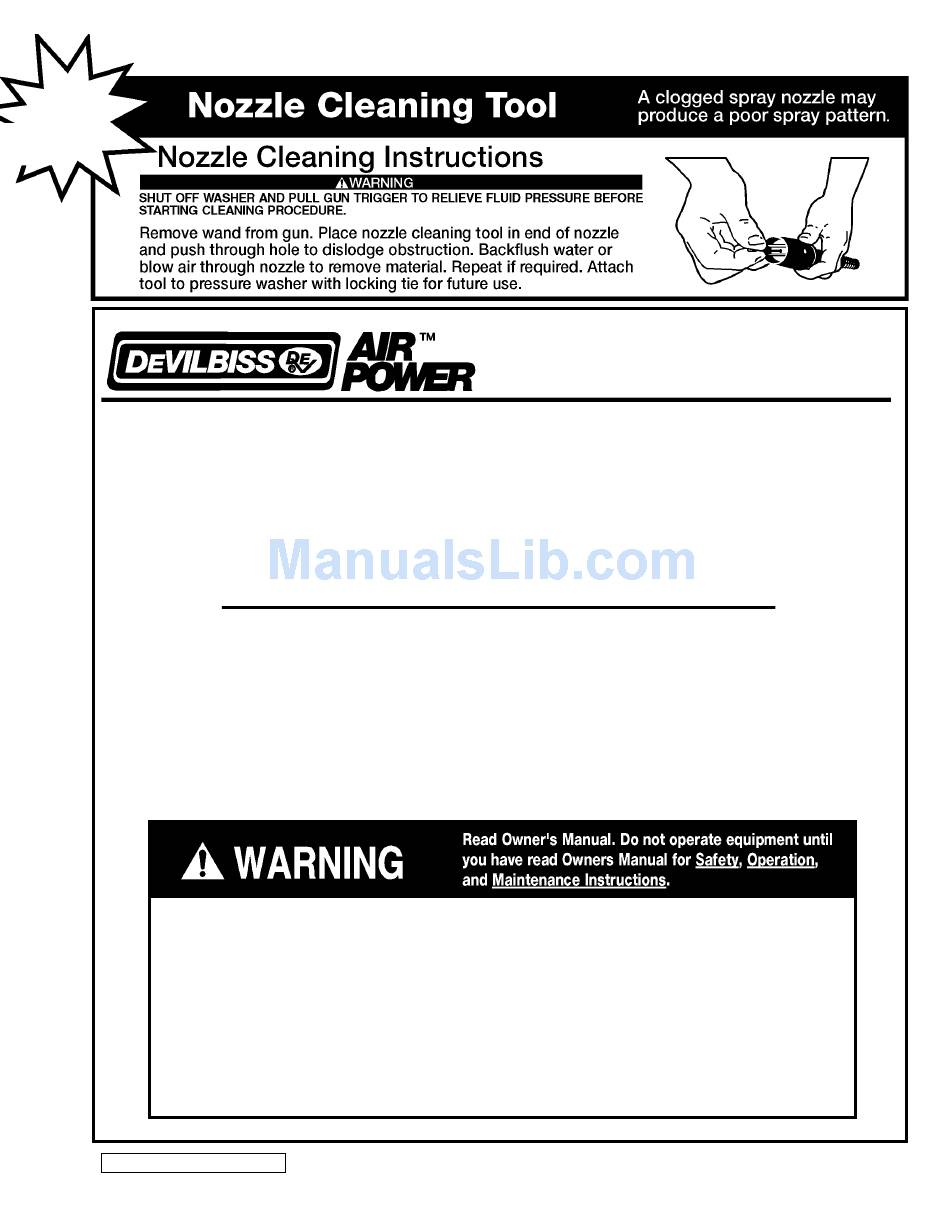

OWNERS MANUAL FOR PRESSURE WASHER
MODEL
PUMP PRESSURE
FLOW RATE
HORSEPOWER
HOSE
PKG. WEIGHT
INLET WATER PRESSURE
INLET WATER TEMPERATURE
•
This product is not equipped with a spark arresting muffler. If the product will be used around flammable
materials, or on land covered with materials such as agricultural crops, forest, brush, grass, or other similar
items, then an approved spark arrester must be installed and is legally required in the state of California. It is a
violation of California statutes section 130050 and/or sections 4442 and 4443 of the California Public Resources
Code, unless the engine is equipped with a spark arrestor, as defined in section 4442, and maintained in effective
working order. Spark arresters are also required on some U. S. Forest service land and may also be legally
required under other statutes and ordinances.
•
Engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects or
other reproductive harm.
MPG-1530-A
11/17/95
Model No. WG1530
SPECIFICATION CHART
DeVilbiss Air Power Company • 213 Industrial Drive • Jackson, TN 38301-9615
WG1530
1500 P.S.I. MAX
3.0 G.P.M.
5 HP GAS ENGINE
25' HIGH PRESSURE HOSE
75 LBS.
20-145 P.S.I.
60ºC/140ºF Maximum
Advertisement
Table of Contents
Related Manuals for DeVilbiss WG1530
Summary of Contents for DeVilbiss WG1530
-
Page 1: Specification Chart
• Engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects or other reproductive harm. DeVilbiss Air Power Company • 213 Industrial Drive • Jackson, TN 38301-9615 MPG-1530-A 11/17/95 WG1530 1500 P.S.I. -
Page 2: Table Of Contents
TABLE OF CONTENTS WARRANTY STATEMENT ... 3 SAFETY GUIDELINES ... 4 IMPORTANT SAFETY INSTRUCTIONS ... 4-7 GLOSSARY ... 7 GENERAL PARTS IDENTIFICATION ... 8 OPERATING INSTRUCTIONS ... 9 MAINTENANCE & STORAGE ... 10 MAINTENANCE SCHEDULE FOR PUMP ... 10 MAINTENANCE SCHEDULE FOR GAS ENGINE ... 11 TROUBLE SHOOTING GUIDE ... -
Page 3: Limited Warranty
(income producing) are covered by a 90 day warranty. DeVilbiss Air Power will repair or replace, at DeVilbiss's option, products or components which have failed within the warranty period. Repair or replacement, and service calls on 60 and 80 gallon air compressors, will be handled by Authorized Warranty Service Centers and will be scheduled and serviced according to the normal work flow and business hours at the service center location, and depending on the availability of replacement parts. -
Page 4: Safety Guidelines
SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIP- MENT PROBLEMS. To help you recognize this information, we use symbols to the right. Please read the manual and pay atten- tion to these sections. -
Page 5: Risk Of Explosion Or Fire
Fuel improperly secured could get into the hands of children or other unqualified persons. Materials placed against or near the pressure washer can interfere with its proper ventilation features causing overheating and possible ignition of the materials. Engine speed has been factory set to provide safe operation. - Page 6 U se only hose and high pressure accesso- ries rated for 3000 PSI service. O perate pressure washer in clean, well ventilated area. Avoid enclosed areas like garages, basements, storage sheds, etc. which lack a steady exchange of air.
-
Page 7: Glossary
PUMP PRESSURE: Can be adjusted from 100-1500 P.S.I. by turning pressure regulator. PRESSURE WASHER PUMP: Delivers high water pres- sure. Pressure washer pump is shipped with oil. 5 HP Engine: Gasoline powered engine drives pump. Engine is shipped without oil. See Manufacturers Operators' Manual for oil recommendations. -
Page 8: General Parts Identification
Can be adjusted from 100 - 1500 PSI. 12. 5 HP TECUMSEH ENGINE- Included with this pressure washer is a copy of the engine Manufacturer's Operator's Manual. The engine is shipped without oil. Read Manufacturer's Operator's Manual for oil recommendations. -
Page 9: Operating Instructions
DO NOT POINT WAND AT SELF OR OTHERS. 8. Pull trigger on gun to start pressure exiting from end of wand. The pressure washer may need to be re-primed if it has not been used for awhile. To do this hold the... -
Page 10: Maintenance & Storage
MAINTENANCE AND STORAGE This pressure washer should be stored in such a way to protect it from freezing. Do not store this unit outdoors or in an area where temperatures will fall below 32ºF. This can cause extensive damage to this unit. Drain as much water as possible as follows: 1. -
Page 11: Maintenance Schedule For Gas Engine
Note 1: Change oil every 25 hours when operating under heavy load or in high temperatures. Note 2: Clean more often under dusty conditions. Note 3: Clean exterior with cloth or brush. Do not use high pressure spray to clean pressure washer or engine. -
Page 12: Accessories/Cleaning Solutions/Service Parts
ACCESSORIES/CLEANING SOLUTIONS/SERVICE PARTS • Fits DeVilbiss pressure washer gun • High pressure rotating spray for maximum cleaning • Durable ceramic nozzle • Brass thread connections eliminate leakage • Fits DeVilbiss pressure washer wands • 7 in. dia. nylon brush with rotating brush •... - Page 13 ACCESSORIES/CLEANING SOLUTIONS/SERVICE PARTS • For use with DeVilbiss pressure washers • Cuts through grease and oil • Removes grease, oil, and other tough stains • Ideal for cleaning engines, grills, and farm equipment • Pre-mixed – ready to use • One U.S. gallon (3.79L) •...
-
Page 14: Service Notes
SERVICE NOTES... -
Page 15: Service Notes
SERVICE NOTES... -
Page 16: Pressure Washer
Warranty Repair Work. This product is covered by the DeVilbiss one year limited warranty (SP-100-E). The warranty can be found on page 3 or is available upon request. DeVilbiss Air Power Company • 213 Industrial Drive • Jackson, TN 38301-9615 Here. WARRANTY...
