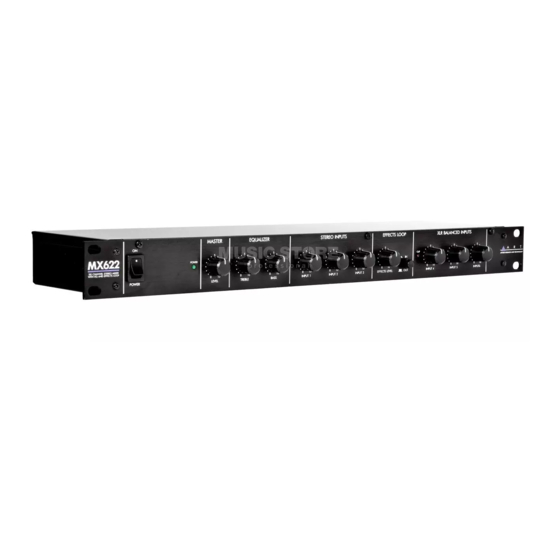

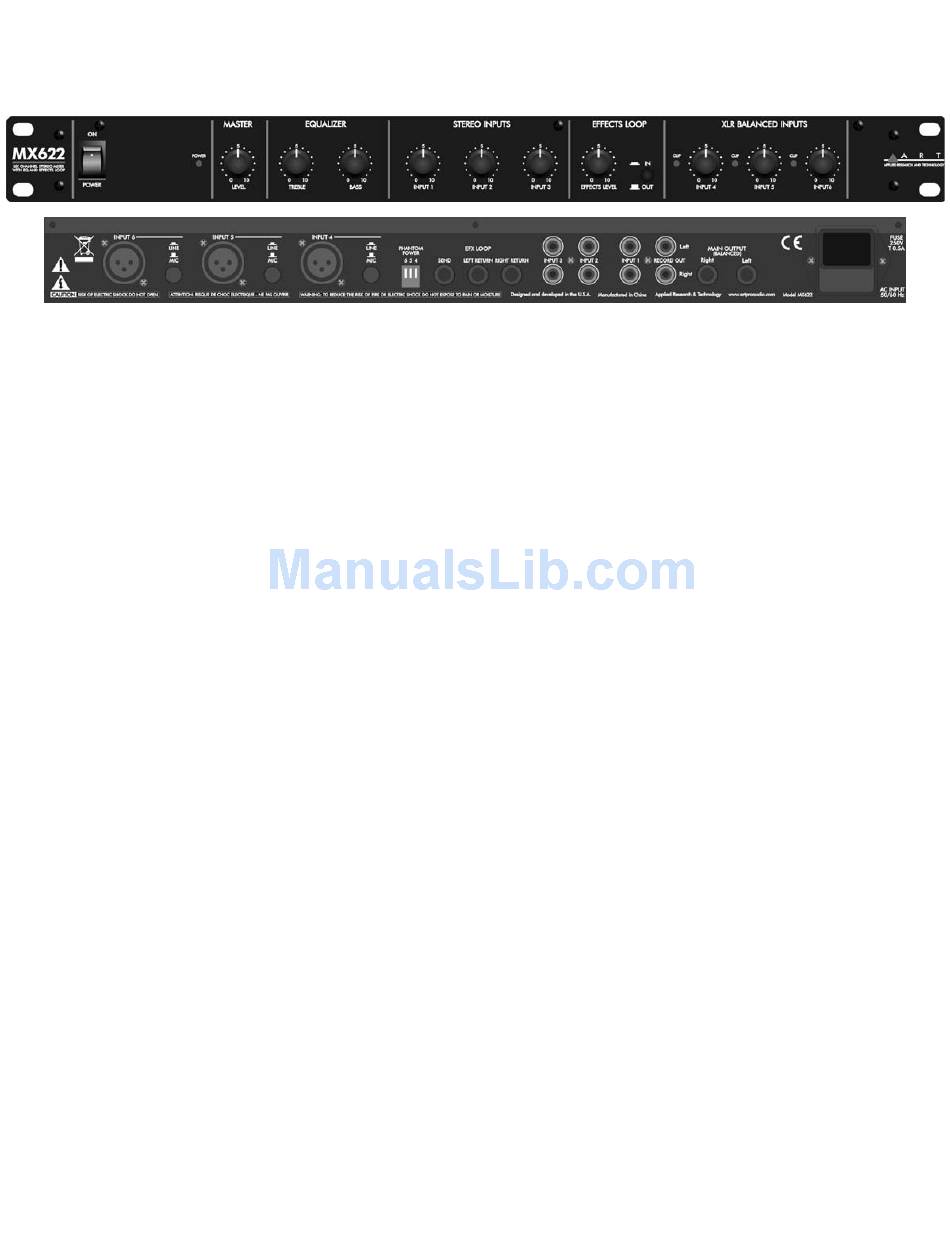

The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Each
mono balanced XLR input includes fully variable Input gain, Mic/Line switch, Clip indicator, and selectable 15 Volt Phantom power. An external effects loop
section provides a mono Send from the three Mic/Line channels to external equipment and stereo Returns with Effects Level and In/Out switch. Three stereo line
level inputs are also provided via RCA type jacks with separate Level controls for each stereo pair. Stereo Record output RCA jacks provide full-level signal of
the entire mix at all times. Main outputs are stereo balanced ¼" TRS with Master Level and full range Bass/Treble equalization. The built in power supply and
single high 19" rack mount format allows for easy installation and reliable operation.
FEATURES:
Three balanced XLR inputs with separate Mic/Line switch, Level control and Clip Indicator
Three pairs of RCA stereo inputs with separate Level controls
Selectable 15 Volt Phantom power for each Mic channel
Balanced ¼" TRS Main outputs with Master Level control
Versatile Bass and Treble equalization on Main outputs
Stereo Record Out RCA jacks
Effects Loop with Effects Level control and In/Out switch
¼" Effects Send with stereo Returns
SPECIFICATIONS:
Input Connections:
Output Connections:
Input Impedance:
Output Impedance:
Maximum Input Level:
Maximum Output Level:
Phantom Power:
Maximum Gain:
Signal to Noise Ratio:
THD:
Equalizer Range:
Power Requirements:
Dimensions: (HxWxD in)
Dimensions: (HxWxD mm)
Weight:
a) Verify proper voltage selection on the IEC style power connector for your location. Connect the AC cord to a grounded AC outlet.
b) Connect Mics or balanced Line inputs to the XLR sockets.
c) For Mic channels requiring phantom power (for condenser mics), move the DIP switch to the down position to activate phantom power for each XLR input.
d) Set each Mic/Line switch as required for the type of input signal level.
e) Connect stereo signal sources (CD, tape/MP3 player, etc.) to input channels 1, 2, and 3 using RCA type unbalanced cables.
f) To patch-in effects, using three shielded TS (unbalanced) cables, connect the Efx Loop Send jack to the input of the effects unit and the unit's stereo outputs
to the Left and Right Efx Loop Return jacks. Once the MX622 is connected to the main mixer, tape deck, computer interface, or power amplifier, apply a test
signal, set the Efx Loop In/Out switch on the front panel to the IN position, and adjust the Efx Level control for the desired effects intensity.
g) The Left and Right Efx Loop Return jacks may alternately be used as a stereo line input with its own level control and In/Out switch.
h) Connect either the ¼" balanced Left and Right Main Output jacks or the RCA Record Out jacks to the input of the mixer, tape deck, computer, or power
amplifier with the appropriate balanced or unbalanced, shielded cables.
i) Switch on the power and set the Master Level to the ½ way setting, then adjust the input channel Level controls as required for the best mix and level while
checking the Mic/Line channel CLIP LEDs for activity. Turn down any channel with CLIP activity until the LED is on during extreme peaks only.
j) Adjust BASS and TREBLE controls for the desired balance. The mid position has flat frequency response.
k) Re-adjust the Master Level as required for best signal level.
Six Channel Stereo Mixer with EQ and Effects Loop
XLR-F balanced (3), ¼" unbalanced (2), RCA (6)
¼" TRS balanced (2), ¼" unbalanced (1), RCA (2)
600/22K Ohms Mic/Line XLR inputs, 10K Ohms RCA inputs, 22K Ohms ¼" Efx Returns
50 Ohms ¼" Main outputs, 1K Ohms RCA Record outputs, 100 Ohms Efx output
-10dBu/+20dBu Mic/Line XLR inputs, +20dBu RCA line inputs, +20dBu Efx inputs
+24dBu balanced Main outputs, +20dBu RCA Record outputs, +20dBu Efx output
+15 Volts DC, regulated low noise
56dB/26dB Mic/Line, 26dB RCA inputs
>90dB typical
.01% Typical
+/-12dB @ 100Hz & 10KHz
USA – 105 to 125 VAC / 50-60Hz, 15 Watts typical
1.75 x 19.0 x 6.0
(44.5 x 483 x 152)
6.2 lbs. (2.8kg)
ART – MX622
OPERATION MANUAL
INTRODUCTION
OPERATION
