Art MX524 User Manual

Five channel four zone mic/line mixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MX524
FIVE CHANNEL FOUR ZONE MIC/LINE MIXER
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX524 and is the answer not in the manual?

Questions and answers

Related Manuals for Art MX524

Summary of Contents for Art MX524

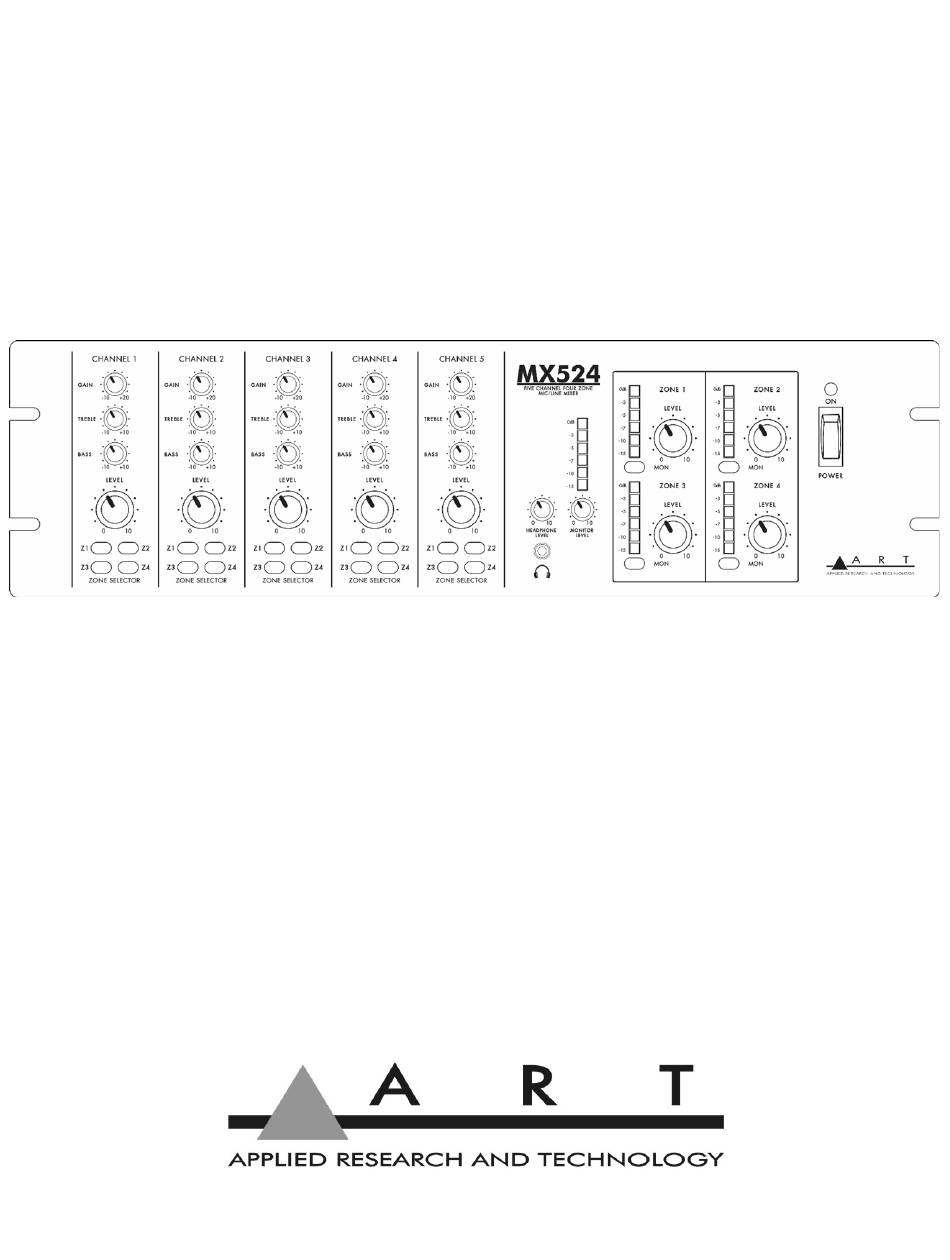

  • Page 1 MX524 FIVE CHANNEL FOUR ZONE MIC/LINE MIXER USER'S MANUAL...

  • Page 2: Important Safety Instructions - Read First

    IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, this symbol, wherever it appears, alerts you to the presence of uninsulated alerts you to important operating and dangerous voltages inside the enclosure maintenance instructions in the that may be sufficient to constitute a risk. accompanying literature.
  • Page 3 Separate level, bass and treble controls adjust the sound of each input channel. The ART MX524 may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.

  • Page 4: Operation

    OPERATION Front Panel Controls 1. Gain pot The pot optimizes the input level for this channel. Turning the pot clockwise increases the input level. 2. High pot This is the Treble control. You can get minimize high frequency noise or boost the sound of cymbals or high frequency harmonics.
  • Page 5 4. Volume pot The pot controls the individual channels volume levels. 5. Zone selector Zone’s 1-4 can be assigned when these switches are engaged. Engage the button Z1 and the signal is assigned to ZONE1. Release the button to disengage the signal from ZONE1. Zones 2-4 can be assigned the same way.

  • Page 6: Rear Panel Connections

    MX524 is powered down the RED LED light will go off. 13. Power switch When the switch is set to the ON position, the MX524 is powered on. When the switch is set to the OFF position the MX524 is powered down.
  • Page 7 16. AC Voltage Selector When the AC voltage selector is set to the left 115V, the unit accepts AC input voltages from 100V to 127VAC. When the AC voltage selector is set to the right 230V, the unit requires an AC input voltage between 220V to 240V.
  • Page 8 21. Tel. Input a Zone This function will duck the signals present on zones 1 through 4 when the dip switch is engaged for each zone. Set the switch to the low position to enable sending this phone signal to the corresponding Zone output.
  • Page 9 23. The Mono MIC/LINE channels You can connect balanced line level or MIC level sources to these combo jacks. On the ¼-inch phone jack you can connect either a microphone or a line level instrument. You cannot connect an unbalanced microphone to the XLR jack, as it will damage both the microphone and the mixer.
  • Page 10 26. DC Power Supply The MX524 mixer can operate using a 24Vdc power supply. When both the AC and DC source are connected, the MX524 runs off the AC power source. The DC supply is used when the AC source fails.
  • Page 12 Dedicated CH1 Mic/Line Ducking and Rear Priority Switch Function The Ch1 Mic/Line Input is setup (factory default) as a dedicated talk over feature. The ducking function for the CH1 Mic/line input can be deactivated by moving an internal jumper located on the rear ckt board in the unit.

  • Page 13: Warranty Information

    Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (ART) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase.
  • Page 14 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. 3. Select “Support”, then “Return Authorization Request” to request a return authorization number.

  • Page 15: Specifications

    Export units configured for country of destination Dimensions (HWD) 5.1-inch x 19-inch x 7.5-inch 130mm x 483mm x 191mm Weight 6.63 lbs. (3.0 kg) Note: 0 dBu = 0.775Vrms ART maintains a policy of constant product improvement. Therefore, specifications are subject to change without notice.
  • Page 16 E-mail: support@artproaudio.com © 2021 Applied Research & Technology MX524 524-5004-102 FIVE CHANNEL FOUR ZONE MIC/LINE MIXER...
