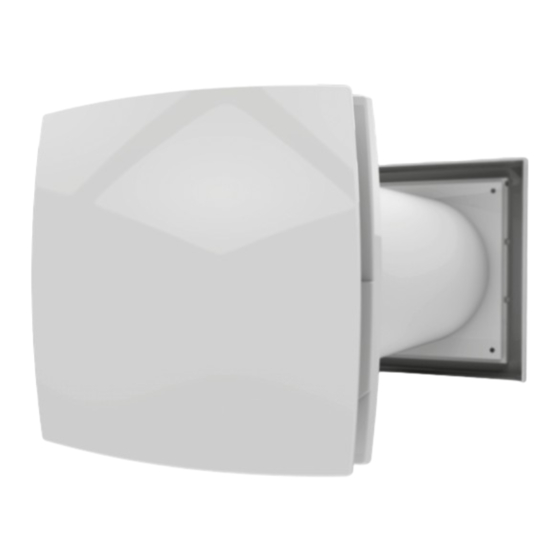

- Page 1 USER’S MANUAL Solo RA1-35 R Solo RA1-35 R V.2 Solo RA1-50 R V.2 Solo RA1-60 R V.2 Single-room reversible energy recovery ventilator...
-
Page 2: Table Of Contents
Solo RA1-35/50/60-9/7 R (V.2) CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and functioning ................................6 Mounting and set-up .................................. 7 Connection to power mains ..............................9 Technical maintenance ................................ - Page 3 Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. The information in this user’s manual was correct at the time of the document’s preparation.
-
Page 4: Purpose
The ventilator is designed for installation on external walls. The ventilator is rated for continuous operation. DELIVERY SET NAME NUMBER Solo RA1-35 R Solo RA1-35 R V.2; Solo RА1-50 R V.2; Solo RА1-60 R V.2 Ventilator 1 pc. 1 pc. Remote control –... -
Page 5: Technical Data
Diameter of the hole in the wall for Minimum possible wall Air duct diameter dimension mounting the ventilator thickness Solo RA1-35 R 120 – 125 Solo RA1-35 R V.2 Solo RА1-50 R V.2 145 – 150 Solo RА1-60 R V.2 170 – 175 www.ventilation-system.com... -
Page 6: Design And Functioning
Solo RA1-35/50/60-9/7 R (V.2) DESIGN AND OPERATING PRINCIPLE The ventilator consists of an air duct, a ventilation unit and an outer ventilation hood. Two filters, a regenerator, a distance ring and two air flow rectifiers are installed in the air duct. The air filters are designed to purify supply air and prevent foreign object ingress into the regenerator and the fan. -
Page 7: Mounting And Set-Up
MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. DO NOT BLOCK THE AIR DUCT OF THE INSTALLED VENTILATOR WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. To install an external ventilation hood or grille, it is necessary to have access to the outer wall surface at the installation site. 1. - Page 8 3. Install the assembled regenerator and the limit ring into the air duct. In Solo RA1-35 R and Solo RA1-35 R V.2 models, the limit ring is connected to the regenerator. In Solo RA1-50 R V.2 and Solo RA1-60 R V.2 models the limit ring is inserted separately.
-
Page 9: Connection To Power Mains
The unit is equipped with an electric motor, which has two fixed speeds. Controlling the Solo RA1-35 R ventilator using a pull cord switch The ventilator is connected to power mains using a cord with a plug with a switch on the wire. - Page 10 Solo RA1-35/50/60-9/7 R (V.2) Controlling the Solo RA1-35 R V.2, Solo RА1-50 R V.2, Solo RА1-60 R V.2 ventilator using the remote control The ventilator is connected to power mains using a cord with a plug. The functions of the remote control buttons are shown in the figure below.
-
Page 11: Technical Maintenance
TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters. Accessing the main units for servicing and maintenance is as follows. Remove the front part of the indoor unit by unscrewing the self-tapping screw. - Page 12 Solo RA1-35/50/60-9/7 R (V.2) 3. Replacing the battery in the remote control (when needed). No response of the ventilator for pressing the remote control buttons indicates the need to replace the battery. The battery type is CR2025. To replace the battery of the remote control, remove the battery holder with a battery.
-
Page 13: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 14: Manufacturer's Warranty
Solo RA1-35/50/60-9/7 R (V.2) MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 15: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Single-room reversible energy recovery ventilator Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 16 V132EN-09...
