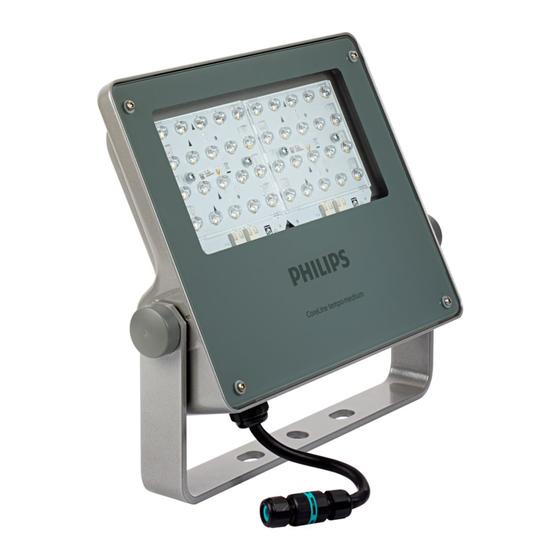

Philips BVP125 LED80-4S/740 Manual

CoreLine tempo
medium
BVP125
01
EN60598
BVP125 LED120-4S/740
BVP125 LED80-4S/740
BVP125 LED98-4S/830
BVP125 LED67-4S/830
Dimensions in mm
340.5
CoreLine tempo Medium
129
15.8
26.3
583-443000020863_M
07/2021
© Signify Holding. All rights reserved
- DALI
- PSU
- No connector
220V
240V
Luminaire Power
Flux (lm) (W)
12000 95
8000 63
9800 97
6700 67
265
323
Ø18.2
outdoor
50Hz
60Hz
CCT CRI
4000 70
3000 80
67.4
40
260°
1/12
LIFE
IK08
L80B10
70 Khrs
RG=1
m
2
Beam
S/OFA52 0.1
Inrush current
I mains (A)
I max
max/2
Tref
LED120
Electrical
characteristics
Imax (A) 53
Tref (µs) 300
Surge 6 (diff. mode)
protection(kv) 8 (comm. mode)
MCB Max. luminaires
B-10 A 4
B-13 A 4
B-16 A 4
B-20 A 8
B-25 A 12
C-10 A 8
C-13 A 10
C-16 A 13
C-20 A 16
C-25 A 20
Printed in Spain
Data subject to change without notice
Keep for future reference: www.lighting.philips.com
17
T20
IP66
kg
5
I nom.
Time (us)
LED80
53
300
4
4
4
8
12
8
10
13
16
20
