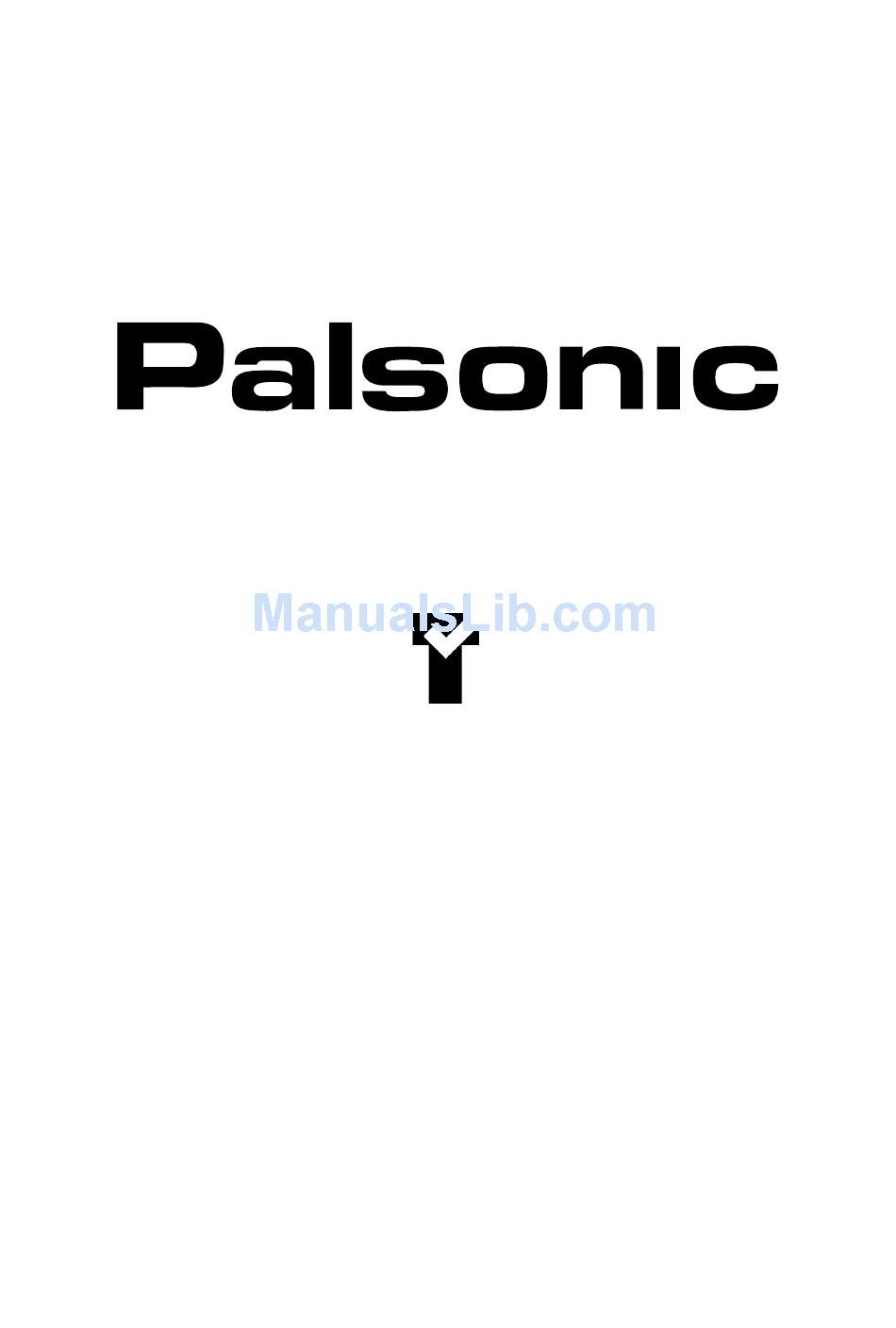

OWNER'S MANUAL
76CM CORDLESS REMOTE COLOUR TELEVISION
MODEL: 7600WS
Type Tested
Electrical
Safety
AS/NZS 3250 Lic 4166
Standards Australia
APP No: N15900
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA: 1300 657 888
Advertisement
Table of Contents
Related Manuals for Palsonic MODEL 7600WS 1
Summary of Contents for Palsonic MODEL 7600WS 1
- Page 1 76CM CORDLESS REMOTE COLOUR TELEVISION MODEL: 7600WS Type Tested Electrical Safety AS/NZS 3250 Lic 4166 Standards Australia APP No: N15900 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE...
-
Page 2: Table Of Contents
Contents Congratulations on your purchase of this Palsonic colour television. We recommend that you thoroughly read this manual before use to fully enjoy the many functions and excellent effects of this equipment. Retain this manual in an easily accessible location for future reference. -
Page 3: Features
Main features Hyperband Automatic channel preset Full function remote control AV input/output (RCA) jacks DVD input (RCA) jacks Selectable picture and selectable sound NICAM and German stereo/bilingual broadcasts (option) Teletext ON Timer, OFF Timer Real Clock (with teletext signal) Program sort and program name Child lock (option) Hotel lock (option) Digital comb-filter... -
Page 4: Safety Precautions
Safety precautions Note: This TV set can operate on an AC power of 240V, 50Hz. You must not use a power supply of any other type. When any unusual situation occurs, turn off the power supply at once and remove the plug from the wall outlet. - Page 5 Safety precautions Do not cover the ventilating hole in the cabinet Keep a space of more than 10cm from the walls to the TV set to ensure adequate ventilation. If the power cord or the plug is damaged contact a qualified service department for service.
-
Page 6: Identification Of Controls
Identification of Controls Front/Side AV(3)/SVHS Earphone jack S-VIDEO AV3 input/S-VHS input VIDEO (S-VIDEO, VIDEO, AUDIO (L/MONO, R)) L/MONO POWER SWITCH REMOTE SENSOR INDICATOR VOL- VOL+ AV/TV MENU Volume down Menu Volume up AV/TV Channel down Channel up Back Antenna input DVD input AV1 output (VIDEO, Y,Cb,Cr,... -
Page 7: Remote Controller
Identification of Controls Remote controller Power on/standby Real clock (teletext) Hold (teletext) Reveal/conceal (teletext) Size (teletext) Mix (teletext) Index (teletext) Teletext/TV Sound mute Enter into Earphone state Direct channel select TV/VIDEO input select Digit select Previous program --/ --- MENU Return to TV mode/Clear the menu Volume up/down Channel up/down... -
Page 8: Antenna Connection
Antenna connection Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The exact type and position of the aerial will depend upon your particular area. Notes: It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave conditions. -
Page 9: Installation
Installation Effective range of the Remote Installing batteries Open the battery cover. Install two "AAA" batteries matching the +/- polarities of the battery to the +/- marks inside the battery compartment. --/--- GAME LOCK SOUND Notes: Replace the battery cover. When there is an obstacle between the TV Notes: and the transmitter, the transmitter may not... -
Page 10: External Equipment Connections
External equipment connections Using the side AUDIO/VIDEO Jacks The optimal use for the side A/V jacks are to connect an A/V component that is used only occasionally, such as a camcorder or video game. Connect the Audio/Video output jacks of the external unit to the Audio Input jacks and the Video Input jacks. -
Page 11: Using The Rear Audio/Video Input Jacks
External equipment connections Using the rear AUDIO/VIDEO input Jacks You can connect video equipment such as a VTR and video camera to this TV and enjoy the high quality pictures and sound. To access the unit to AV1 or AV2 inputs, press 0/AV button until AV1 or AV2 appears on the screen yellow (video) VIDEO EQUIPMENT VIDEO EQUIPMENT... -
Page 12: Using The Rear Av Outputs
External equipment connections Using the AV Outputs You can connect a stereo system to the AV output jacks on the TV set rear to enjoy a high-quality sound from the stereo system, or you can connect the AV output jacks to the VTR to record the program you like. To external input TV SET REAR Yellow (video) -
Page 13: Power On/Off
Power on/off Turning on Press the Power Switch on the TV set. (On/standby) Now the standby indicator lights up, the TV set is in STANDBY mode. Now please follow step 2. In STANDBY mode, press the button or 0-9 digit button on the remote controller and the TV set is turned on. -
Page 14: Selecting Input Signal
Selecting input signal Watching AV program This TV set provides AV and DVD input terminals for your convenient connection to VCR, DVD or other video equipment. To watch video program from AV inputs or DVD inputs, Press 0/AV button repeatedly until you see the appropriate input indicator on the screen. -
Page 15: Tuning In
Tuning in Automatic Tuning Program Press MENU repeatedly to Automatic tuning display Program menu. Manual tuning Program Program Automatic tuning Manual tuning Press CH+ or CH- to select Automatic tuning. Program Automatic tuning --/ --- MENU Press VOL+ to start automatic CH+/- Program 48 MHz... -
Page 16: Manual Tuning
Tuning in Manual tuning If automatic tuning can not preset the desired channels, or you want to preset the desired channels one by one with the preferred channel numbers, please make use of Manual tuning. Program Repeatedly press MENU to enter into Program menu. -
Page 17: Fine Tuning
Tuning in Fine tuning Fine tuning is not necessary under normal conditions. However, in area of inferior broadcast conditions where adjustment is necessary for a better picture and sound, use Fine tuning. Select a channel you want to Program fine-tune (for example: Automatic tuning Manual tuning channel 3). -
Page 18: Setting Colour System
Tuning in Setting Colour System If some channel's colour is abnormal, it may be that the setting of the colour system is wrong, please do the following steps to set a proper colour system. Special functions Press MENU repeatedly to display Special functions English Language... -
Page 19: Channel Delete
Channel edit Program delete After presetting the channels, you may delete unnecessary programs so that only the programs you want to watch are selected. Use digit buttons or channel Program up/down button to select a Automatic tuning program you want to delete Manual tuning (for example: program 3). -
Page 20: Program Sort
Channel edit Program sort You can sort programs in your favourite order. Select the program you want to move using channel select buttons (for example: program 3). Press MENU repeatedly until Program menu appears. Program Press CH+/- to select Automatic tuning Program 003. -
Page 21: Channel Selection
Channel selection Use Direct Channel Select buttons To select one-digit channel: Press --/--- button to display "-", then input the number. Press "--/---" button Press 0-9 button To select two-digit channel: Press --/--- button to display "--", then input the number. Digit buttons Press... -
Page 22: Picture Adjustment
Picture adjustment To select the picture mode You can select the picture quality instantly among three preset Picture mode Standard modes and one user-set mode. Picture mode Dynamic Press the P.M button to select the desired picture quality. Standard, Dynamic, Mild and Favourite (user Picture mode Mild -set) can be selected cyclically. -
Page 23: Sound Controls
Sound controls Adjusting volume Use VOL+ or VOL- button. Press VOL+ button, the volume increases; Volume Press VOL- button, the volume decreases. (Sound mute) Use MUTE button. If you want to mute the sound, press button on the remote. Digit buttons To resume the sound, press this button again. -
Page 24: To Select Stereo/Bilingual Mode
Sound controls The unit receives both stereo and bilingual broadcasts transmitted in either the NICAM or German stereo/bilingual broadcast system. Stereo programs When a stereo program is Auto B/G Stereo received, STEREO appears. Enter into earphone state Press the SOUND button to select Auto B/G Mono the stereo/monaural mode. -
Page 25: Timer Setting
Timer setting Setting clock Press MENU button repeatedly to display Timer menu. Timer Press CH+/- to select Clock. Clock 10:01 Timer off --:-- Use digit buttons to input the Timer on --:-- Timer set --:-- current time for the set. If Prog no wrong in setting the time, press RED button to cancel... -
Page 26: Setting On Timer
Timer setting To turn on the TV automatically (ON timer) With the ON timer, the TV will automatically turn on to a (On/standby) preset channel at a preset time. In Timer menu, press CH- to select Timer on. Timer Use Digit Buttons to set ON Clock 10:02 Timer off... -
Page 27: Special Functions
Special functions To select OSD language There are multi OSD languages in this TV set provided for you to select (OSD: on-screen display): Press MENU repeatedly to display Special functions menu. Special functions Now the first menu item is English Language Blue back highlighted and indicates the... -
Page 28: Child Lock Setting
Child lock setting * Child lock is an optional function. Child lock setting Making use of child lock function, you can lock all the programs to prevent children from viewing them. Press LOCK button on the Lock Lock ------ ------ remote control, the Lock menu bar appears. -
Page 29: Hotel Lock Setting
Hotel lock setting * Hotel lock is an optional function. Hotel lock setting Making use of hotel lock function, you can limit some functions so that other user can not change your settings. This function is especially useful in hotel. Press button on the Hotel... -
Page 30: Game Playing
Game playing To play game (card game) Press GAME button to enter. Press MENU button to select level. There are five levels for you to select. The higher the level, the more difficulty the playing. Press CH+/CH-/VOL+/VOL- button to select card, press OK button the card will be turned over. -
Page 31: Teletext
Teletext Teletext is an optional function, therefore only a set with the teletext system can receive the teletext broadcast. Switching Teletext on/off Press button once to switch on teletext. (Real clock) Press button twice both teletext and TV program are displayed. (Hold) Press button third time to switch off the teletext. -
Page 32: Troubleshooting Guide
Troubleshooting Guide Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. Symptoms Check the following items Be sure the power cord is plugged in. Power is not turned on Poor colour poor tint Contrast, colour tint are not correctly adjusted Possible interferences of automobiles, motorcycle, Spots appear on the screen... - Page 33 Troubleshooting Guide Reception disturbances Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna. Outdoor antennas are recommended for best results if not using cable. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance may be caused by the local cable company broadcast.
-
Page 34: Specifications
Specifications Power Supply: AC 240V, 50Hz Power Consumption: 200W Dimensions (mm): 874 (W) x 567 (H) x 555 (D) Weight (kg): CRT: 76cm TV system & channel range CATV System X~Z+2, S1~S41 2-12 21-69 PAL-B/G TELETEXT WST TELETEXT Colour System: PAL-BG, NTSC (AV) Stereo/bilingual system: NICAM-BG, IGR-BG... - Page 35 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-TG3213-00...
