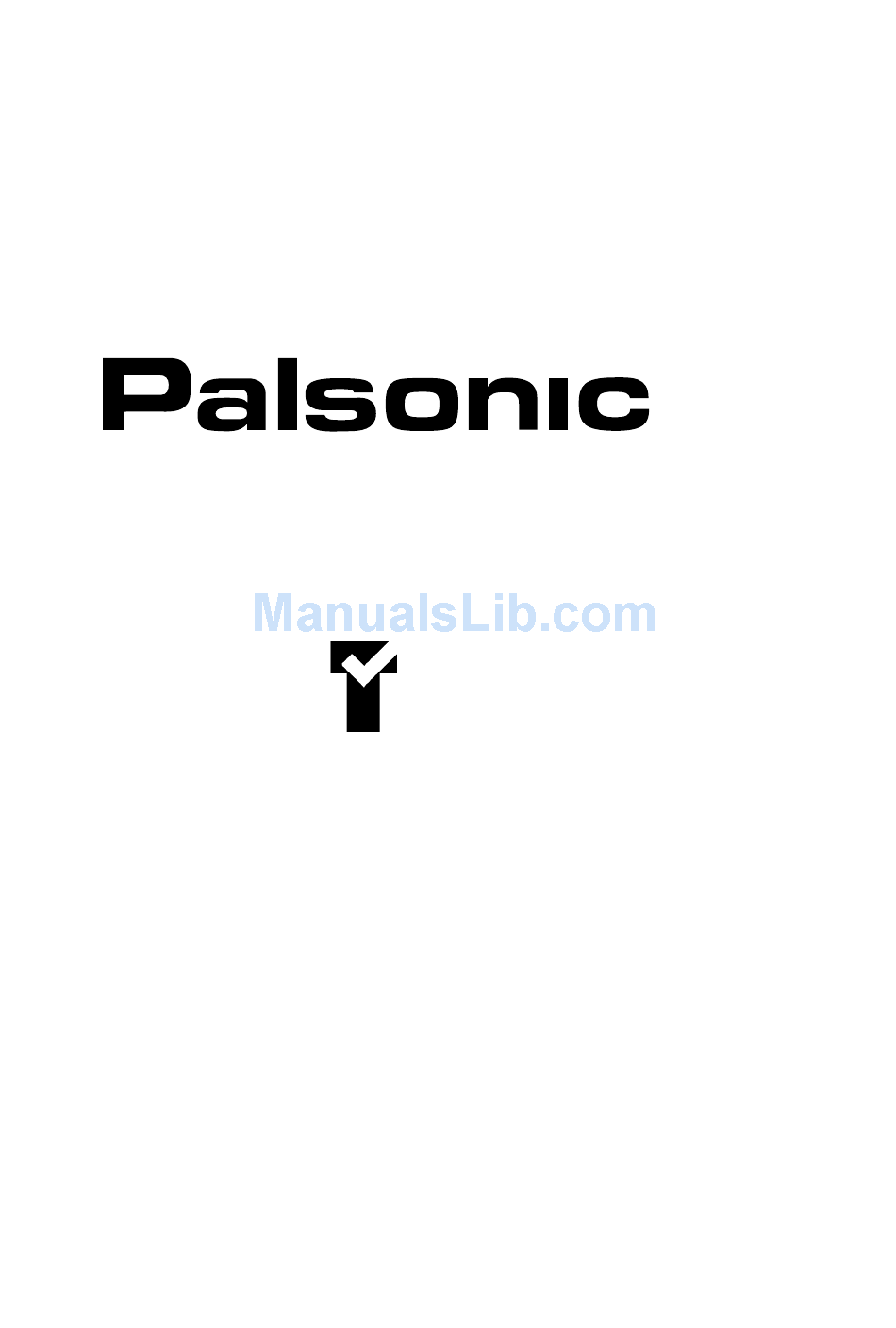

OWNER'S MANUAL
71CM CORDLESS REMOTE COLOUR TELEVISION
MODEL: 7128
Type Tested
Electrical
Safety
AS/NZS 3250 Lic 4163
Standards Australia
APP No: N15957
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL:(02)9313 7111
FAX:(02)9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA:1300 657 888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7128 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Palsonic 7128

Summary of Contents for Palsonic 7128

  • Page 1 71CM CORDLESS REMOTE COLOUR TELEVISION MODEL: 7128 Type Tested Electrical Safety AS/NZS 3250 Lic 4163 Standards Australia APP No: N15957 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL:(02)9313 7111 FAX:(02)9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE...

  • Page 2: Table Of Contents

    Congratulations on your purchase of this Palsonic colour television receiver We recommend that you thoroughly read this manual before use to fully enjoy the many functions and excellent effects of this receiver. Retain is manual in an easily accessible location for future reference.

  • Page 3: Main Features

    Main features Hyperband Auto/manual search 100 preset channels TV system: PAL-BG, NTSC 3.58/4.43(AV) Full function remote control English on screen menu display No-signal blue background display and AUTO-POWER-OFF function Four picture mode settings Sound mute function Sleep timer AV IN/OUT, S-VHS operation function...

  • Page 4: Notes For Operation

    NOTES FOR OPERATION * Do not let the TV set be in standby condition for a long period of time. When it is not in use, please turn off the power supply and remove the power plug. When it is to be left for a prolonged period of time, it is recommended to disconnect the connection to the outdoor aerial, to avoid thunder strike.

  • Page 5: Installation And Appearance

    Installation and appearance Antenna connection To ensure a bright-coloured and clear picture, you should use an outdoor aerial or CATV cable. If the signals are strong enough, you may use an indoor aerial. Note: When you connect the outdoor aerial cable to the aerial terminal on the TV set, please turn off the power switch on the TV while connecting the antenna lead.

  • Page 6: Apperance

    Appearance Front view PUSH AV/TV VOLUME DOWN VOLUME UP Note: Functions of MENU, VOL controller. Back view OWER SWITCH MENU MENU CHANNEL UP CHANNEL DOWN , CH and AV/TV are also provided to remote...

  • Page 7: The Remote Controller

    Standby Channel direct select Sleep timer Picture mode selection *Sound system select * NOTE: this TV model's RF sound system is BG only. Therefore the SYS1/2 button on the remote controller is ineffective in sound system selection. Similarly in the Preset and Function menus the SYS item (sound system selection item) is ineffective.

  • Page 8: Operation

    Operation Turning the power on/off 1. Connect the power, push the main power switch, the red indicator is on, the set is in standby mode. 2. Push the button on the remote controller to turn on the set when the set is in standby, this time, the green indicator is on, on the upper right corner of the screen will display channel number, colour and sound system.

  • Page 9: Picture Menu

    1. PICTURE menu Making use of the PICTURE menu can adjust the picture effect according to your personal preference and it will be stored as picture memory mode automatically. Press the CH button to select the item (the selected item is highlighted in red). Press the button to adjust it.

  • Page 10: Preset Menu

    2. PRESET menu Making use of the PRESET menu can fulfil the function of auto-search, search. manual search , channel and band selection. AFT and skip on/off. Press CH button to select the item. (the selected item is highlighted in red). Press the MENU button to exit to the main menu.
  • Page 11 5) SYS ( sound system ) This item is used to select sound system. Since this TV model’s RF sound system is B/G only, this item gets into ineffectiveness in sound system selection. 6) Auto - search (AUTO) Press CH button to highlight AUTO.

  • Page 12: Function Menu

    3. FUNCTION menu Making use of the FUNCTION menu can select BLUE ON/OFF and current channel’s colour and sound system. Press CH button to select item (the selected item is highlighted). Press MENU button to exit to the main menu. 1) STD (colour system) selection.

  • Page 13: Picture And Volume Adjustment

    2. Using CH button Press CH button, the channel number will be increased or decreased progressively. 3. Making use of button Press button to swap the currently viewed channel with the previous channel. Picture and volume adjustment 1. Picture adjustment Press PIC button repeatedly, on-screen display will change in the sequence below BRIGHTNESS BRIGHTNESS...

  • Page 14: Picture Mode Selection

    2. Volume adjustment You can press the VOL button to adjust the volume, and the green bar will move rightward or leftward, the volume output range is 0-63. VOLUME llllll... You can press the button to mute the sound. Press the The sound is restored to normal.

  • Page 15: Other Functions

    Other functions 1. Retain on-screen display Press the button and the upper right corner will display the current channel number and TV system. After 4 seconds the display on the screen will disappear. AUTO Press SYS 1 In VIDEO mode, it will only display VIDEO l (or VIDEO 2) and the colour system. 2.
  • Page 16 the screen displays AV1 and colour system; Press the button again and the set will be switched to AV2, the screen displays AV2 and colour system. Press the button once more, the set will be switched to TV mode and the screen displays current TV channel. AUTO Press AV Press AV...

  • Page 17: External Equipment Connections

    External equipment connection This set is incorporated with Audio & Video input and output terminals which allows direct connection to external equipments (such as VCR, Video DISC, VCD, Satellite Receiver etc.) for playing back and recording the programs. 1. Video playback If your video equipment has a S-VHS output terminal, connect it to the S-VHS input terminal (special S-VIDEO type) of the set and connect audio line to AV2 AUDIO IN terminal.
  • Page 18 2. Recording 2.1 According to the following figure connect the TV set to the VCR. (Y) YELLOW (VIDEO) (W) WHITE (AUDIO, L/MONO) (R) (AUDIO, R) 2.2 When recording, set the TV on the desired channel, the program recorded is the program displayed on the screen.

  • Page 19: Trouble Shooting

    Troubleshooting Guide Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. Symptoms No power, red indicator is not lit up Poor Colour, poor tint Spots appear on the screen Stripes appear on the screen Double images or "ghosts"...
  • Page 20 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL:(02)9313 7111 FAX:(02)9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-29A03-00...
