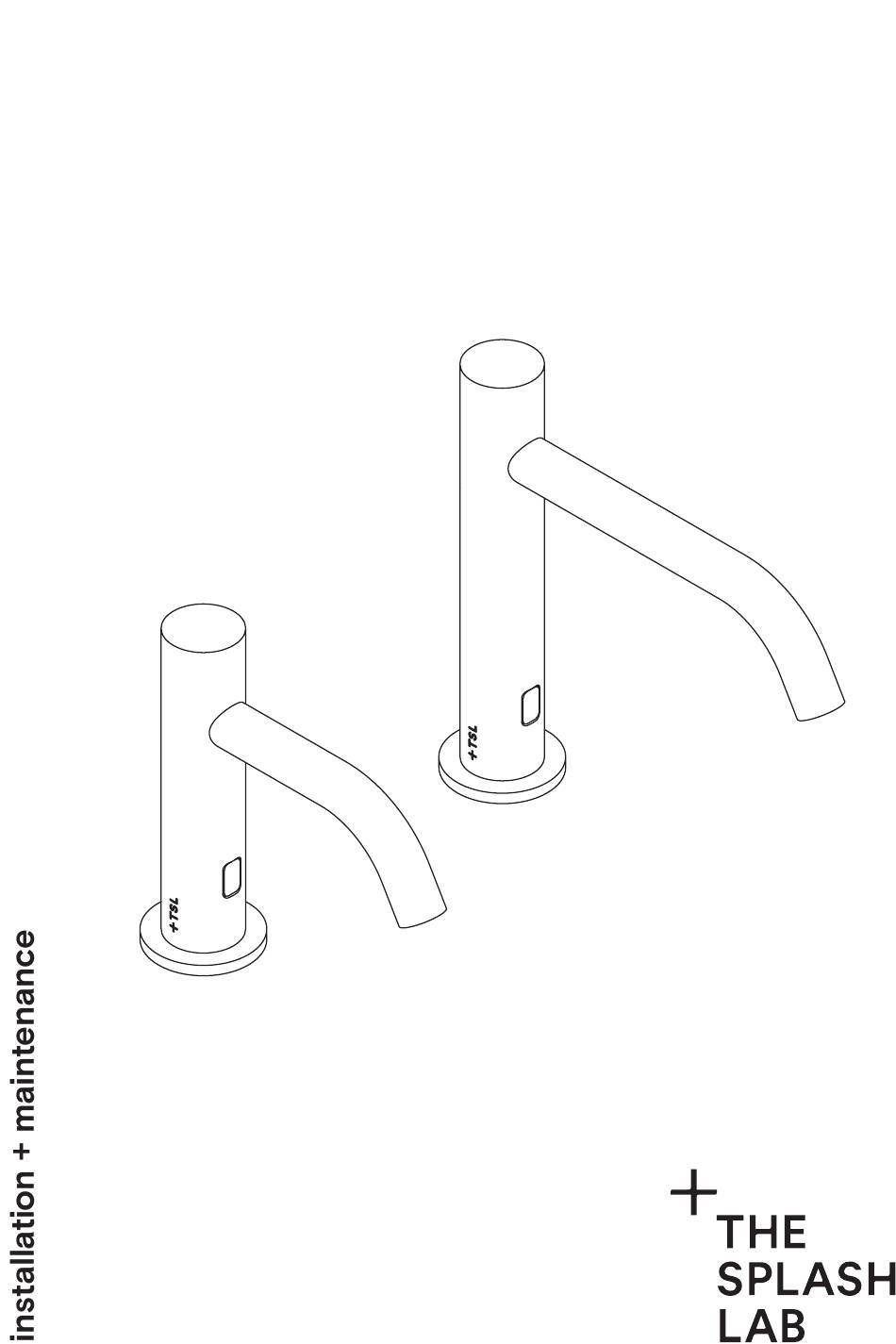

- Page 1 TSL.960 / TSL.990 deck mounted sensor faucet...
- Page 2 Safety + warnings Box contents Diagram Technical data Before you install Technical drawing How to install Commissioning + operation Troubleshooting Cleaning Maintenance Warranty Back Cover Contact details TSL.960 / TSL.990 MANUAL...
- Page 3 (see back page for more details). Ensure plumbing is installed correctly before activating water supply. All plumbing is to be installed in accordance with applicable codes and regulations. For more information contact: Tel: +1 (310) 410 5008 Email: info.usa@thesplashlab.com TSL.960 / TSL.990 MANUAL...
-
Page 4: Box Contents
Inline filter / strainer Solenoid valve Mains power suply unit Battery (must be specified separately) Battery holder (must be specified separately) Backnut Base O-ring Anti-rotation plate Aerator - 1.89lpm - Spray pattern Solenoid connector cable Aerator key TSL.960 / TSL.990 MANUAL... - Page 5 Faucet assembly Anti-rotation plate Backnut Solenoid valve Inline filter / strainer Solenoid connector cable Mains power supply unit Battery holder (not included) TSL.960 / TSL.990 MANUAL...
-
Page 6: Technical Data
Overview The TSL.960 and 990 are stainless steel, deck-mounted sensor faucets, available in a variety of colored finishes, with a sleek and minimalist design. Codes Power Finishes TSL.990.CS Mains Brushed Stainless Steel Mains TSL.990.CP Brushed Copper TSL.990.BK Mains... - Page 7 International Residential Code (IRC) 2021, 2018, 2015, 2012 and 2009 Uniform Plumbing Code (UPC) 2021, 2018, 2015, 2012 and 2009 Uniform Plumbing Code (UPC) 2021, 2018, 2015, 2012 and 2009 LEED.v4– Compliant for assessment for Water Saving and Efficiency TSL.960 / TSL.990 MANUAL...
-
Page 8: Before You Install
Caution The TSL.960 / TSL.990 parts must be put together correctly before installation. All parts must be installed correctly before powering up the system. Access Requirements It is critical all components which require fixing behind the wall are easily accessible at all times during installation and routine maintenance. -
Page 9: Technical Drawing
POWER SUPPLY POWER SUPPLY SOLENOID VALVE 7- 7/8” LEAD LENGTH 27- 9/16”FLEXIBLE HOSE 15- 3/4” LEAD LENGTH 200mm LEAD LENGTH 700MM FLEXIBLE HOSE 400mm LEAD LENGTH 400mm LEAD LE POWER SUPPLY SOLENOID VALVE POWER SUPPLY SOLENOID VALVE TSL.960 / TSL.990 MANUAL... - Page 10 POWER SUPPLY POWER SUPPLY SOLENOID VALVE 27- 9/16” FLEXIBLE HOSE 15- 3/4” LEAD LENGTH 7- 7/8” LENGTH 200mm LEAD LENGTH 700MM FLEXIBLE HOSE 400mm LEAD LENGTH 400mm LEAD LE POWER SUPPLY SOLENOID VALVE POWER SUPPLY SOLENOID VALVE TSL.960 / TSL.990 MANUAL...
-
Page 11: How To Install
Drill a 1 3/8" diameter hole in the for installation. countertop. Insert the faucet through hole in basin Slide the anti-rotation plate and fixing or countertop. nut over flexi hose and sensor cable and onto mounting shank. TSL.960 / TSL.990 MANUAL... - Page 12 Tighten using a provided. spanner. Position the power supply to the Connect the power supply cable to the underside of the unit. Before fixing sensor cable. into place ensure cables can reach connector positions. TSL.960 / TSL.990 MANUAL...
- Page 13 Connect the solenoid cable connector to Fit the flexible hose nut onto the solenoid the sensor connector. adapter TSL.960 / TSL.990 MANUAL...
- Page 14 WARNING: Ensure all connections are fully tightened to ensure full seal of the faucet. The product is now ready to be wired into the spur and tested and commissioned accordingly. TSL.960 / TSL.990 MANUAL...
-
Page 15: Operation
The user is to activate the faucet by placing their hands within the range of the infra- red sensor, to cause the solenoid valve to open for a preset time. The valve will close a set time after the user’s hands have been removed from the detection range. TSL.960 / TSL.990 MANUAL... -
Page 16: Troubleshooting
Aerator is blocked with Remove aerator and clean Water flow reduced scale or debris. or replace. Debris or scale in solenoid Remove solenoid and valve. clean and replace valve. TSL.960 / TSL.990 MANUAL... - Page 17 Use a soft cloth or sponge with a mild solution of soapy water as part of the regular washroom janitorial routine. Do not use abrasive or cream cleaners as these will damage the surface finish. If further information is required, contact The Splash Lab technical team for more detailed stainless steel care guidelines. TSL.960 / TSL.990 MANUAL...
-
Page 18: Maintenance
Reassemble the parts as shown. Restore the incoming water supply checking there are no water leaks. Reconnect the solenoid cable to the power supply. Note: the directional flow of water is shown on the solenoid housing with an arrow. TSL.960 / TSL.990 MANUAL... -
Page 19: Warranty
Sensor faucets 1 limited warranty + unlimited digital support If a defect is found in normal use, The Splash Lab will, at their discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning will void the warranty. - Page 20 contact General information info.usa@thesplashlab.com +1 (310) 410 5008 Technical support info.usa@thesplashlab.com For further contact information visit: www.thesplashlab.com/usa...
