Parts List; Exploded View - BENDIX TU-FLO 750 COMPRESSOR Manual

1
CYLINDER
HEAD
15
16
17
18
19
CRANKCASE
32

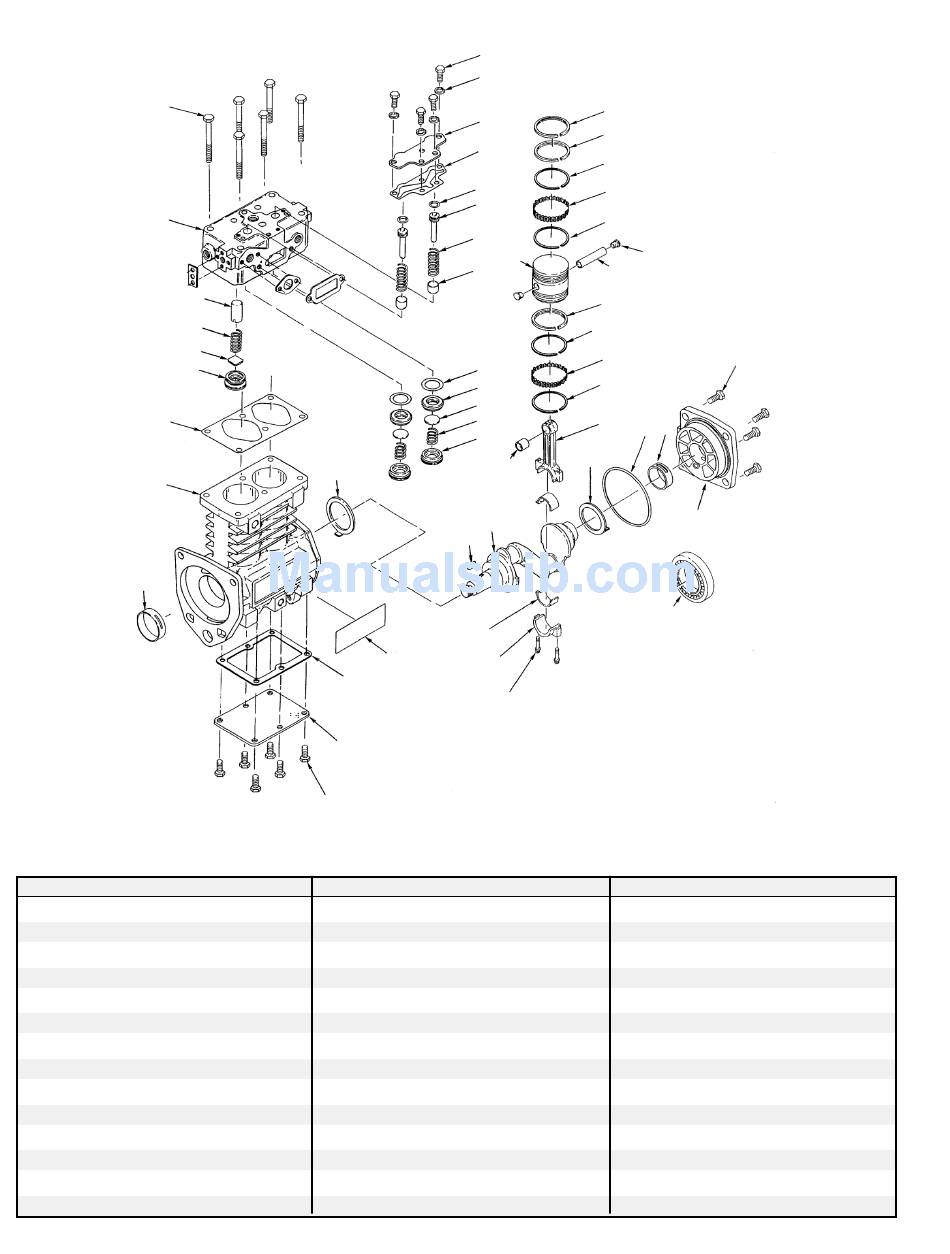

FIGURE 11 - EXPLODED VIEW
ITEM QTY DESCRIPTION
1 6 Cylinder Head Cap Screws
2 4 Unloader Plate Cap Screws
3 4 Unloader Plate Lock Washers
4 1 Unloader Plate
5 1 Unloader Plate Gasket
6 2 O-ring
7 2 Unloader
8 2 Spring
9 2 Unloader Bushing
10 2 Gasket
11 2 Inlet Valve Seat
12 2 Inlet Valve
13 2 Inlet Valve Spring
14 2 Inlet Valve Stop
10
31
30
31
NAMEPLATE
20
21
22
ITEM QTY DESCRIPTION
15 2 Discharge Valve Stop
16 2 Discharge Valve Spring
17 2 Discharge Valve
18 2 Discharge Valve Stop
19 1 Cylinder Head Gasket
20 1 Base Gasket
21 1 Base Plate
22 6 Base Plate Cap Screws
23 6 Standard Piston Rings
24 8 Oil Ring
25 4 Expander Ring
26 2 Piston
27 2 Wrist Pin
28 4 Wrist Pin Button
2
3
23
4
23
5
24
6 25
7
24
8
28
26
9
27
23
24
25
10
24
11
12
13
37
33 32
14
36
29
BALL BEARING
38
(MACK EXTENDED
FLANGE)
39
40
ITEM
29
30
31
32
33
34
35
36
37
38
39
40
35
34
32
QTY DESCRIPTION
1 Crankshaft
1 Crankshaft Key
2 Thrust Washer
2 Sleeve (or Ball) Bearing
1 End Cover Seal
1 End Cover
4 End Cover Cap Screws
2 Wrist Pin Bushing
2 Connecting Rod
2 Conn. Rod Inserts (Sets)
2 Connecting Rod Caps
4 Connecting Rod Bolts
