Order No. MD0401005C3

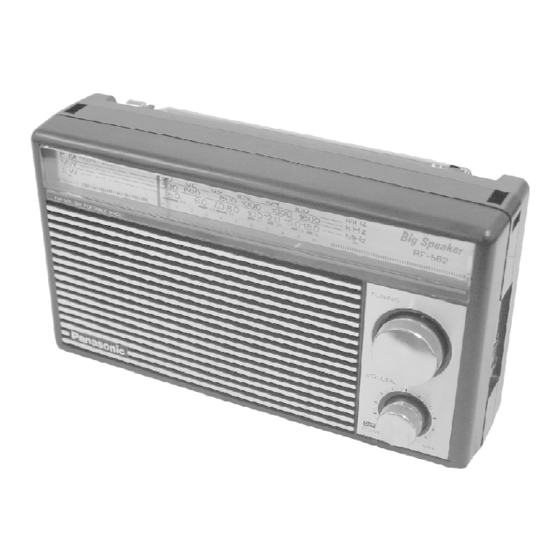

FM-AM PORTABLE RADIO
RF-562DGU / RF-562DGC
Colour
(K) ... Black
SPECIFICATIONS
Specification
RADIO
Frequency Range
FM
88-108 MHz
MW
530-1605 kHz
SW
4.75-18 MHz
Battery; 3 V, two UM-1 (R20/LR20)
Power Requirement
batteries
Speaker
8 cm
800 mW (RMS max)
Power output
Jack
Output
Earphone
Dimensions (W x H x
210 x 120 x 65 mm
D)
Weight
650 g (without batteries)
Notes:
1. Design and specifications are subject to change without notice.
2004 Panasonic AVC Networks Singapore Pte. Ltd. All rights
1
Advertisement
Related Manuals for Panasonic RF-562DGC
Summarization of Contents
1. Operating Instructions
1.1. Location of control
Details the location and function of the radio's various controls.
2. Disassembly and Main Component Replacement Procedures and Operational Check
2.1. Checking Procedure for Main P.C.B.
Provides steps for checking the operation of the main printed circuit board.
7. Measurements and Adjustments
7.1. Tuner Section
Contains alignment procedures for the radio's tuner section.
9. Parts Location and Replacement Parts List
9.1. Cabinet
Details the parts list and location for the cabinet assembly.
9.2. Component Part list
Lists all components used in the device with their part numbers.
9.3. Packing Materials & Accessories Parts List
Lists the packing materials and accessories included with the product.
