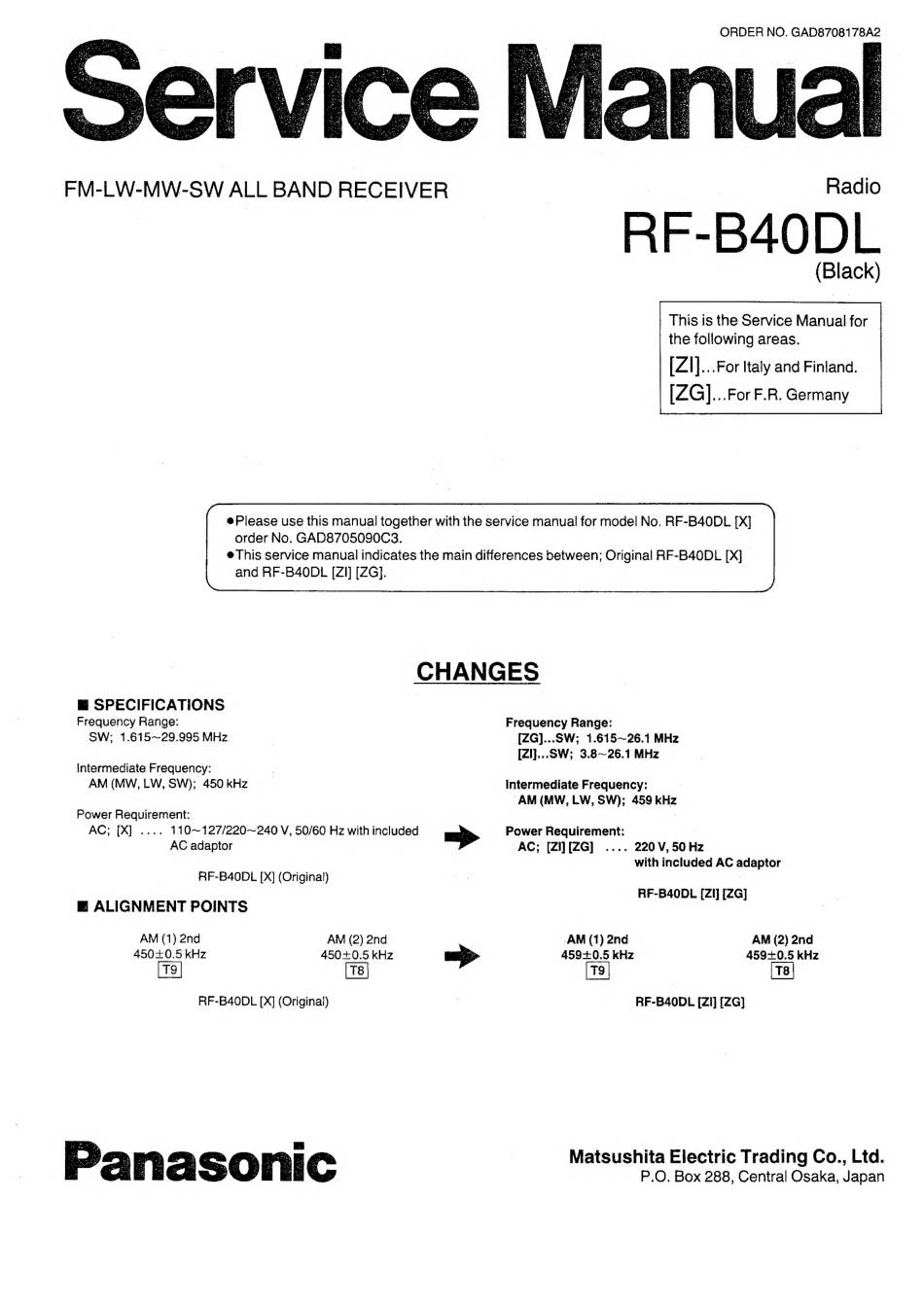

Panasonic RF-B40DL Service Manual

ORDER NO. GAD8708178A2
FM-LW-MW-SW ALL BAND RECEIVER Radio
RF-B40DL
(Black)
This is the Service Manual for —
the following areas.
[ZI]...For Italy and Finland.
[ZG]...For F.R. Germany
@Please use this manual together with the service manual for model No. RF-B40DL [X]
order No. GAD8705080C3.
e This service manual indicates the main differences between; Original RF-B40DL [X]
and RF-B40DL [ZI] [ZG].
m SPECIFICATIONS |
Frequency Range: Frequency Range:
SW; 1.615~29.995 MHz | [ZG]...SW; 1.615~26.1 MHz
[Zl]...SW; 3.8~26.1 MHz
intermediate Frequency:
AM (MW, LW, SW); 450 kHz | Intermediate Frequency: :
AM (MW, LW, SW); 459 kHz
Power Requirement: 3
AC; [X] .... 110~127/220~240 V, 50/60 Hz with included => Power dsl aia
AC adaptor AC; [ZI] [ZG] .... 220V,50Hz
with included AC adaptor
RF-B40DL [X] (Original) |
RF-B40DL [ZI] [ZG]
— ALIGNMENT POINTS
AM (1) 2nd AM (2) 2nd AM (1) 2nd AM (2) 2nd
450+0.5 kHz 450+0.5 kHz me 459+0.5 kHz 459+0.5 kHz
RF-B40DL [X] (Original) | - RF-BAODL [ZI] [ZG]
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka, Japan
