OPERATION MANUAL

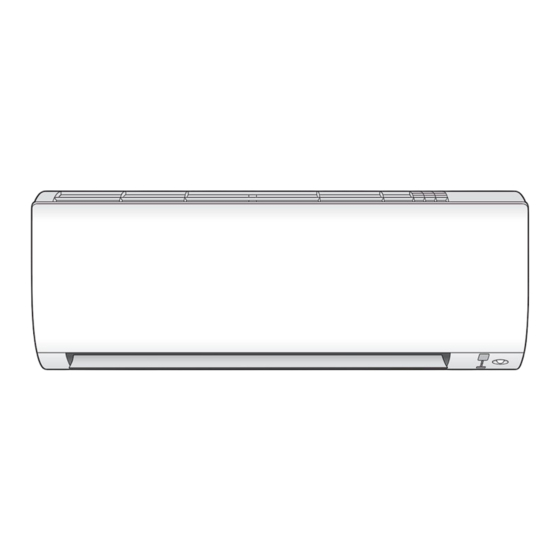

DAIKIN ROOM AIR CONDITIONER
MODELS
FTKM25XVMG
FTKM35XVMG
FTKM50XVMG
FTKM60XVMG
FTKM71XVMG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTKM60XVMG and is the answer not in the manual?

Questions and answers

Related Manuals for Daikin FTKM60XVMG

Summary of Contents for Daikin FTKM60XVMG

  • Page 1 OPERATION MANUAL DAIKIN ROOM AIR CONDITIONER MODELS FTKM25XVMG FTKM35XVMG FTKM50XVMG FTKM60XVMG FTKM71XVMG...
  • Page 2 Features Enhanced comfort and energy Enhanced comfort and energy savings savings INTELLIGENT EYE The INTELLIGENT EYE sensor detects human movement in a room. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. Page 17 WEEKLY TIMER Up to 4 timer settings can be saved for each day of the week...

  • Page 3: Table Of Contents

    Contents Read Before Operation Safety Precautions .......... Names of Parts ..........Preparation Before Operation ...... Basic Operation COOL · DRY · FAN Operation .... Adjusting the Airflow Rate ....Adjusting the Airflow Direction ... Useful Functions INTELLIGENT EYE Operation ... COMFORT AIRFLOW Operation ..

  • Page 4: Read Before Operation

    Read Before Operation Safety Precautions Read the precautions in this manual carefully This appliance is filled with R32. before operating the unit. • Keep this manual where the user can easily find it. • The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety.
  • Page 5 Read Before Operation • Do not sit on the outdoor unit, put things on the unit, or pull the unit. Doing so may cause accidents, such as falling or toppling down, thus resulting in injury, product malfunctioning, or product damage. •...

  • Page 6: Names Of Parts

    Read Before Operation Names of Parts For 25/35 class Indoor Unit Front panel Air inlet INTELLIGENT EYE sensor Air outlet Flap (horizontal blade) • Detects the movements of people and automatically switches Page 16 between normal operation and energy saving operation. Louvres (vertical blades) Model name Page 17,18...
  • Page 7 Read Before Operation For 25/35 class „ Open the front panel Wireless LAN connecting adapter (BRP072C42) Air quality filter (enzyme blue with PM 2.5) Air filter Outdoor Unit Air inlet Outdoor temperature sensor (back) (back and side) Earth terminal (inside) Refrigerant pipes and inter-unit wire Air outlet...
  • Page 8 Read Before Operation Names of Parts For 50/60/71 class Indoor Unit Front panel Air inlet INTELLIGENT EYE sensor Air outlet Flaps (horizontal blades) • Detects the movements of people and automatically switches Page 16 Model name between normal operation and energy saving operation.
  • Page 9 Read Before Operation For 50/60/71 class „ Open the front panel Wireless LAN connecting adapter (BRP072C42) Air filter Air quality filter (enzyme blue with PM 2.5) Outdoor Unit Outdoor temperature Air inlet sensor (back) (back and side) Refrigerant pipes and inter-unit wire Earth terminal (inside) Air outlet...
  • Page 10 „ Internet line and communicating device (Modem/router or similar device) „ Wireless LAN access point „ Application name: [DAIKIN Mobile Controller] (free) For details on the installation method for the DAIKIN Mobile Controller application, please see Page 31 NOTE Notes on the Wireless LAN connecting adapter •...
  • Page 11 Read Before Operation Remote Controller Signal transmitter Display (LCD) • Displays the current settings. Receiver (In this illustration, each section is shown with all its displays on for the • To use the remote controller, aim the purpose of explanation.) transmitter at the indoor unit.
  • Page 12 Read Before Operation Names of Parts „ Open the front cover MODE selector button • Selects the operation mode. (DRY/COOL/FAN) Page 14 ECONO/QUIET button • ECONO/OUTDOOR UNIT QUIET operation. Page 21 SENSOR button SWING button • INTELLIGENT EYE operation. Page 17 •...

  • Page 13: Preparation Before Operation

    Read Before Operation Preparation Before Operation CAUTION Incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure. Please observe the following precautions and use safely. • If the alkaline solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately flush the eyes with tap water and seek the attention of a medical professional.
  • Page 14 Read Before Operation Preparation Before Operation „ To set the clock Press “   ” appears on the LCD. “   ” and “   ” blink. Press to set the current day of the week. Press “   ” blinks. Press to set the clock to the present time. •...

  • Page 15: Basic Operation

    Basic Operation COOL · DRY · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. „ To start Press and select an operation mode. •...

  • Page 16: Adjusting The Airflow Rate

    Basic Operation Adjusting the Airflow Rate You can adjust the airflow rate to increase your comfort. „ To adjust the airflow rate setting Press • Each pressing of the button changes the airflow rate setting in sequence. AUTO Indoor unit quiet Airflow rate 1-5 (Low to High) •...

  • Page 17: Adjusting The Airflow Direction

    Basic Operation Adjusting the Airflow Direction You can adjust the airflow direction to increase your comfort. ATTENTION • Always use a remote controller to adjust the angles of the flap and louvres. − If you attempt to move the flap and louvres forcibly by hand when they are swinging, the mechanism may be damaged.

  • Page 18: Useful Functions

    Useful Functions INTELLIGENT EYE Operation The INTELLIGENT EYE sensor detects human movement. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. CAUTION • Do not place large objects near the INTELLIGENT EYE sensor. Also keep heating units and humidifiers outside the sensor’s detection area.
  • Page 19 Useful Functions INTELLIGENT EYE operation is useful for energy saving „ People are detected in the sensing area. „ No people are detected in the sensing area. The air conditioner is in normal operation while the The air conditioner will switch to energy-saving mode after sensor is detecting human movement.

  • Page 20: Comfort Airflow Operation

    Useful Functions COMFORT AIRFLOW Operation The airflow direction is upward while in COOL and DRY operation. This function prevents cold air from blowing directly on the occupants in the room. „ To start Press • “   ” appears on the LCD. COOL and DRY operation Flap direction Goes up...

  • Page 21: Powerful Operation

    Useful Functions POWERFUL Operation POWERFUL operation quickly maximises the cooling effect in any operation mode. In this mode, the air conditioner operates at maximum capacity. „ To start Press during operation. • “   ” appears on the LCD. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation.

  • Page 22: Econo / Outdoor Unit Quiet Operation

    Useful Functions ECONO / OUTDOOR UNIT QUIET Operation ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit. OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit.

  • Page 23: Timer Operation

    TIMER Operation ON/OFF TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use the ON TIMER and OFF TIMER together. [ON TIMER with a 24 hour clock display (24 HOUR ON/OFF TIMER)] „...
  • Page 24 TIMER Operation ON/OFF TIMER Operation [OFF TIMER with a 24 hour clock display (24 HOUR ON/OFF TIMER)] „ To set • Check that the clock is correct. If not, set the clock to the present time. Page 13 • To set the OFF TIMER in an hours remaining display. Page 24 Press “ ...
  • Page 25 TIMER Operation ON/OFF TIMER with an hours remaining display (COUNT UP-DOWN ON/OFF TIMER) • Check that the clock is correct. If not, set the clock to the present time. Page 13 Press and hold for about 5 seconds, when signal indicator ( ) blinks, release your finger from the button.

  • Page 26: Weekly Timer Operation

    TIMER Operation WEEKLY TIMER Operation Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family’s life style. „ Setting example of the WEEKLY TIMER The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend. [Monday] Make timer settings for programmes 1-4.
  • Page 27 TIMER Operation „ To use WEEKLY TIMER operation Setting mode • Make sure the day of the week and time are set. If not, set the day of the week and time. Page 13 Programme 1 Programme 2 Programme 3 Programme 4 25.0°C 27.0°C...
  • Page 28 TIMER Operation WEEKLY TIMER Operation Press to select the desired time. • The time can be set between 0:00 and 23:50 in 10-minute intervals. • To return to the ON/OFF TIMER mode setting, press • Proceed to STEP  when setting the OFF TIMER. Press •...
  • Page 29 TIMER Operation Copy mode • A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied. Programme 1 Programme 2 Programme 3 Programme 4 [Monday] 25.0°C 27.0°C 6:00...
  • Page 30 TIMER Operation WEEKLY TIMER Operation „ Confirming a reservation • The reservation can be confirmed. Setting Displays Normal Confirmation Press • The day of the week and the reservation number of the current day will be displayed. Press to select the day of the week and the reservation number to be confirmed.
  • Page 31 TIMER Operation „ To delete a reservation An individual reservation Press • The day of the week and the reservation number will be displayed. Press to select the day of the week and the reservation number to be deleted. Press •...

  • Page 32: Mobile Controller

    • Before downloading the application software for installing, please read ‘‘Configuration” Page 9 For Android Phones 1) Open the [Google Play]. 2) Search using the application name: [DAIKIN Mobile Controller]. 3) Follow the directions on the screen to install. For iOS Phones 1) Open the [App Store].

  • Page 33: Care

    Care Care and Cleaning CAUTION • Before cleaning, be sure to stop the operation and turn off the circuit breaker. • Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury. „...
  • Page 34 Care Care and Cleaning * Appearance of the indoor unit may differ from some models. „ Air filter Open the front panel. Wash the air filters with water or clean them with • Hold the front panel by the sides and open it. vacuum cleaner.
  • Page 35 Care „ Filter (small) * For the applicable filter type, please refer to Page 32 Attaching Clean or replace. [Cleaning] Open the front panel and Deodorizing filter (enzyme blue) pull out the air filters. Page 33 : Blue / titanium apatite Insert the filter.
  • Page 36 Care Care and Cleaning „ Prior to a long period of non-use Operate the FAN mode for several hours on a fine day to dry out the inside. 1) Press and select “   ” . 2) Press and start the operation. After operation stops, turn off the circuit breaker for the room air conditioner.

  • Page 37: When The Need Arises

    When the Need Arises Indoor unit The flap does not start swinging immediately. • The air conditioner is adjusting the position of the flap. The flap will start moving soon. Operation does not start soon. Different sounds are heard. „ When the unit is turned on again soon after being turned off.

  • Page 38: Troubleshooting

    When the Need Arises Troubleshooting Air conditioner Before making an inquiry or a request for repair, please check the following. If the problem persists, consult your dealer. Not a problem Check This case is not a problem. Please check again before requesting repairs.
  • Page 39 When the Need Arises Air conditioner Mist comes out Case Description / what to check • This happens when the air in the room is cooled into mist by the cold airflow during COOL Mist comes out of the indoor unit. or other operation.
  • Page 40 Wireless LAN network as Wireless LAN connecting adapter. • Refer to the FAQ on: None of the above work. https://www.daikinthai.com/product/dmobile For instructions about how to operate the DAIKIN Mobile Controller application, please refer to the operation manual at https://www.daikinthai.com/product/dmobile „ Call your dealer immediately WARNING When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker.
  • Page 41 When the Need Arises „ Fault diagnosis by remote controller • In case the air conditioner is malfunctioning, you can check the error code via the remote controller before consulting with service personnel and informing them of the malfunction code. When is held down for about 5 seconds, “...
  • Page 42 MEMO...
  • Page 44 Quick Reference Complies with IMDA Standards DA107930 The two-dimensional bar code is a manufacturing code. 3P620957-16R M22N119 (2212) HT...
