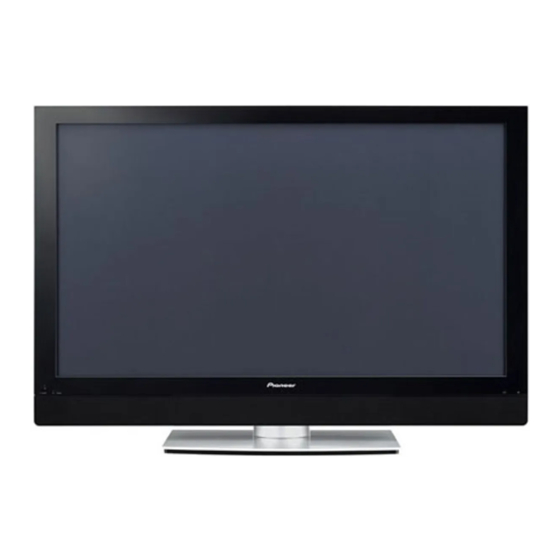

Pioneer PDP- 507XG Service Manual

PLASMA TELEVISION
PDP-507XC
PDP-507XG
PDP-507XDA
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
PDP-507XC WA5
PDP- 507XG DLFR
PDP- 507XDA YP
¶ This service manual should be used together with the following manual(s):
Model No.
PDP-507XD/WYVIXK5
¶ For PANEL FACILITIES, refer to the operating instructions.
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
Type Power Requirement
AC 220V to 240 V
AC 110V to 240 V
AC 240 V
Order No.
ARP3396 EXPLODE VIEWS, BLOCK DIAGRAM, PCB PARTS LIST etc.
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
ARP3431
Remarks
Remarks
T – ZZV OCT. 2006 Printed in Japan
ORDER NO.
