Description: The GEM-SMK-1 is a high-quality photoelec-
tric smoke alarm with built-in supervised digitally-coded radio
transmitter. It is compatible with Napco's GEM-RECV Series
supervised security receivers that monitor alarms, restores,
low battery and status.
During normal operation, the LED on the GEM-SMK-1
flashes once every 30 seconds. As soon as smoke is de-
tected, the GEM-SMK-1 sounds a local alarm and the trans-

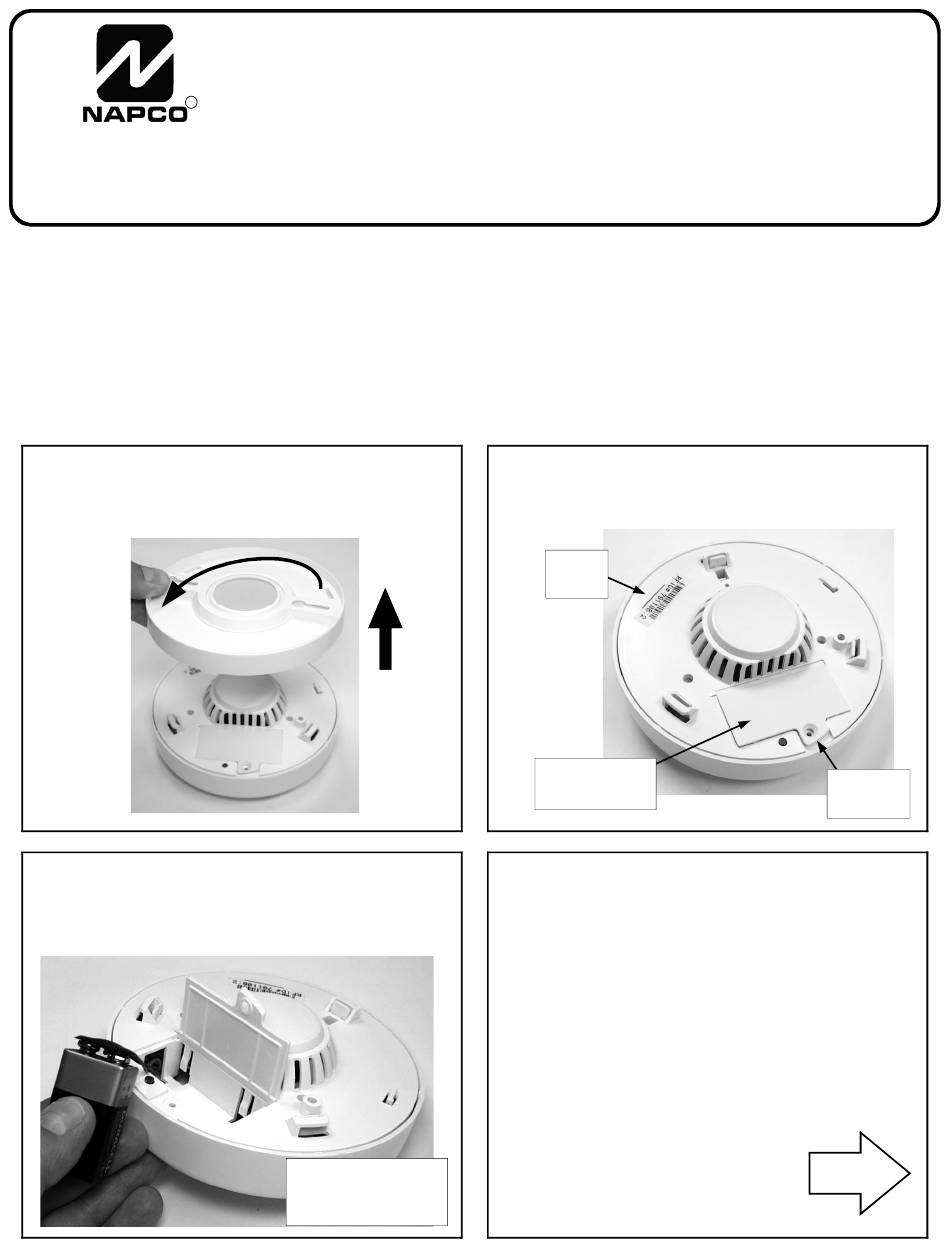

Step 1. Remove the mounting plate. Remove the
GEM-SMK-1 mounting plate by turning the
plate counter-clockwise and pulling it up.
TWIST
MOUNTING
PLATE TO
UNLOCK
Step 3. Install battery. Connect one 9-volt Duracell
MN-1604 alkaline battery and place it into the
battery holding compartment.
GEM-SMK-1
DIGITAL SMOKE ALARM
INSTALLATION INSTRUCTIONS
LIFT TO
REMOVE
MOUNTING
PLATE
CONNECT AND INSTALL
ONE 9-VOLT BATTERY
AS NOTED ABOVE
SUPERVISED
mitter sends an alarm signal to the supervised receiver. The
alarm signal is repeated every 10 seconds thereafter as long
as smoke is still present. A restore report is sent when the
smoke detection chamber clears. Supervisory status reports
are sent from the GEM-SMK-1 every hour.
Coding switches are not required or used in the GEM-SMK-1.
Each transmitter is assigned a unique identification code
number at the factory.
Step 2. Identify components.
SMK-1 to identify the component locations.
RF ID#
LABEL
BATTERY
COMPARTMENT
The smoke alarm and transmitter are powered by
one 9-volt alkaline battery (supplied) which can
power the unit for at least one year. If the battery
voltage drops below normal, a low-battery report
will be sent to the receiver with any status or
alarm transmission. If a low-battery condition is
indicated, replace battery.
NOTE: Temperature and humidity extremes may
reduce the life of the battery.
GEM-SMK-1 alarm is designed to prevent re-
mounting to the mounting plate unless a battery is
installed in the battery compartment.
WI1616 5/07
Examine the GEM-
LIFT HERE
TO OPEN
In addition, the
continued
1
