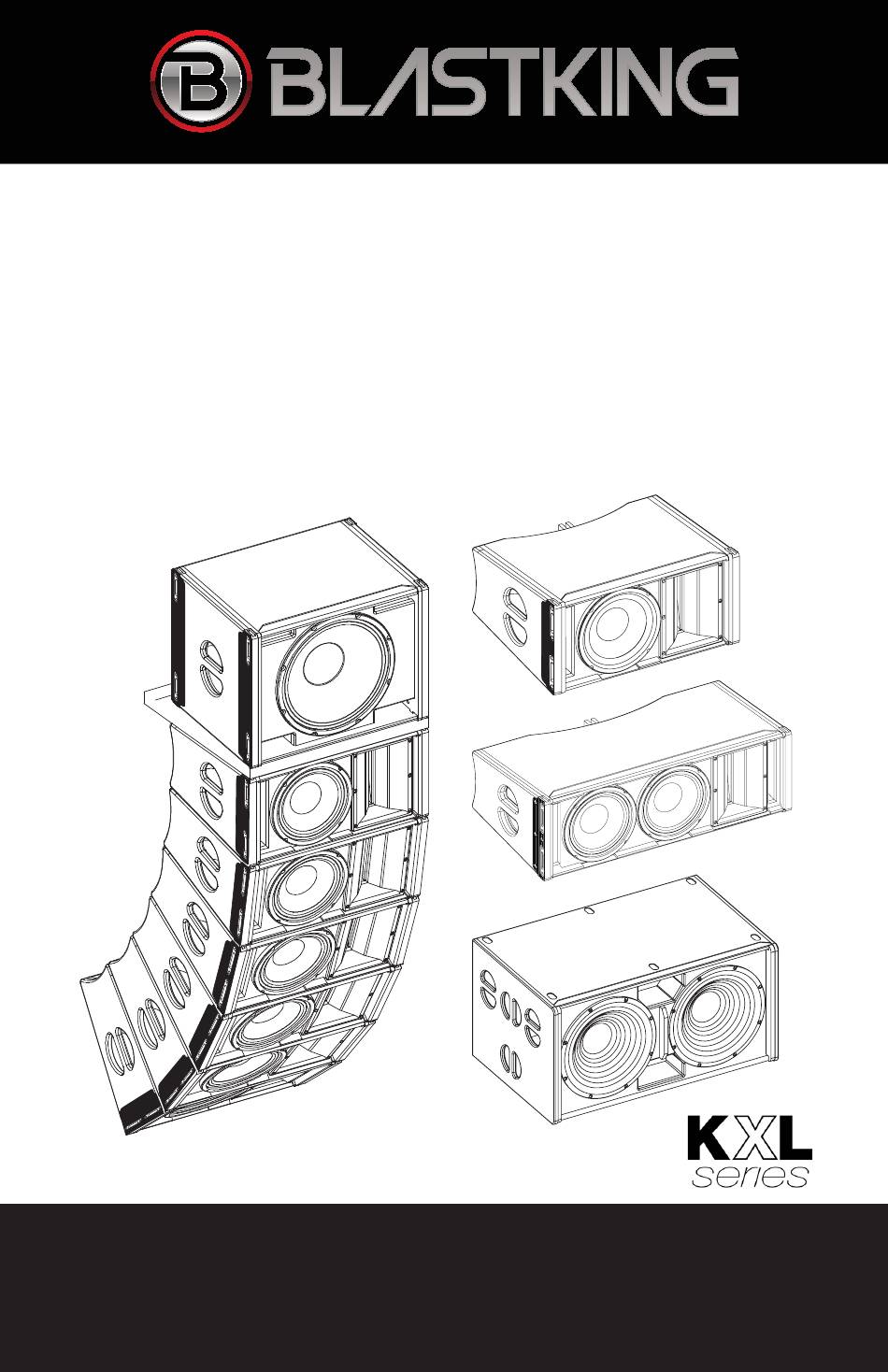

- Page 1 USER MANUAL LINE ARRAY SYSTEM KXL10 / KXL10A / KXL210A KXL15S / KXL15AS / KXL18AS / KXL218AS / KXL318AS blastking.com...
-
Page 2: Date Of Purchase
Purchased at Date of purchase All other BlastKing® products purchased in the USA are protected under the regular manufacturer’s one year warranty. This warranty is intended to protect customers from any and all manufacturer defects from one year of purchase. The product will be replaced or repaired at the manufacturer’s discretion upon receipt of the warranted unit along with a... - Page 3 11. The appliance coupler is the AC mains disconnect and should remain readily operable after installation. 12. Use only attachments/accessories specified by Blastking USA. 13. Use only with hardware, brackets, and components sold with the product or by Blastking USA. 14. Unplug the product during lightning storms or when unused for long periods of time.
-
Page 4: Installation
Introduction The Blastking KXL series is comprised of single and dual 10” line array modules featuring Blastking high performance transducers, providing crisp mid and low frequencies, and a 3” voice coil high frequency driver to round out the ideal sound performance. Complementing the line array are 15” and 18” high output flyable subwoofers and the exceptionally powerful dual 18”... - Page 5 KXL10A / KXL210A Rear Panel Features KXL10A 120V AC60Hz FUSE T4A/230V 1. High Frequency Setup HFC2: Use for two topside satellite speakers HFC1: Use for two middle satellite speakers. Flat line source: Use for two underside satellite speakers. Flat point source: Use for point sound source, one speaker individually.
- Page 6 Technical Information Model KXL10A KXL10 KXL210A Type: 10” Active Line Array 10” Passive Line Array Dual 10” Active Line Module Module Array Module Frequency Response (+-3 dB): 65Hz-20kHz 65Hz-18kHz Frequency Range (-10dB): 50Hz-18kHz Maximum SPL: 138dB 139dB Power Rating RMS:...
- Page 7 KXL15AS / KXL18AS Rear Panel Features 1. Sensitivity: Adjust the sensitivity 0 dB to 10 dB. 2. X-Over Control: Adjust the full range frequency limit of the sub from 70Hz (fully counter clockwise) to 120Hz (fully clockwise). 3. Power Indicator: Illuminates when the unit is connected to the main supply and switched on.
-
Page 8: Technical Information
Technical Information Model KXL15AS KXL18AS Type: 15” Active Line Array 15” Active Line Array Subwoofer Subwoofer Frequency Response (+-3 dB): 50Hz-100Hz Frequency Range (-10dB): 45Hz-100Hz Maximum SPL: 136dB Power Rating RMS: 1000 Watts Power Rating MAX: 1800 Watts LF Driver: 15”... - Page 9 Technical Information Model KXL15S Type: 15” Passive Line Array Subwoofer Frequency Response (+-3 dB): 50Hz-1kHz Frequency Range (-10dB): 45Hz-1kHz Maximum SPL: 136dB Power Rating RMS: 1000 Watts Power Rating MAX: 1800 Watts LF Driver: 15” Woofer, 4” VC Sensitivity:...
- Page 10 ~100-240V AC50/60Hz ~100-240V AC50/60Hz KXL218AS / KXL318AS ~100-240V AC50/60Hz ~100-240V AC50/60Hz Rear Panel Features ~100-240V AC50/60Hz ~100-240V AC50/60Hz 1. Sensitivity: Adjust the sensitivity 0 dB to 10 dB. 2. X-Over Control: Adjust the full range frequency limit of the sub from 70Hz (fully counter clockwise) to 120Hz (fully clockwise).
- Page 11 Technical Information Model KXL218AS KXL318AS Type: 2x18” Powered 3x18” Powered Hi-Performance Hi-Performance Subwoofer Subwoofer Frequency response (+-3 dB): 40Hz-100Hz Frequency range (-10dB): 35Hz-100Hz Maximum SPL: 131dB / 138dB (Peak) 132dB / 139dB (Peak) Power rating RMS: 2000 Watts 3000 Watts...
- Page 12 2980 NW 74th Ave. Miami, FL 33122 Phone: (305) 591-8930...
