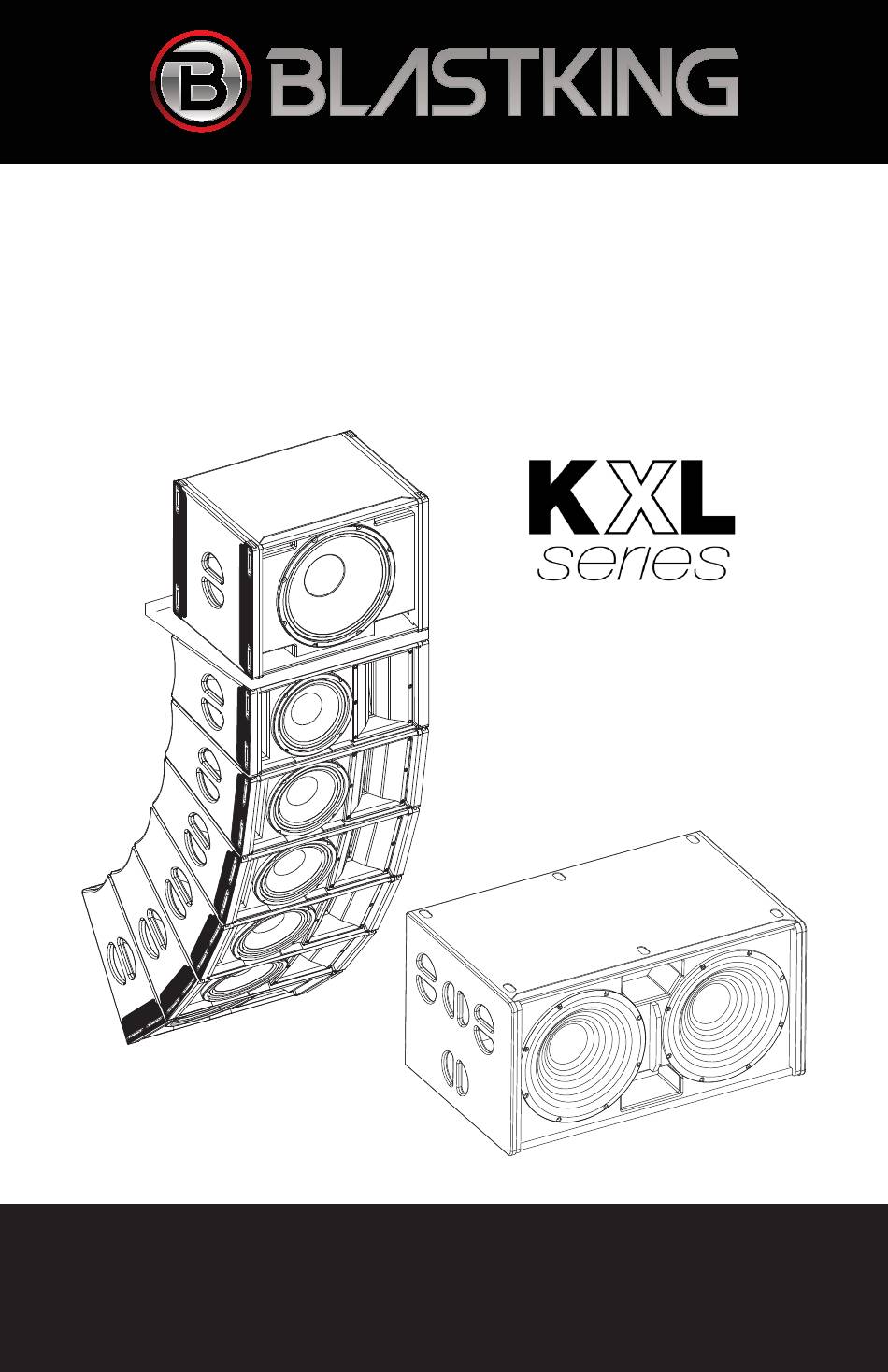

- Page 1 Owner’s Manual KXL10 / KXL10A / KXL15S / KXL15AS / KXL18AS KXL218AS / KXL318AS LINE ARRAY SYSTEM blastking.com...
-
Page 2: Date Of Purchase
Purchased at: Date of purchase: All other BlastKing® products purchased in the USA are protected under the regular manufacturer’s one year warranty. This warranty is intended to protect customers from any and all manufacturer defects from one year of purchase. The product will be replaced or repaired at the manufacturer’s discretion upon receipt of the warranted unit along with a... -
Page 3: Important Safety Precautions And Explanation Of Symbols
11. The appliance coupler is the AC mains disconnect and should remain readily operable after installation. 12. Use only attachments/accessories specified by Blastking, USA. 13. Use only with hardware, brackets, and components sold with the apparatus or by Blastking, USA. 14. Unplug the apparatus during lightning storms or when unused for long periods of time. -
Page 4: Installation
Introduction The BlastKing KXL line array and ground stacked subwoofers allow the user a wide range of applications. From permanent installations to rentals, KXL has it all. The KXL is designed for up to six of the KXL10A and one of the KXL15AS or KXL18AS, per side. The series is available in both active and passive configurations. -
Page 5: Rear Panel Features
KXL10A Rear panel features KXL10A 120V AC60Hz FUSE T4A/230V 1. High frequency setup HFC2: Use for two topside sat speakers HFC1: Use for two middle sat spakers. Flat line source: Use for two underside sat spakers. Flat point source: Use for point sound source, as to use one speaker individually. - Page 6 Technical Information Model KXL10A KXL10 Type: 10” Active Line Array 10” Passive Line Array Module Module Frequency response (+-3 dB): 65Hz-20KHz Frequency range (-10dB): 50Hz-18KHz Maximum SPL: 122dB / 138dB (Peak) Power rating RMS: 350 Watts Power rating MAX: 700 Watts Vertical Adjustment: 0°...
- Page 7 KXL15AS / KXL18AS Rear panel features 1. Sensitivity: Adjust the sensitivity 0 dB to 10 dB. 2. X-over control: Adjust the full range frequency limit of the sub from 70Hz (fully anti-clockwise) to 120Hz (fully clockwise). 3. Power indicator: Illuminates when the unit is connection to the main supplys and switched on.
-
Page 8: Technical Information
Technical Information Model KXL15AS KXL18AS Type: 15” Active Line Array 15” Active Line Array Subwoofer Subwoofer Frequency response (+-3 dB): 50Hz-100Hz Frequency range (-10dB): 45Hz-100Hz Maximum SPL: 129dB / 136dB (Peak) Power rating RMS: 1000 Watts Power rating MAX: 1800 Watts LF Driver: 15”... - Page 9 Technical Information Model KXL15S Type: 15” Passive Line Array Subwoofer Frequency response (+-3 dB): 50Hz-1KHz Frequency range (-10dB): 45Hz-1KHz Maximum SPL: 129dB / 136dB (Peak) Power rating RMS: 1000 Watts Power rating MAX: 1800 Watts LF Driver: 15” Woofer, 4” VC...
- Page 10 KXL18AS KXL218AS / KXL318AS 120V AC60Hz Rear panel features KXL318AS 120V AC60Hz 1. Sensitivity: Adjust the sensitivity 0 dB to 10 dB. 2. X-over control: Adjust the full range frequency limit of the sub from 70Hz (fully anti-clockwise) to 120Hz (fully clockwise).

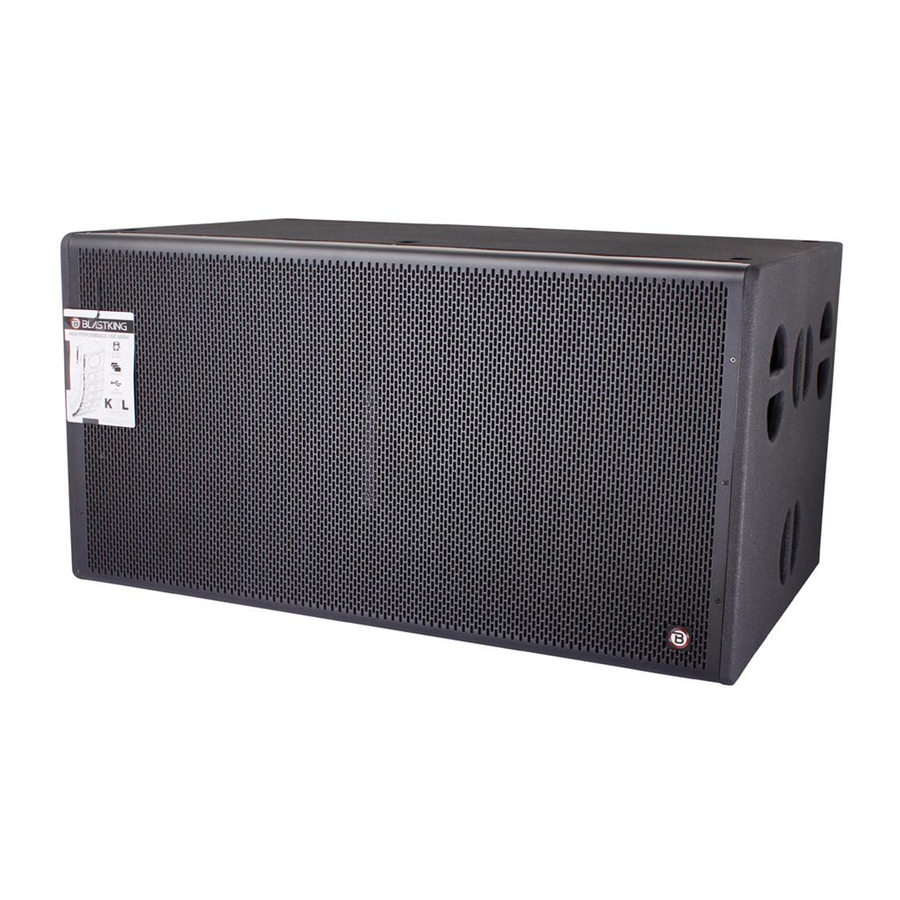

- Page 11 Technical Information Model KXL218AS KXL318AS Type: 2x18” Powered 3x18” Powered Hi-Performance Hi-Performance Subwoofer Subwoofer Frequency response (+-3 dB): 40Hz-100Hz Frequency range (-10dB): 35Hz-100Hz Maximum SPL: 131dB / 138dB (Peak) 132dB / 139dB (Peak) Power rating RMS: 2000 Watts 3000 Watts...
- Page 12 2980 NW 74th Ave. Miami, FL 33122 Phone: (305) 591-8930...
