Summary of Contents for BlastKing KXDII Series

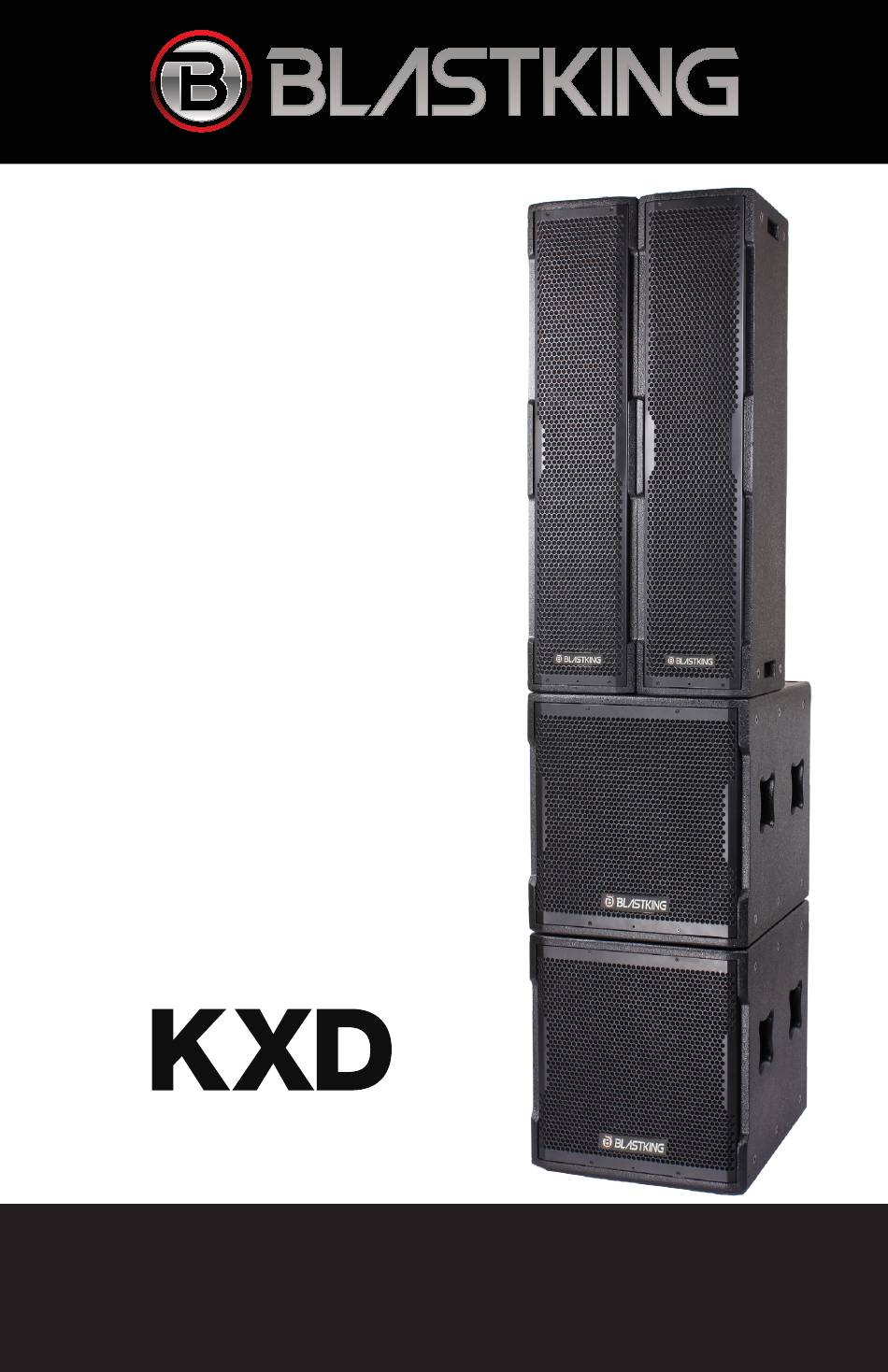

- Page 1 Owner’s Manual KXDIITPC / KXDIITPS series blastking.com...
- Page 2 Purchased at: Date of purchase: All other BlastKing® products purchased in the USA are protected under the regular manufacturer’s one year warranty. This warranty is intended to protect customers from any and all manufacturer defects from one year of purchase. The product will be replaced or repaired at the manufacturer’s discretion upon receipt of the warranted unit along with a...
-
Page 3: Important Safety Precautions And Explanation Of Symbols
11. The appliance coupler is the AC mains disconnect and should remain readily operable after installation. 12. Use only attachments/accessories specified by Blastking, USA. 13. Use only with hardware, brackets, and components sold with the apparatus or by Blastking, USA. 14. Unplug the apparatus during lightning storms or when unused for long periods of time. -
Page 4: Installation
Introduction Designed and engineered to provide power and precision sound, the New KXDII Series will make you stand out from the crowd and take your performance to the next level. With a sleek new look and the technology integrated, the KXDII Series is the ideal choice for all sound reinforcement applications. - Page 5 KXDIITPC Rear panel features Power indicator This will illuminate when the unit is on Signal indicator This will illuminate when signal is on Limit indicator This will illuminate just before clip and/or distortion Front LED switch Press in for LED on, and out for LED off...
- Page 6 KXDIITPS Rear panel features Front LED switch Press in for LED on, and out for LED off Left input Use with XLR or 1/4” male Right input Use with XLR or 1/4” male Left thru Signal out, left Right thru Signal out, right Volume control Master volume control...
- Page 7 Technical Information Model KXDIITPC KXDIITPS Type: Active Speaker Tower 18” Active Subwoofer Frequency response (-3 dB): 65Hz-20KHz 45Hz-100Hz Frequency range (-10dB): 55Hz-20KHz 33Hz-130Hz Maximum SPL peak: 138dB 137dB Power handling: 800 Watts 1200 Watts Low frequency transducer: 4x8” 18”...
- Page 8 KXDIITPC Dimensions 27.95” 710 mm 17” 17.51” 432 mm 445 mm Room Acoustics KXDIITPC Horizontal coverage angle: 82° Vertical coverage angle: 88° KXDIITPS Dimensions 22.24” 565 mm 20.47” 23.62” 520 mm 600 mm...
-
Page 9: Wiring Diagram

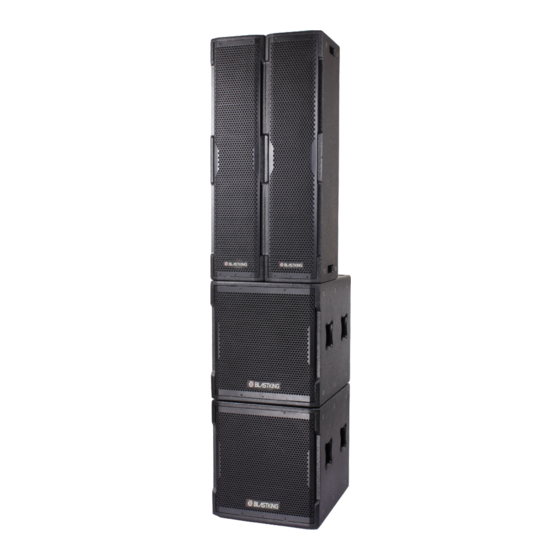

KXDIITP Wiring Diagram 100-240 ~100-240V 50/60Hz ~100-240V 50/60Hz SERIAL NUMBER SERIAL NUMBER OF FIRE Engineered in USA Engineered in USA CAUTION: CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT TO PREVENT ELECTRIC SHOCK DO NOT REMOVE TOP OR BOTTOM COVERS. - Page 10 Tower of Power 4000 Watts of Pure Power KXDIITP ACTIVE SPEAKER TOWER SYSTEM Package includes (2) KXDIITPC - Active Speaker Tower (2) KXDIITPS - 18” Active Subwoofer Side and back brackets series...
- Page 11 12” ACTIVE LOUDSPEAKER 1200 WATTS 12” PASSIVE LOUDSPEAKER 1400 WATTS 15” ACTIVE LOUDSPEAKER 1200 WATTS 15” PASSIVE LOUDSPEAKER 1600 WATTS 18” ACTIVE SUBWOOFER 1200 WATTS 18” PASSIVE SUBWOOFER 1600 WATTS series...
- Page 12 2980 NW 74th Ave. Miami, FL 33122 Phone: (305) 591-8930...
