BANQUET TROLLEYS (ELECTRICAL – INDUSTRIAL TYPE)
OBA 14018
OBAC 14018
MANUFACTURER : OZTIRYAKILER MADENI ESYA SAN. VE TIC A.S.
PRODUCTION SITE : Cumhuriyet Mahallesi Hadımköy Yolu Cad. No :8
İstanbul / TURKEY
Our website:
www.oztiryakiler.com.tr
Phone : 0090 212 886 78 00 (8 Hat-Lines)
USER'S MANUAL
OBA 70182
OBAC 70182
OBA 70182 MD
Fax : 0090 212 886 66 29
E-mail: export@oztiryakiler.com.tr
OBA 70130
Büyükçekmece
1/13
Advertisement
Table of Contents
Related Manuals for OZTI OBAC 70182
Summary of Contents for OZTI OBAC 70182
- Page 1 BANQUET TROLLEYS (ELECTRICAL – INDUSTRIAL TYPE) USER’S MANUAL OBA 14018 OBA 70182 OBA 70130 OBAC 14018 OBAC 70182 OBA 70182 MD MANUFACTURER : OZTIRYAKILER MADENI ESYA SAN. VE TIC A.S. PRODUCTION SITE : Cumhuriyet Mahallesi Hadımköy Yolu Cad. No :8 Büyükçekmece...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NR. TOPICS COVER PAGE TABLE OF CONTENTS INTRODUCTION TECHNICAL DATA ELECTRICAL CIRCUIT DIAGRAM WARNING SIGNS SAFETY DETAILS TRANSPORTING, MOVING AND INSTALLATION INTRODUCTION OF THE APPLIANCES CONTROL BOARDS, OPERATION OF THE DEVICE (1) OPERATION OF THE DEVICE (2) CLEAN-UP AND MAINTENANCE TERMS OF GUARANTEE CAUTION... -
Page 3: Introduction
INTRODUCTION Dear User, Thank you for purchasing our device and for your reliance upon our company. Our devices have been used within our customers kitchen, your kitchen in 100 countries. Our devices are produced in compliance with international standards. Important notice: Please read or ensure that the users read this user’s manual in order to achieve the desired performance in line with your expectations and to use your device for long years. -
Page 4: Technical Data
TECHNICAL DATA OBA 70182 YOUR DEVICE'S TYPE OBA 14018 OBA 70182 MD OBA 70130 OBAC 14018 (FERMENTATION) OBA 70130 OBAC 70182 MAIN DIMENSIONS (mm) 1517X910X1816 790X910X1816 827X910X1132 TOTAL ELECTRIC POWER (kW) 220 – 240 V AC NPE~ / 220 – 240 V AC NPE~ / 220 –... -
Page 5: Electrical Circuit Diagram
ELECTRICAL CIRCUIT DIAGRAM(BANQUET TROLLEY) 5/13... -
Page 6: Warning Signs
WARNING SIGNS POWER NETWORK GROUNDING GROUNDING OVERHEAT POWER SUPPLY CONNECTION: MONOPHASE VOLTAGE 220-240 V GROUNDED FREQUENCY : 50-60 Hz 6/13... -
Page 7: Safety Details
SAFETY DETAILS Any kind of flammable solid and liquid material (cloths, alcohol and derivatives, petrochemical products, wooden and plastic materials, cutting blocks, curtains etc.) should never be held near the device. Never leave the device under direct sunlight. It should be located at least 40 cm. -
Page 8: Transporting, Moving And Installation
TRANSPORTING, MOVING AND INSTALLATION Heated unıts are be delivered as a standard in wooden cases, reinforced by EPS block, wrapped with stretch film and air bubble protective packing, and wrapped over again with a second layer of stretch film The device may be moved with manpower. Do not hit or drop the device when moving. -
Page 9: Introduction Of The Appliances

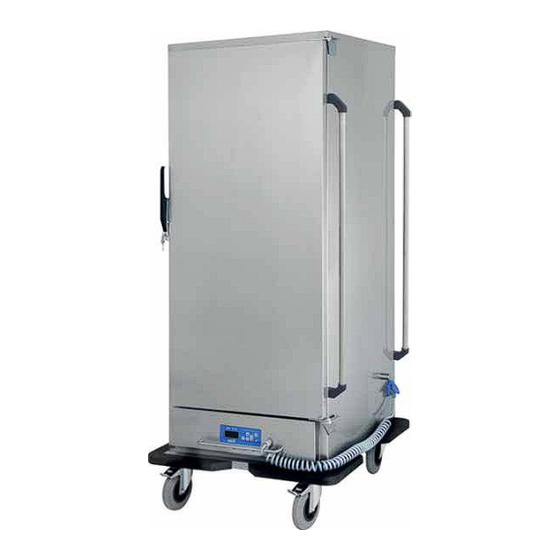

INTRODUCTION OF THE APPLIANCES handle rails Door lock water container Timer (for MD models) Control panel castor with brake 9/13... -
Page 10: Operation Of The Device
CONTROL BOARDS OPERATION OF THE DEVICE (1) Banquet trolley is used in kitchens of restaurants, fast food stands, canteens, hospitals in order to keep foods warm and ready for service. Before initial use of the device, the outer surface should be wiped with a cloth soaked in warm water and soap. - Page 11 OPERATION OF THE DEVICE (2) CAUTION! The device should move just on smooth surfaces! CAUTION! : The device should be installed and operated as described in this user’s manual. If any failure is encountered please contact our nearest authorized service dealer. WHEN THE DEVICE HAS A FAILURE ONLY AUTHORIZED ……………………...
-
Page 12: Clean-Up And Maintenance
CLEAN-UP AND MAINTENANCE After using device, disconnect your device from power supply, by unplugging it or switching it off, before carrying out periodical clean-up. Clean your device with liquid dishwashing detergent and a piece of cloth or sponge soaked in warm water. Then in order to remove detergent residuals rinse it with a piece of cloth soaked in clear and warm water. -
Page 13: Terms Of Guarantee
TERMS OF GUARANTEE 1- Documents without sales date, factory and sales company approval on, are not valid. In order to benefit from the guarantee, guarantee document should be presented. 2- If the device is installed and operated following the instructions in the installation, maintenance and user's manual, it is warranted for failures resulting from failures resulting from workmanship and material failures.
